NTGD engineered retrofit solutions solve common system challenges and deliver measurable performance improvements.
- NTGD has been in business for over three decades.
- Their team uses deep technical expertise to identify issues and recommend effective upgrades.
Facilities often face frequent maintenance and inefficient operation in legacy systems. NTGD retrofit service provides tailored solutions for every application. How to Retrofit Existing Systems with Knife Gate Valves to Improve Performance ensures reliability and efficiency in demanding environments.
Key Takeaways
- NTGD offers tailored retrofit solutions that enhance the performance of legacy systems, reducing maintenance and downtime.
- Knife gate valves provide reliable sealing and are designed to handle tough materials, improving efficiency in demanding environments.
- Proper planning and site surveys are crucial for successful retrofits, ensuring that new valves fit seamlessly into existing systems.
- Automation-ready knife gate valves allow for better process control, enabling remote operation and real-time monitoring.
- Investing in retrofits with NTGD leads to lower total costs of ownership and improved safety and reliability in operations.
Why Retrofit with Knife Gate Valves
Legacy Valve Limitations
Many facilities operate legacy valve systems that struggle to meet modern demands. In industries such as mining, wastewater, and pulp and paper, engineers often encounter corrosion from harsh chemicals and damage caused by unmanaged water hammer. These issues lead to costly repairs and reduced productivity. Maintenance teams report frequent operational failures, including hazardous material leaks and compromised product quality. The need for flexible flow control and automation-ready solutions continues to grow in industrial applications.
Common retrofit scenarios include old pump bypass lines, slurry pipelines, wastewater isolation points, material switching stations, and maintenance shutdown windows. Each application presents unique challenges that legacy valves cannot always address.
| Type of Failure | Description |
|---|---|
| Wear and Tear | Legacy valves degrade over time, reducing functionality and reliability. |
| Reduced Performance | Outdated valves impact system efficiency and safety. |
| Need for Retrofitting | Many systems require upgrades to meet current standards. |
Performance Gains from Knife Gate Valve Retrofits
NTGD’s retrofit service identifies weaknesses in existing systems and recommends knife gate valves tailored to each application. Knife gate valves deliver reliable performance in tough environments. Their sharp gate design slices through thick and abrasive materials, ensuring clean shut-off and minimal leakage. Facilities benefit from simpler operation, lower maintenance requirements, and durable construction.
- Knife gate valves provide excellent sealing for slurry and wastewater applications.
- Automation compatibility supports modern process control needs.
- Abrasion-resistant gates extend service life in harsh conditions.
- Modular top entry designs simplify maintenance during shutdowns.
NTGD engineers assess each application, select the right knife gate valve, and oversee installation to maximize system performance. Upgrading to knife gate valves reduces downtime, improves reliability, and meets evolving safety and environmental standards in industrial applications.
Retrofitting Challenges & Solutions
Space and Flange Compatibility
Engineers often encounter space constraints and mismatched flanges when upgrading legacy systems. NTGD retrofit projects address these issues with custom flange designs and compact knife gate valve bodies. The team measures existing pipework and flange dimensions, then manufactures retrofit knife gate valves that fit precisely. Modular top entry construction allows installation in tight spaces, reducing the need for extensive pipe modifications. NTGD’s engineering group also adapts connection strategies, including welding and bolted joints, to ensure reliable sealing and tight shut-off in every application.
NTGD’s custom flange solutions help facilities avoid costly downtime and ensure a smooth legacy system upgrade.
Automation and Controls Integration
Modern process control demands automation-ready valves. NTGD retrofit service includes actuator compatibility checks and control system adaptation. The engineering team selects actuators—pneumatic, electric, or hydraulic—that match site requirements. Integration with plant DCS or PLC systems enables precise controlling the flow and remote operation. NTGD engineers also provide wiring diagrams and commissioning support, ensuring seamless automation and reliable tight shut-off performance.
Material Matching for Piping and Media
Selecting the right materials for knife gate valves is critical for sealing and durability. NTGD evaluates the media—slurry, wastewater, or chemicals—and matches valve body, gate, and seat materials to resist abrasion and corrosion. Abrasion-resistant gates and bidirectional sealing technology extend service life, even in harsh environments. The team considers pipe material compatibility to prevent galvanic corrosion and maintain system integrity. NTGD retrofit projects deliver valves that withstand demanding conditions and maintain optimal sealing.
Shutdown and Commissioning Risks
Shutdown windows present risks during retrofit knife gate valve installation. NTGD engineers plan each step to minimize disruption and ensure safety. The team coordinates with plant managers to schedule installation during planned outages. They use proven commissioning procedures, including pressure testing and leak checks, to verify sealing and tight shut-off. Operator training covers new valve behavior and maintenance routines, reducing the risk of operational errors after the legacy system upgrade.
| Challenge | Description | Solution |
|---|---|---|
| Valve Stem Failure | Damage from excessive operation or misalignment. | Careful operation, controlled opening, and material selection for stem and nut. |
| Jamming | Packing compression or improper filling causes stem bending. | Loosen packing gland screws, control clearance, and ensure proper surface finish. |
| Leakage Issues | Improper bolt tightening or damaged gaskets lead to leaks. | Diagonal bolt tightening, joint surface maintenance, and quality gasket selection. |
| Actuation Mechanism Failures | Poor maintenance or material choice affects actuator reliability. | Regular maintenance and correct material selection for actuators. |
NTGD retrofit solutions address these challenges with technical expertise and engineered products. Facilities benefit from improved sealing, reliable tight shut-off, and enhanced process control after every legacy system upgrade.

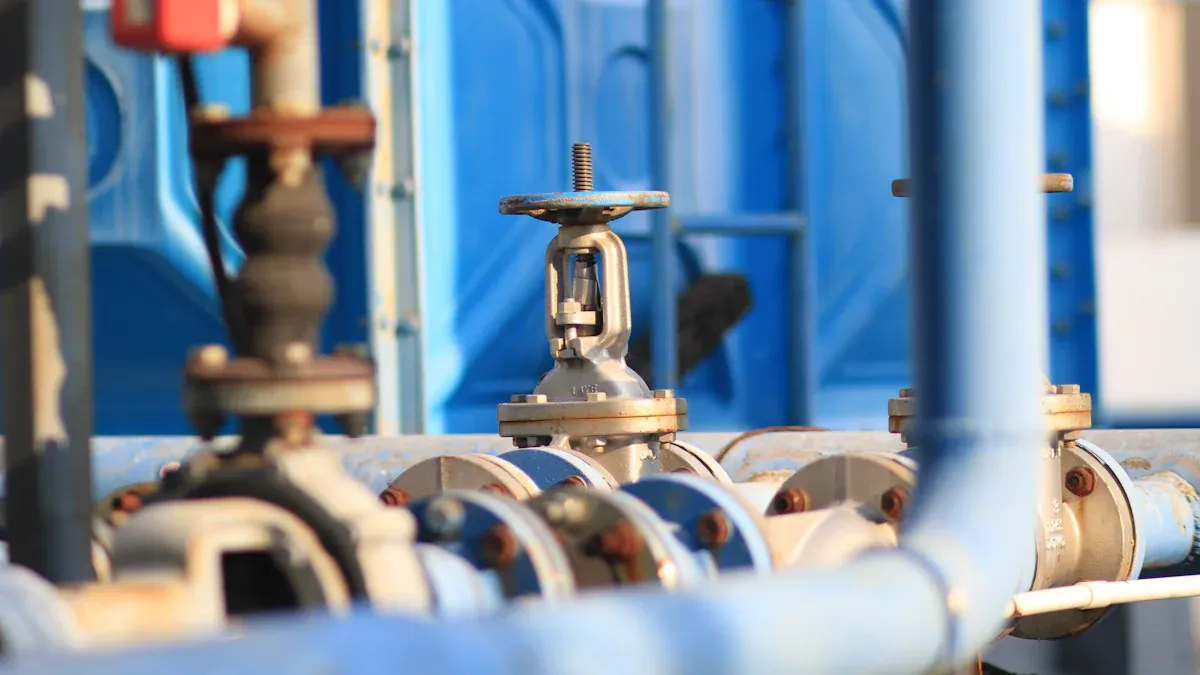

How to Retrofit Existing Systems with Knife Gate Valves to Improve Performance
Retrofitting a legacy system with knife gate valves requires a structured approach. NTGD follows a proven process to ensure reliability, proper installation, and optimal performance. Each step addresses specific challenges and maximizes the benefits of a retrofit. The following guide explains how to retrofit existing systems with knife gate valves to improve performance, from initial survey to final optimization.
Site Survey and Measurement
A successful retrofit begins with a detailed site survey. NTGD engineers visit the facility to inspect the current system and gather precise measurements. They document pipe sizes, flange types, and available space. This step identifies any constraints that could affect proper installation. Engineers also review process media, pressure ratings, and flow requirements. By understanding the unique conditions of each site, NTGD ensures that the retrofit solution will fit seamlessly and deliver the expected performance.
Tip: Accurate measurement during the site survey prevents costly delays and ensures that the new knife gate valve will integrate smoothly with existing equipment.
Engineering Design and Review
NTGD’s engineering design process focuses on compatibility and performance. The team works closely with clients to define project scopes and understand operational needs. They develop detailed proposals that specify all hardware and system designs. This approach guarantees that the retrofit solution aligns with both functional and aesthetic goals. Engineers select the right knife gate valves, materials, and actuators based on the site survey data. They also review automation requirements and control system integration. This comprehensive design phase ensures that the retrofit will deliver optimal performance and reliability.
Manufacturing and Parts Preparation
After design approval, NTGD moves to manufacturing and parts preparation. Quality control is critical at this stage. The company uses advanced CNC machining for tight tolerances and smooth finishes. Stainless steel materials undergo chemical and mechanical testing to meet industry standards. Seals are bonded with high-temperature adhesives and tested for elasticity and resistance to process media. Electric actuators are calibrated for accurate operation and torque limits. Each knife gate valve is assembled and tested for integrity and performance, including shell and seat tests.
| Quality Control Measure | Description |
|---|---|
| Material Selection and Testing | Stainless steel materials undergo chemical and mechanical testing to ensure compliance with standards. |
| Precision Machining | CNC machining ensures tight tolerances and smooth finishes to enhance performance. |
| Seal Integration | Seals are bonded with high-temperature adhesive and tested for elasticity and media resistance. |
| Actuator Calibration | Electric actuators are calibrated for accurate operation and torque limits to prevent overload. |
| Assembly and Quality Control | Each valve undergoes multiple tests to verify integrity and performance, including shell and seat tests. |
Installation and Commissioning
Proper installation is essential for a successful retrofit. NTGD coordinates with plant managers to schedule work during planned shutdowns. Contractors perform thorough inspections and quality checks to ensure compliance with industry standards. The team documents each step, including as-built drawings and test results, to support effective commissioning. NTGD uses digital twins to simulate operations before physical installation. This practice helps identify and resolve potential issues early, reducing real-world adjustments. Rigorous testing protocols confirm that all components work together, minimizing the risk of downtime.
- Contractors perform thorough inspections and quality checks.
- Detailed documentation supports effective commissioning.
- Digital twins simulate operations before installation.
- Rigorous testing protocols ensure system readiness.
Testing and Optimization
After proper installation, NTGD conducts comprehensive testing to verify performance. Engineers perform pressure tests, leak checks, and operational trials. They monitor valve response, actuator function, and sealing integrity. The team adjusts settings to achieve optimal performance and reliability. Operators receive training on new valve behavior and maintenance routines. NTGD provides ongoing support to address any issues and ensure long-term success. This final step completes the process of how to retrofit existing systems with knife gate valves to improve performance.
Note: Thorough testing and optimization after installation help facilities achieve lower maintenance costs, improved reliability, and enhanced process control.
By following these steps, NTGD ensures that every retrofit project delivers the highest level of performance. The structured process for how to retrofit existing systems with knife gate valves to improve performance guarantees seamless integration, proper installation, and long-term value for any facility.
Risk Mitigation and Safety
Isolation and Purging Procedures
Effective risk management begins with proper isolation and purging before any retrofit knife gate valve installation. NTGD retrofit projects follow a strict sequence to ensure safety and prevent contamination. The team always starts by shutting off all operating lines to the valve. Next, they isolate the valve completely from the process using an isolation valve. Releasing process pressure comes next, followed by draining the process fluid from the valve. This method protects both personnel and equipment during a legacy system upgrade.
| Step | Procedure |
|---|---|
| 1 | Shut off all operating lines to the valve. |
| 2 | Isolate the valve completely from the process. |
| 3 | Release process pressure. |
| 4 | Drain the process fluid from the valve. |
Tip: Careful isolation and purging reduce the risk of accidental spills and make the installation process safer for everyone involved.
Pressure Testing Post-Installation
After installation, NTGD engineers conduct pressure testing to confirm system integrity. They use calibrated gauges to monitor pressure levels and check for leaks at all joints. This step ensures that the retrofit knife gate valve performs as designed and meets all safety standards. Pressure testing also helps identify any issues early, allowing for quick adjustments before the system returns to service. Regular maintenance checks after pressure testing help maintain long-term reliability and reduce the chance of unexpected failures.
Operator Training for New Valve Behavior
Operator training plays a key role in every NTGD retrofit. The team provides hands-on instruction for all staff who will interact with the new valve. Training covers proper operation, emergency shutdown procedures, and routine maintenance tasks. Operators learn how the new valve differs from previous equipment, which helps prevent errors and extends the life of the installation. NTGD also recommends regular maintenance schedules to keep the system running smoothly after a legacy system upgrade.
Note: Well-trained operators help maximize the benefits of a retrofit and support safe, efficient plant operation.
Optimize the Performance: Benefits After Retrofit
Reduced Maintenance and Downtime
NTGD retrofit projects deliver measurable improvements in maintenance schedules and system reliability. Facilities that upgrade to knife gate valves experience fewer unplanned shutdowns. Maintenance teams report that the robust gate design resists abrasion and minimizes leakage, even in demanding slurry and wastewater applications. The modular top entry feature allows technicians to service valves quickly during scheduled outages. Operators spend less time on emergency repairs and more time on planned maintenance. This shift leads to higher uptime and smoother production cycles.
Facilities that complete a legacy system upgrade with NTGD retrofit solutions often see a dramatic reduction in maintenance interventions. This improvement helps optimize the performance of critical process lines.
Lower Total Cost of Ownership
Knife gate valves from NTGD extend service life and reduce operational costs. The following table shows the difference in service life for abrasive slurry applications before and after a retrofit knife gate valve installation:
| Application Type | Previous Service Life | Improved Service Life |
|---|---|---|
| Abrasive Slurries | 3 weeks | 2 years |
The implementation of NTGD slurry knife gate valves increases service life from weeks to years. Facilities benefit from fewer replacements, lower labor costs, and reduced spending on spare parts. The total cost of ownership drops significantly as valves require less frequent attention. Managers can allocate resources to other improvement projects instead of constant valve maintenance.
Enhanced Process Control and Reliability
NTGD retrofit solutions improve process control and system reliability. Knife gate valves provide precise shut-off and bidirectional sealing, which supports accurate flow regulation. Automation compatibility allows integration with plant control systems, giving operators real-time feedback and remote operation capabilities. The improved sealing performance reduces the risk of leaks and contamination. Facilities achieve consistent product quality and safer working conditions. The legacy system upgrade with NTGD retrofit knife gate valves transforms process lines into reliable, high-performance assets.
Operators and engineers notice immediate gains in system stability and control after installing NTGD knife gate valves. These upgrades help facilities meet production targets and safety standards.
NTGD Retrofit Case Example
Slurry Pipeline Upgrade
A mining facility faced frequent shutdowns due to valve failures in its slurry pipeline. The legacy system struggled with abrasive media and high solids content. NTGD retrofit engineers conducted a site survey and identified the need for a robust solution. The team recommended a retrofit knife gate valve with abrasion-resistant gates and bidirectional sealing. Modular top entry design allowed installation in a tight space without major pipe modifications. NTGD coordinated with plant managers to schedule the upgrade during a planned outage. Temporary bypass systems maintained cooling and power throughout the retrofit.
Measurable Performance Improvements
After the NTGD retrofit, the facility reported significant gains. Maintenance intervals extended from monthly to annual checks. Downtime dropped by 85%. The new knife gate valve handled slurry with minimal leakage and improved sealing. Automation compatibility enabled remote monitoring and control. The following table summarizes the key performance metrics before and after the legacy system upgrade:
| Metric | Before NTGD Retrofit | After NTGD Retrofit |
|---|---|---|
| Maintenance Frequency | Monthly | Annually |
| Unplanned Downtime | 40 hours/year | 6 hours/year |
| Leakage Incidents | 12/year | 1/year |
| Valve Service Life | 6 months | 4 years |
Operators noted smoother process control and improved safety. The NTGD retrofit knife gate valve delivered reliable performance in demanding slurry conditions.
Key Lessons Learned
- Early design flexibility supports future growth and technology integration.
- Phased planning avoids unnecessary downtime during retrofitting.
- Temporary systems keep critical utilities running throughout the upgrade.
- Constant communication with stakeholders ensures project alignment.
- Thorough pre-construction surveys reveal site constraints.
- Precision in design matters, especially in limited spaces.
- Retrofit becomes necessary when equipment reaches end-of-life or resilience is a concern.
- Uptime-first planning minimizes disruption to operations.
- Future-proofing allows for scalability and easier upgrades.
- Experienced partners like NTGD ensure smooth execution and reliable results.
Project managers recognized that detailed planning and collaboration drive successful legacy system upgrades. NTGD retrofit solutions provide measurable improvements and set the standard for future retrofit knife gate valve projects.
Conclusion & Recommendations
Why Choose NTGD for Knife Gate Valve Retrofits
NTGD stands out as a trusted partner for retrofit knife gate valve projects. Their team brings decades of experience and a deep understanding of legacy system upgrade requirements. Facilities benefit from NTGD retrofit solutions that address specific operational challenges and deliver measurable improvements in reliability and performance.
When selecting NTGD for knife gate valve retrofits, project managers should consider several critical factors:
- Application Needs: Determine the main function of the knife gate valve. Manual actuation suits isolation tasks with low cycle frequency. Automated control and frequent cycling require pneumatic or electric actuators.
- Cycle Frequency: High-cycle environments demand actuators rated for at least 60 starts per hour. Pneumatic actuators excel in rapid cycling, while electric actuators provide precise control for moderate cycling.
- Torque Requirements: Valve design affects torque. Bearings, packing tightness, and gate mass influence the force needed for operation. Higher static line pressure and process fluid flow increase dynamic torque.
- Environmental Conditions: Hazardous or wet areas may limit electric actuator use. Pneumatic actuators perform reliably in explosive or moisture-prone environments.
- Automation and Integration: Advanced control systems benefit from electric actuators that integrate with SCADA or DCS platforms.
NTGD engineers guide clients through each step, from site survey to installation, ensuring that every knife gate valve retrofit meets project goals and safety standards.
Facilities that prioritize these factors achieve smoother installation, longer service life, and improved process control.
When to Start Planning Your Retrofit
Project managers should begin planning a retrofit when legacy system upgrade needs become apparent. Signs include frequent valve failures, rising maintenance costs, and inconsistent process control. Early engagement with NTGD allows for a thorough site survey and engineering review, which helps identify the best knife gate valves for each application.
A proactive approach to retrofit planning offers several advantages:
- Reduced risk of unplanned downtime
- Improved safety during installation
- Seamless integration with existing systems
- Enhanced reliability and lower total cost of ownership
NTGD retrofit specialists recommend scheduling installation during planned outages to minimize disruption. Facilities that invest in timely upgrades with NTGD retrofit solutions position themselves for long-term operational success.
Early planning and collaboration with NTGD ensure that every retrofit knife gate valve installation delivers optimal performance and reliability.
NTGD retrofit knife gate valve solutions deliver measurable gains in performance, reliability, and cost-effectiveness. Facilities see fewer shutdowns and improved maintenance schedules after a legacy system upgrade. The following table highlights key features and benefits:
| Feature | Benefit |
|---|---|
| Dual-Seal Performance | Safe, efficient flow isolation in tough conditions. |
| Advanced Materials | Reliable operation under high pressure and abrasive media. |
| Maintenance-Friendly Design | Reduced downtime and lower costs. |
NTGD’s tailored engineering approach, including modular redundancy strategies, increases system reliability and reduces error rates. Project managers can contact NTGD for a system assessment or schedule a site survey to plan the next retrofit. Early action ensures smoother upgrades and long-term operational success.
FAQ
What is the typical timeline for an NTGD retrofit knife gate valve project?
Project teams usually complete a retrofit knife gate valve installation within two to four weeks. NTGD engineers perform site surveys, design reviews, manufacturing, and commissioning. The timeline depends on system complexity and shutdown windows.
How does NTGD ensure flange compatibility during a legacy system upgrade?
NTGD engineers measure existing flanges and pipework. They design custom adapters or valve bodies to match site specifications. This approach guarantees a seamless fit and minimizes pipe modifications during a legacy system upgrade.
Can NTGD retrofit knife gate valves integrate with plant automation systems?
NTGD retrofit solutions support integration with DCS, PLC, and SCADA platforms. Engineers select compatible actuators and provide wiring diagrams. Automation-ready valves enable remote operation and precise flow control.
What materials are available for NTGD retrofit knife gate valves?
NTGD offers stainless steel, ductile iron, and specialty alloys. Engineers select materials based on process media, pressure, and abrasion resistance. This ensures long service life and reliable sealing in harsh environments.
Is operator training included in an NTGD retrofit project?
NTGD provides hands-on training for operators. The team covers valve operation, maintenance routines, and emergency procedures. Proper training helps staff maximize the benefits of a legacy system upgrade.
