Knife Gate Valves in Chemical Processing: Corrosion Resistance & Harsh Media Solutions
Corrosive Media Challenges
Chemical processing plants often handle fluids that attack metal surfaces. Concentrated sulfuric acid and organic acids present significant threats to equipment longevity. The following table shows common corrosive chemicals and their impact:
| Type of Corrosive Chemical | Description |
|---|---|
| Concentrated Sulfuric Acid | Used in fertilizers, cleaning agents, and oil refining; highly corrosive to steel surfaces. |
| Organic Acids | Mildly acidic; causes CO2 corrosion in steel, particularly in the presence of chlorides. |
Engineers must select knife gate valves in chemical processing: corrosion resistance & harsh media solutions that match the chemical media. Materials such as stainless steel 304, stainless steel 316, alloy 20, and Hast Alloy C offer strong resistance to corrosion. Nitriding increases surface hardness, extending valve life in aggressive environments.
Abrasive and Slurry Media
Abrasive substances and slurries pose additional challenges. These media can wear down valve sealing surfaces and cause particle build-up. Knife gate valves in chemical processing: corrosion resistance & harsh media solutions must withstand erosion and fouling. Plants in remote locations rely on dependable operation because repairs are difficult. Increased maintenance needs can raise operational costs. The following list highlights the main issues:
- Abrasive nature of slurries causes significant wear.
- Particle build-up complicates valve operation.
- Erosion and corrosion impact valve integrity.
- Fouling hinders production efficiency.
- Maintenance demands increase costs.
Isolation and Safety Demands
Safety remains a top priority in chemical processing. Emergency isolation valves (EIVs) must shut off hazardous flows quickly. Industry standards, such as Factory Mutual Global Class 7400 and CSA International Z21.21, govern valve design and performance. Knife gate valves in chemical processing: corrosion resistance & harsh media solutions meet these standards by providing reliable shutoff for flammable or dangerous fluids. Their robust construction ensures compliance and protects plant personnel. Knife gate valves help facilities manage aggressive fluids and abrasive substances, supporting both safety and operational goals.
Why Knife Gate Valves Excel in Harsh Media
Full-bore Flow Path
Knife gate valves feature a full-bore flow path that allows fluids and solids to pass through without restriction. This design reduces the risk of clogging and wear, especially in chemical processing environments where abrasive and viscous materials are common. The streamlined structure prevents the accumulation of particles, which can block other types of valves. Operators see fewer pressure drops and less downtime because the full-bore opening supports unrestricted flow. In industrial slurry systems, this advantage helps maintain consistent production and reduces maintenance needs.
Knife Edge for Solids and Fibers
The sharp gate plate in knife gate valves cuts through suspended solids and fibers found in chemical slurries. This feature prevents clogging and ensures effective sealing, even when handling high-solid slurries. Ordinary gate valves often struggle with these materials, but knife gate valves maintain reliable operation. The knife edge design makes these valves ideal for processes that involve slurries containing solid particles. Plants that process pulp, paper, or mining waste benefit from this capability.
Tip: Facilities that handle slurries with fibers or solids should consider knife gate valves for improved reliability and reduced maintenance.
Reliable Shutoff Performance
Knife gate valves deliver reliable shutoff performance in high-pressure and high-temperature chemical applications. Manufacturers build these valves for demanding industries, including mining, power, and chemical processing. The robust construction and reinforced components withstand severe conditions. Specialized sealing mechanisms provide tight isolation, minimizing leakage risk. Operators achieve 100% bubble-tight isolation in critical slurry applications, which supports safety and efficiency.
| Feature | Description |
|---|---|
| Rugged Construction | Built with robust materials and reinforced components for high-pressure conditions. |
| Bi-Directional Sealing | Ensures tight sealing in both directions, minimizing leakage risk. |
| Precise Actuation | Equipped with high-quality actuators for optimal control over valve operation. |
| Long Service Life | Durable construction leads to minimal maintenance and long-term reliability. |
Plants that switched to NTGD knife gate valves documented measurable improvements in isolation and zero-leakage. The following table shows the benefits:
| Benefit | Before NTGD | After NTGD |
|---|---|---|
| Valve Failures | 6 per year | 1 per year |
| Maintenance Downtime | 48 hours/year | 8 hours/year |
| Leak Incidents | 5 per year | 0 per year |
| Production Output | 90% of target | 99% of target |
- Achieve reliable shutoff and longer service life in severe slurry applications.
- Provide 100% bubble-tight isolation shut off in critical slurry applications.
The following table summarizes the key design features that enable superior performance in harsh and abrasive media:
| Design Feature | Description |
|---|---|
| Knife Gate (Through) | Made from hardened materials with a sharp edge to cut through solids, ensuring minimal clogging. |
| Valve Body | Constructed from durable materials to withstand high pressures and abrasive media. |
| Sealing Mechanisms | Features specialized seating surfaces and resilient materials for enhanced sealing performance. |
| Actuation Mechanism | Offers various actuation types for precise control of flow regulation. |
| Flanges and Mounting | Designed for secure integration into piping systems, providing stability during operation. |
Knife gate valves excel in harsh media because of their full-bore flow path, knife edge design, and reliable shutoff performance. These features support zero-leakage operation and long-term durability, making them the preferred choice for chemical processing and industrial slurry systems.
NTGD Design Innovations for Corrosion Resistance
Advanced Materials and Coatings
NTGD engineers select advanced materials to ensure knife gate valves perform reliably in chemical processing environments. Stainless steel offers excellent strength and durability, making it suitable for corrosive media. Specialty alloys, such as duplex and super duplex stainless steel, provide exceptional resistance to pitting and stress corrosion cracking. Hastelloy C276 stands out for its ability to withstand reducing acids and chlorides, surpassing duplex materials in extreme conditions. The following table compares the properties of common materials used in NTGD knife gate valves:
| Material | Strength | Durability | Corrosion Resistance |
|---|---|---|---|
| Stainless Steel | Excellent | High | Excellent for corrosive media |
| Cast Iron | Good | Moderate | Suitable for non-corrosive applications |
| Specialty Alloys | Superior | High | Ideal for highly corrosive/high-temperature |
| Hardened Seats | Enhanced | High | Recommended for abrasive media |
| 316 Stainless Steel | High | High | Superior resistance to aggressive chemicals |
Super duplex stainless steel resists pitting and crevice corrosion in aggressive environments. Hastelloy C276 provides strong protection against a wide range of corrosive media, including reducing acids and oxidizing salts. Duplex stainless steel performs well in chloride-containing environments but does not match the resistance of super duplex or Hastelloy in strong acids. NTGD applies specialized coatings, such as tungsten carbide and plasma-sprayed ceramics, to further enhance surface durability.
Note: Selecting the right material and coating extends valve service life and reduces maintenance in high-viscosity slurries.
Enhanced Sealing Technologies
NTGD knife gate valves incorporate advanced sealing technologies to prevent leakage in corrosive applications. Resilient seats, made from EPDM, NRB, or PTFE, provide a soft and flexible seal for low and medium-pressure systems. Metal seats, constructed from stellite or stainless steel, withstand high temperatures and corrosive chemicals. Replaceable seat rings allow operators to quickly swap worn components, ensuring continuous operation. The table below summarizes key sealing technologies:
| Sealing Technology | Description | Application |
|---|---|---|
| Resilient Seats | Soft, flexible seals using EPDM, NRB, PTFE | Low and medium-pressure applications |
| Metal Seats | Stellite or stainless steel for high temperature and corrosion | High-pressure, corrosive environments |
| Replaceable Seat Rings | Quick replacement of worn parts | Minimizes downtime, ensures continuous operation |
Enhanced sealing delivers tight shutoff under high pressure and temperature. Operators experience reduced leakage and product loss, which improves safety and environmental protection. Consistent performance in critical process conditions supports efficient plant operation. Modern sealing technologies also decrease maintenance frequency. Improved seals prevent leaks and wear, leading to fewer inspections and repairs. Regular cleaning of valve seats remains important for optimal sealing and reduced wear. Some NTGD valves use graphene-reinforced seals to further boost reliability.
- Benefits of enhanced sealing technologies:
- Tight sealing under demanding conditions
- Reduced leakage and product loss
- Enhanced safety and environmental protection
- Lower maintenance frequency
Surface Protection Methods
NTGD employs advanced surface protection methods to extend the service life of knife gate valves in harsh chemical environments. Hard-sealed gate valves use corrosion-resistant alloys for maximum durability. Composite hard seals handle black liquor and acidic media, such as sulfuric acid. Tungsten carbide coatings protect valves in catalytic cracking units operating above 400°C. Ultra-hard silicon carbide enhances wear resistance on sealing surfaces. Plasma-sprayed ceramics, including Al₂O₃-TiO₂, provide additional wear protection.
| Method | Application |
|---|---|
| Hard-sealed gate valves | Highly corrosive environments needing corrosion-resistant alloys |
| Composite hard seals | Handling black liquor (NaOH, Na₂S) or acidic media (sulfuric acid) |
| Tungsten carbide coatings | Catalytic cracking units above 400°C |
| Ultra-hard silicon carbide (SiC) | Sealing surfaces for enhanced wear resistance |
| Plasma-sprayed ceramics | Wear resistance in sealing surfaces (Al₂O₃-TiO₂) |
NTGD’s proprietary MgCO3 protective film offers superior corrosion resistance compared to traditional anodized coatings. The MgCO3 layer inhibits corrosion and leaves treated surfaces undamaged after rigorous testing. This film matches the performance of advanced composite coatings while minimizing environmental impact.
- Key advantages of NTGD surface protection:
- Superior corrosion resistance
- Minimal environmental impact
- No visible damage after corrosion tests
Knife gate valves from NTGD combine advanced materials, innovative sealing, and robust surface protection. These features ensure reliable operation in chemical processing plants, even when handling high-viscosity slurries and aggressive chemicals.
Selection Tips for Knife Gate Valves
Material Compatibility
Selecting the right material for knife gate valves in chemical processing ensures long-term reliability and safety. Engineers consider several factors when choosing materials:
- Material compatibility with the process media, especially resistance to corrosion and abrasion.
- Valve size and pressure rating that match pipeline requirements.
- Temperature range of the media, which affects the integrity of materials and seals.
- Installation environment, including space constraints and accessibility for maintenance.
Stainless steel offers excellent corrosion resistance and durability, making it suitable for harsh chemical environments. Carbon steel provides strength for heavy-duty applications but may need protective coatings to prevent corrosion. Alloyed metals deliver tailored resistance to both corrosion and abrasion. The table below compares common materials:
| Material | Properties |
|---|---|
| Stainless Steel | Excellent corrosion resistance, suitable for corrosive applications |
| Brass | Good resistance to corrosion, but less than stainless steel |
| Alloyed Metals | Designed for specific applications, offering tailored resistance to both corrosion and abrasion |
Proper material selection prevents premature valve failure and supports reliable operation in demanding conditions.
Actuation and Installation
Engineers choose actuation types based on control needs and budget. Manual actuators suit simple systems, while automated actuators provide precise control for complex processes. Installation requirements differ between valve designs. Knife gate valves are primarily installed in horizontal pipelines with the stem in a vertical position. Ordinary gate valves allow more flexibility in orientation. The table below highlights installation differences:
| Valve Type | Installation Orientation |
|---|---|
| Knife Gate Valve | Horizontal pipeline, stem vertical |
| Ordinary Gate Valve | Horizontal, vertical, or inclined; stem vertical or inclined |
Selecting the right actuation and installation method ensures smooth operation and easy maintenance.
Maintenance and Lifecycle Costs
Regular maintenance extends the service life of knife gate valves and ensures reliable operation. Technicians inspect valves for wear, corrosion, or damage, focusing on the gate, stem, and sealing elements.
Regular maintenance extends the service life of knife gate valves and ensures reliable operation: Periodically inspect the valve for signs of wear, corrosion, or damage. Pay particular attention to the gate, stem, and sealing elements.
NTGD knife gate valves offer significant savings in maintenance time and costs compared to standard alternatives:
| Aspect | NTGD Knife Gate Valves | Standard Alternatives |
|---|---|---|
| Maintenance Time | 12 minutes | Hours |
| Downtime Reduction | Up to 95% | N/A |
| Annual Maintenance Savings | Up to 60% | N/A |
Routine inspections and timely cleaning help prevent failures and enhance safety. Maintenance planning reduces downtime and lowers operational costs, supporting efficient chemical processing.

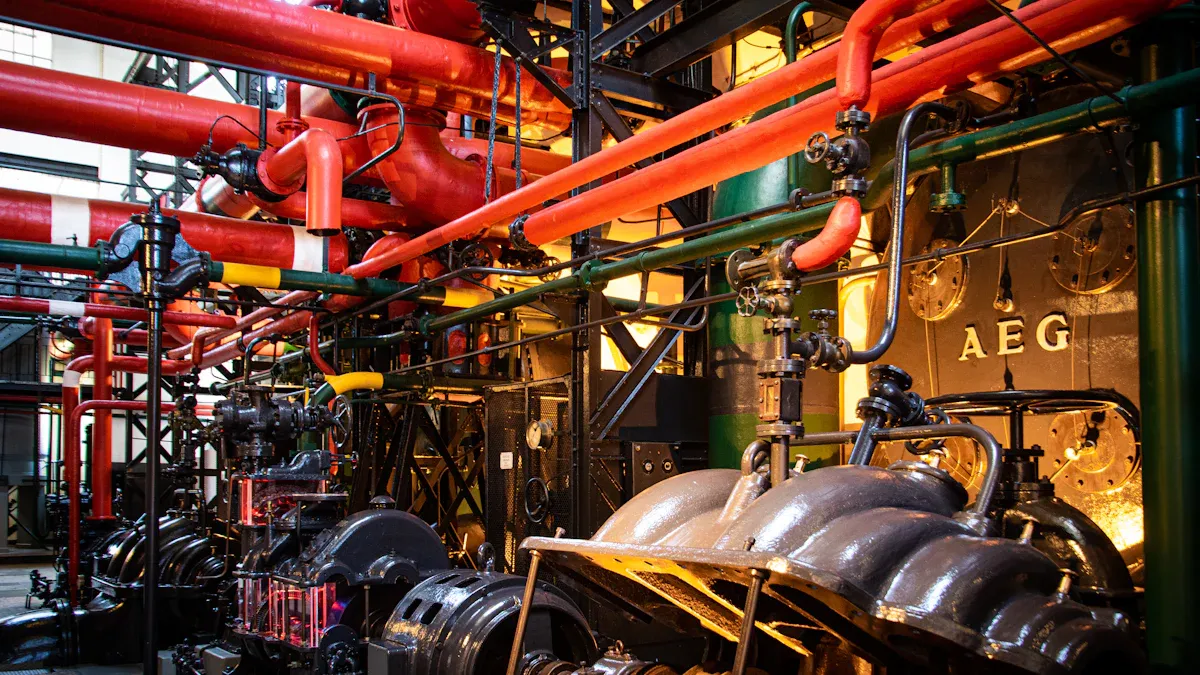

Real-World Success: NTGD in Chemical Plants
Common Failure Issues
Chemical plants often experience recurring problems with conventional knife gate valves. Operators report seal leakage, difficult operation, and actuator failures. These issues arise from wear on seal faces, solid particles blocking the seal, and faults in the actuation mechanism. The following table summarizes the most frequent failure issues and their causes:
| Failure Issue | Cause Analysis | Solution |
|---|---|---|
| Seal Leakage (Internal/External) | Wear or damage to seal faces, solid particles blocking the seal. | Perform pressure tests, repair or replace seals, and clean the valve body regularly. |
| Difficult Operation or Jamming | Solid particles blocking the valve, deformed guide tracks. | Regularly cycle the valve, flush the chamber, and check for deformations in guide tracks. |
| Failure of the Actuation Mechanism | Faults in the actuator, wear in valve stem threads, insufficient pressure. | Inspect and clean the actuation mechanism, check pressure, and consider high-efficiency actuators. |
These problems disrupt chemical-laden wastewater treatment and sludge pumping systems, leading to increased downtime and maintenance costs.
NTGD Solutions in Action
NTGD knife gate valves address these challenges with advanced engineering and material selection. Enhanced sealing performance minimizes fluid loss and lowers the plant’s energy footprint. Operators benefit from longer component life, which reduces the need for frequent replacements. Tighter isolation prevents overuse of chemicals in water and wastewater processes. Cleaning or seat replacement quickly resolves minor leaks caused by worn seats or debris. Upgrading to higher-grade metals and applying specialized coatings mitigate excessive gate wear from abrasive slurries. Plants that switched to EPDM elastomer seats doubled seat life in moderate pH solutions.
NTGD’s approach ensures reliable operation even in the harshest environments. Maintenance teams report easier cleaning and faster seat replacement, which keeps systems running smoothly.
Performance and Cost Benefits
Chemical plants document significant improvements after installing NTGD knife gate valves. Maintenance needs decrease when operators follow NTGD’s installation guidelines. Service life extends, especially in challenging environments with abrasive and high-solids media. The design prevents blockages and wear, enhancing reliability in sludge pumping systems. Plants achieve dependable operation in harsh conditions, reducing downtime and operational costs. The table below highlights key performance improvements:
| Performance Improvement | Description |
|---|---|
| Reduced Maintenance Needs | Lower maintenance requirements after proper installation. |
| Extended Service Life | Longer lifespan in challenging environments. |
| Exceptional Resistance to Wear and Clogging | Prevents blockages and wear, ensuring reliability in abrasive and high-solids media. |
| Reliable Operation in Harsh Environments | Consistent performance in demanding chemical processing applications. |
Operators see measurable cost savings and improved plant efficiency. NTGD knife gate valves deliver robust solutions for chemical-laden wastewater and sludge pumping systems, supporting safe and efficient chemical processing.
NTGD knife gate valves stand out in chemical processing because of three key strengths:
- Advanced materials resist corrosion and extend valve life.
- Innovative design features handle abrasive and harsh media with ease.
- Proven reliability reduces downtime and boosts plant safety.
Choosing the right valve protects equipment and ensures safe operation. NTGD offers expert support for engineers who need custom solutions.
FAQ
What makes NTGD knife gate valves suitable for chemical processing?
NTGD knife gate valves use advanced materials and coatings. These features resist corrosion and abrasion. Engineers select them for harsh chemical environments. Plants see longer valve life and fewer failures.
How often should operators maintain NTGD knife gate valves?
Operators should inspect valves every six months. Regular cleaning and seat replacement prevent leaks. Maintenance teams report reduced downtime and lower costs with NTGD valves.
Can NTGD knife gate valves handle high-solids slurries?
Yes. The knife edge design cuts through solids and fibers. Plants processing mining waste or pulp benefit from reliable shutoff and minimal clogging.
Tip: Choose NTGD valves for processes with abrasive or high-solid media to improve reliability.
Which materials are available for NTGD knife gate valves?
| Material | Application |
|---|---|
| Stainless Steel | Corrosive chemicals |
| Duplex/Super Duplex | Chloride-rich environments |
| Hastelloy | Reducing acids and oxidizing salts |
Engineers select materials based on process media and temperature.
