NTGD knife gate valves increased reliability for a gold ore slurry operation in the mining industry, where weekly valve failures once led to costly repairs and frequent shutdowns. After installation of the NTGD knife gate valve, operators reported eight months without repairs, setting a new standard for maintenance intervals and service longevity. Knife gate valves play a critical role in mining slurry transport, tailings handling, and thick slurry discharge, often facing abrasive flows at pressures up to 750 psi. The mining industry demands solutions that minimize leaks and downtime. The Case Study: How NTGD Knife Gate Valves Performed in a Mining Project demonstrates how these solutions improve productivity and reduce total cost of ownership for engineers, procurement managers, and maintenance teams.
Key Takeaways
- NTGD knife gate valves significantly reduce maintenance intervals, extending service life up to 36 months in abrasive slurry environments.
- The valves maintain leak-free operation under high pressures and temperatures, enhancing safety and minimizing environmental risks.
- Automated actuation improves flow control and reduces manual intervention, leading to safer and more efficient operations.
- Customizable designs allow for tailored solutions that meet specific mining conditions, ensuring optimal performance and reliability.
- Implementing NTGD valves can lead to substantial cost savings by decreasing downtime and maintenance-related expenses.
Case Study: How NTGD Knife Gate Valves Performed in a Mining Project
Project location and ore type
The case study: how NTGD knife gate valves performed in a mining project centers on a gold mining operation in a mountainous region of Central Asia. The site processes ore with a high quartz content, which creates a highly abrasive slurry. The operation includes a high-pressure acid leach circuit, where temperatures reach up to 80°C and pressures approach 750 psi. These conditions demand robust solutions for both safety and process reliability.
Pipeline and slurry environment
The pipeline system in this case study: how NTGD knife gate valves performed in a mining project features long runs with varying diameters, lined with wear-resistant materials to handle the aggressive slurry. The slurry contains up to 60% solids by weight, with particle sizes ranging from fine silt to coarse sand. Operators must manage not only abrasion but also the risk of blockages and rapid wear. Sustainable slurry handling practices have become a priority, with the mine adopting advanced dewatering and solids concentration techniques. The engineering team selected equipment based on:
- The need for reliable knife gate valve operation under continuous flow.
- The importance of reducing water and energy consumption.
- The goal of minimizing environmental impact through improved sealing and reduced leakage.
Previous valve challenges
Before the introduction of NTGD knife gate valve solutions, the site faced persistent failures with traditional valves. The main issues included:
- Seal leakage, often caused by improper mounting and the abrasive nature of the slurry.
- Frequent jamming of the gate, especially during thick slurry transport.
- Operational difficulties due to design and material limitations.
| Challenge Description | Impact |
|---|---|
| Handling dense and abrasive tailings | Required high pressure, led to inefficiencies and increased downtime. |
| Failure of traditional valve seals | Caused leaks, environmental risks, and process interruptions. |
| High maintenance costs and downtime | Accounted for up to 50% of operating costs, reducing overall output. |
The case study: how NTGD knife gate valves performed in a mining project highlights how the right solutions can address these real-world problems. NTGD knife gate valve solutions provided superior sealing, robust construction, and easy maintenance, directly targeting the root causes of previous failures. This approach set a new standard for reliability in mining slurry valve applications.
Why Choose NTGD Knife Gate Valve
Selection criteria in mining
Mining engineers and procurement managers face strict requirements when selecting knife gate valves for slurry pipelines. The mining industry demands solutions that minimize downtime and withstand abrasive, high-pressure environments. NTGD knife gate valve stood out for several reasons:
- Minimizes clogging in tough slurry systems.
- Ensures reliable flow control in pipelines with up to 60% solids.
- Offers custom knife gate valves tailored for demanding industrial needs.
- Handles abrasive and corrosive materials, including gold ore slurry with high quartz content.
- Provides bi-directional shutoff capability for critical isolation points.
- Requires low maintenance, reducing operational costs.
- Suitable for various materials, including thick, viscous fluids and tailings.
These factors made NTGD knife gate valves the preferred choice for mining applications, especially where reliability and service life are essential.
Design advantages for slurry
NTGD knife gate valve features a heavy-duty design engineered for superior performance in mining slurry systems. The valve body and gate use abrasion-resistant alloys, which resist seat erosion caused by abrasive media and thermal stress. The sealing system prevents leaks even at pressures up to 750 psi and temperatures reaching 80°C. Custom knife gate valves from NTGD provide isolation and shut-off functions in harsh environments, including high solid concentrations and corrosive fluids. The design mitigates common failure modes:
| Failure Mode | Causes | Solutions |
|---|---|---|
| Seat Erosion | Abrasive media, thermal stress, improper valve sizing | Material upgrades, regular inspections, media compatibility analysis |
| Corrosion | Exposure to corrosive fluids, temperature extremes, poor material choice | Use corrosion-resistant alloys, protective coatings, environmental audits |
| Stem Failure | Excessive operational force, material incompatibility, misalignment | Proper handling techniques, material selection tips, replacement guidelines |
Compared to industry benchmarks, NTGD knife gate valves deliver longer service intervals and lower carbon emissions during servicing. Severe service models last over 800 cycles before maintenance, while standard push-through valves require attention after only 160 cycles. The overall cost of ownership for mining slurry valve solutions has dropped from $100,000 per year for older models to about $14,000 per year with NTGD severe service valves.
Customization and delivery
NTGD offers custom knife gate valves with advanced sealing and material selection for mining slurry applications. The company uses streamlined supply chain management and advanced production planning to meet project deadlines. NTGD delivers valves with a service life exceeding 10 years, compared to the industry standard of 3–5 years.
| Customization Options | Delivery Timelines | Comparison to Industry Standards |
|---|---|---|
| Advanced sealing and material selection for mining slurry applications | Streamlined supply chain management and advanced production planning | Superior reliability with a service life of over 10 years compared to 3-5 years for standard valves |
Mining industry clients benefit from solutions that match their specific pipeline conditions, including temperature, pressure, and solid content. NTGD knife gate valve solutions integrate seamlessly with flow control systems, supporting long-term reliability and reduced maintenance.
Installation and Initial Knife Gate Valve Performance
Installation steps
The engineering team at the Central Asia gold mine followed a systematic approach to install NTGD knife gate valve solutions in the slurry pipeline. They prioritized safety and reliability throughout the process. The steps included:
- Select the right location for the knife gate valve, ensuring alignment with pipeline design and flow requirements.
- Prepare the work area by cleaning and organizing all necessary tools and equipment.
- Inspect the knife gate valve for any visible damage or manufacturing defects.
- Confirm the flow direction matches the pipeline system specifications.
- Install the knife gate valve according to NTGD’s installation guidelines, focusing on proper flange alignment and torque settings.
- Connect pneumatic actuators for automated valve solution, verifying actuator compatibility and function.
- Check all fasteners on flange connections for tightness and integrity.
- Manually operate the knife gate valve to confirm smooth opening and closing.
- Inspect the sealing surfaces for leaks or irregularities.
- Conduct a test run under actual slurry flow conditions, monitoring valve performance.
- Document each installation step for future reference and compliance.
- Train site personnel on operation and maintenance procedures, labeling the valve for easy identification.
This methodical installation process ensured that the knife gate valve solutions integrated seamlessly into the mining slurry system, reducing the risk of operational errors and maximizing reliability.
Sealing and actuation results
The initial performance of NTGD knife gate valves demonstrated significant improvements in sealing and actuation. The engineering team observed no leaks during the first eight months of operation, even under pressures reaching 750 psi and slurry temperatures up to 80°C. The abrasion-resistant design maintained integrity despite the high quartz content and 60% solids concentration in the pipeline.
Operators noted that the automated valve solution, equipped with pneumatic actuators, allowed for precise control and rapid response during process changes. The table below summarizes the main installation challenges and the solutions implemented:
| Installation Challenge | Description | Solution Implemented |
|---|---|---|
| Sand Accumulation | Sand buildup impeded valve operation, causing safety risks and inefficiencies. | NTGD knife gate valve solutions featured built-in flushing ports to prevent buildup. |
| Manual Operation Difficulties | Operators struggled to open/close valves due to sand, risking injuries. | Automated actuation and improved design reduced manual intervention. |
| Safety Risks | Accumulated sand made manual operation unsafe. | Continuous flushing and robust sealing improved safety and operational efficiency. |
The NTGD knife gate valve solutions provided consistent valve performance, minimized wear, and extended maintenance intervals. The engineering team documented a reduction in downtime and improved safety for maintenance personnel. These results set a new benchmark for mining slurry valve reliability.
Long-Term Results with Knife Gate Valves
Sealing reliability data

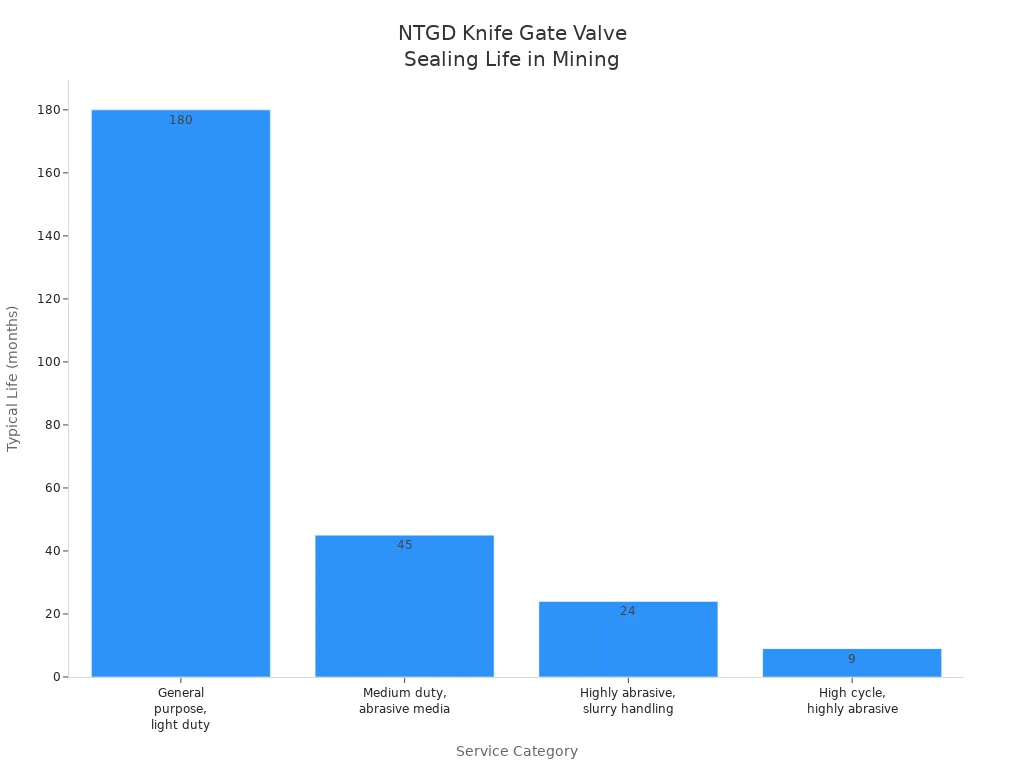

NTGD knife gate valve solutions delivered measurable improvements in sealing reliability for the mining slurry system. The engineering team tracked valve performance across several service categories, including general purpose, medium duty, and highly abrasive slurry handling. The following table summarizes typical service life for NTGD knife gate valve sealing in months:
| Service | Typical Media | Typical Life (months) |
|---|---|---|
| General purpose, light duty | Raw water, sludges, pulp stock | 120-240 |
| Medium duty, abrasive media | Process slurry, chemicals | 30-60 |
| Highly abrasive, slurry handling | Ore, tailings, tar sands pipeline | 12-36 |
| High cycle, highly abrasive | Pneumatic conveying, fly ash | 6-12 |
The gold mine operated in the “highly abrasive, slurry handling” category, where ore and tailings with high quartz content created severe wear conditions. NTGD knife gate valve solutions maintained a leak-free seal for up to 36 months, even under continuous exposure to 60% solids and temperatures reaching 80°C. The robust sealing system prevented product loss and environmental incidents, which had been a recurring problem with previous valves.
Note: The extended sealing life in abrasive slurry applications directly reduced the frequency of unplanned shutdowns and minimized the risk of leaks.
Wear and maintenance intervals
The NTGD knife gate valve demonstrated superior wear resistance in the mining slurry environment. The engineering team observed that the abrasion-resistant alloys used in the valve body and gate significantly slowed down wear rates. In the past, traditional valves required maintenance every two months due to rapid seat erosion and stem failures. With NTGD solutions, maintenance intervals extended to 12–36 months, depending on the specific location and slurry composition.
Operators reported that in-line servicing became easier and safer. The design allowed for quick inspection and replacement of wear parts without removing the valve from the pipeline. This feature proved essential in remote mining locations, where access to spare parts and skilled labor is limited. The reduction in maintenance frequency also lowered the risk of accidental damage during servicing.
The following list highlights the main improvements:
- Maintenance intervals increased from 2 months to up to 36 months.
- In-line servicing reduced the need for full pipeline shutdowns.
- Wear rates dropped due to advanced material selection and optimized flow paths.
- Fewer spare parts were required, lowering inventory costs.
These changes resulted in a more predictable maintenance schedule and improved operational performance for the entire slurry transport system.
Impact on uptime
NTGD knife gate valve solutions had a direct impact on system uptime and operational performance. The robust design minimized unplanned downtime by reducing valve failures and leak incidents. The mining operation saw a dramatic drop in maintenance-related shutdowns, which previously accounted for significant production losses.

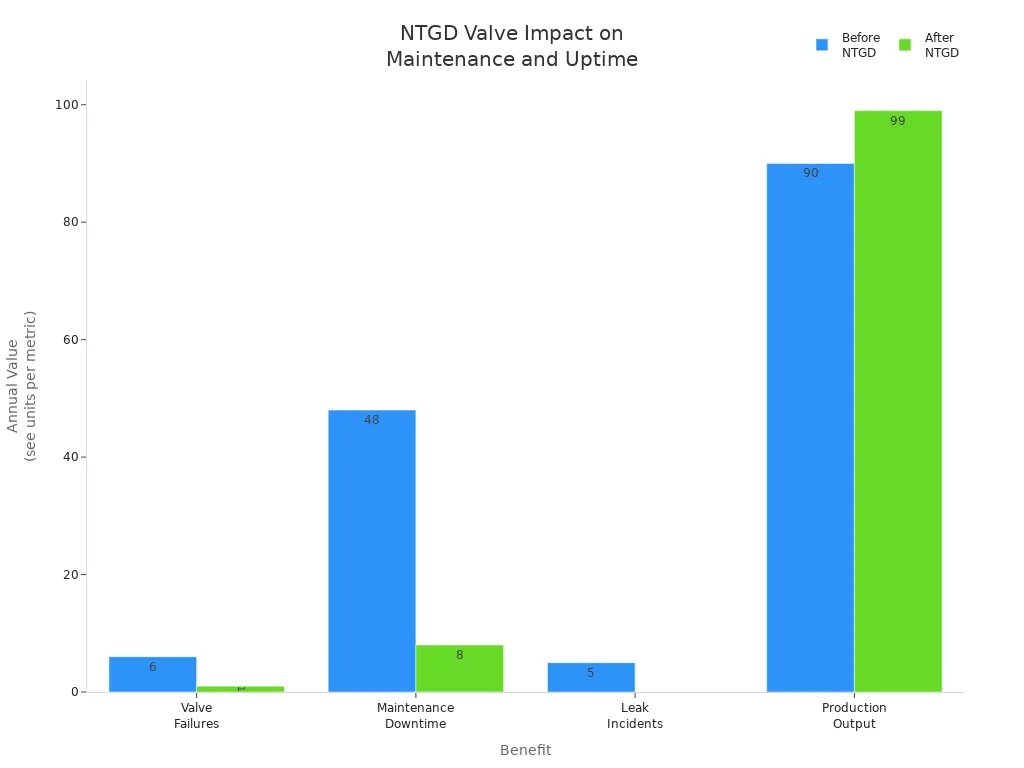

The table below compares key performance indicators before and after the installation of NTGD knife gate valves:
| Benefit | Before NTGD | After NTGD |
|---|---|---|
| Valve Failures | 6 per year | 1 per year |
| Maintenance Downtime | 48 hours/year | 8 hours/year |
| Leak Incidents | 5 per year | 0 per year |
| Production Output | 90% of target | 99% of target |
The NTGD knife gate valve solutions enabled the site to achieve 99% of its production target, up from 90% before the upgrade. Maintenance downtime dropped from 48 hours per year to just 8 hours. Leak incidents, which previously posed safety and environmental risks, were eliminated. The improved operational performance translated into substantial cost savings and higher output for the mining operation.
Tip: Reliable knife gate valves not only protect equipment but also support sustainable mining by reducing waste and maximizing resource utilization.
Client Feedback and Operational Impact
Site engineer comments
Site engineers at the Central Asia gold mine observed a marked improvement in operational efficiency after installing NTGD knife gate valves. They reported that the valves maintained reliable performance during periods of high slurry concentration and elevated temperatures. The engineers noted that the valves operated smoothly even when the pipeline carried 60% solids and temperatures reached 80°C. They highlighted the absence of leaks and the reduction in safety risk for personnel working near the slurry transport system. The engineers also mentioned that the robust sealing design prevented environmental incidents, which had previously disrupted production. One engineer stated, “The NTGD valves have eliminated the need for emergency shutdowns due to seal failures. Our team can now focus on optimizing throughput rather than troubleshooting valve issues.”
Maintenance team insights
The maintenance team shared practical insights about servicing NTGD knife gate valves. They found the valves easier to maintain compared to previous models. The team outlined several routine tasks that help extend valve life and ensure consistent operation:
- Monthly packing adjustments keep the seal tight and prevent leaks.
- Lubrication of the stem and stem nut every three months reduces wear and supports smooth actuation.
- Annual lubrication of the gear operator maintains reliable movement.
- Cycling the valves every six months, especially when not in regular use, prevents sticking and ensures readiness.
- Standard repacking kits simplify maintenance and reduce downtime.
The team appreciated the straightforward access to wear parts and the ability to perform in-line servicing without removing the valve from the pipeline. They emphasized that these practices contributed to longer maintenance intervals and improved system reliability. The maintenance supervisor commented, “Routine servicing is simple, and we no longer face unexpected failures. NTGD valves have set a new standard for reliability in our slurry system.”
Applicability to Other Mining Projects
Suitable ore and slurry types
Mining operations often encounter a wide range of ore and slurry compositions. NTGD knife gate valves have demonstrated strong performance in environments with high abrasion and solid content. The following types of ore and slurry are particularly suitable for these valves:
- Iron ore slurries with high concentrations of hard minerals such as quartz and hematite.
- Slurries containing larger, angular particles that increase abrasion rates.
- Systems operating with elevated solid concentrations, which intensify wear on valve components.
- Pipelines with faster flow rates, where erosion of internal surfaces becomes a significant concern.
Engineers select NTGD valves for pipelines that transport abrasive materials at temperatures up to 80°C and pressures reaching 750 psi. These valves maintain reliable sealing and resist rapid wear, even when handling coarse tailings or thick mineral suspensions.
Tip: Matching valve material and design to the specific slurry composition helps extend service life and reduce maintenance frequency.
Value for EPCs and OEMs
EPC contractors and OEMs benefit from lessons learned in this case study. The project team emphasized careful planning and design during the retrofit of the paste plant. They considered existing infrastructure and ensured compatibility with new valve installations. This approach reduced installation risks and improved long-term reliability.
NTGD knife gate valves support efficient project delivery by offering customization for temperature, pressure, and solid content. EPCs can specify abrasion-resistant alloys and advanced sealing systems to meet site-specific requirements. OEMs integrate these valves into mining slurry systems to achieve predictable maintenance intervals and minimize downtime.
| Project Phase | Key Consideration | NTGD Solution |
|---|---|---|
| Design & Planning | Infrastructure compatibility | Custom sizing and material selection |
| Installation | Safety and reliability | Streamlined installation guidelines |
| Operation | Maintenance predictability | Extended service intervals |
Mining projects that adopt NTGD valves experience fewer shutdowns and improved throughput. EPCs and OEMs gain confidence in system performance, knowing that valve reliability supports overall project success.
NTGD knife gate valves improved reliability in mining slurry systems by extending maintenance intervals and reducing downtime. Operators saw leak-free operation at 80°C and 750 psi, with up to 36 months between servicing. The following table shows how mining teams can use case study results to select valves for different applications:
| Valve Type | Application Area | Key Considerations |
|---|---|---|
| Isolation Valves | Pump Stations | Pressure, Temperature, Solids Percentage |
| Slurry Valves | Grinding | Abrasive Slurry Handling |
| Flotation Valves | Hydrocyclone | Specific Mining Conditions |
| Thickening Valves | Tailings | Performance in Challenging Environments |
Mining professionals should evaluate valve selection based on site conditions and expected wear. Reliable valves increase uptime and support safe, efficient operations. Consider NTGD solutions for future upgrades.
FAQ
How does NTGD knife gate valve handle highly abrasive mining slurry?
NTGD knife gate valve uses abrasion-resistant alloys and advanced sealing. The valve resists wear from quartz-rich slurry at 80°C and 750 psi. Engineers report up to 36 months between maintenance cycles in high-solids environments.
What maintenance tasks extend the life of a mining slurry valve?
Technicians adjust packing monthly, lubricate stems and gear operators, and cycle valves every six months. In-line servicing allows quick inspection and replacement of wear parts. These steps reduce downtime and prevent seal failures.
Can NTGD knife gate valves operate with automated actuation?
NTGD knife gate valves integrate with pneumatic actuators for automated control. Operators achieve precise flow regulation and rapid response during process changes. Automated systems improve safety and reduce manual intervention.
What types of mining slurry systems benefit most from abrasion-resistant knife gate valves?
Ore pipelines with high solid content, tailings transport, and thick slurry discharge see the greatest reliability improvements. NTGD valves perform well in gold, iron, and mineral processing plants with aggressive media.
How does NTGD knife gate valve improve environmental safety in mining?
The robust sealing system prevents leaks and product loss. Engineers note zero leak incidents after installation. Reliable sealing reduces environmental risks and supports sustainable mining operations.
