Selecting the right valve impacts both immediate and future costs in industrial systems. The Cost-Benefit Analysis: Knife Gate Valve vs Alternative Valves in Industrial Systems depends on matching valve type to system requirements. Engineers evaluate not just purchase price but also installation, maintenance, and operational efficiency. Application suitability matters most—media type, pressure, and temperature all influence performance and safety. For example, NTGD Knife Gate Valves handle abrasive slurries, corrosive chemicals, and high-solid-content fluids at pressures up to 2.5 MPa and temperatures to 200°C.
A poor match can cause leaks, downtime, or environmental harm. Engineers consider key factors before choosing:
| Factor | Description |
|---|---|
| Material Compatibility | Ensure the valve’s material is suitable for the media it will handle, considering corrosion resistance. |
| Flow Characteristics | Assess the flow requirements to determine if the valve should be on/off or capable of throttling. |
| End Connections | Select the right type of end connections (threaded, flanged, etc.) that fit your piping system. |
| Operation and Actuation | Decide between manual or automated valves based on operational needs and frequency of use. |
| Compliance & Standards | Verify that the valve meets relevant industry standards and certifications. |
| Maintenance & Service | Consider ease of maintenance and availability of replacement parts and support from the manufacturer. |
Key Takeaways
- Selecting the right valve type is crucial for minimizing costs and ensuring system efficiency. Match the valve to the specific media, pressure, and temperature requirements.
- Initial purchase price is just one part of the cost equation. Consider long-term maintenance and operational costs to avoid unexpected expenses.
- NTGD knife gate valves excel in handling abrasive slurries and fibrous media, making them ideal for mining and wastewater applications. Their design reduces clogging and maintenance needs.
- Lifecycle value is key. Proper application of knife gate valves leads to lower total costs and higher reliability over time.
- Evaluate installation and maintenance costs. NTGD valves offer significant savings due to their lightweight design and quick maintenance processes.
Cost-Benefit Analysis: Knife Gate Valve vs Alternative Valves in Industrial Systems
Initial Cost vs Long-Term Cost
Engineers in the knife edge gate valve market often compare initial purchase price with long-term expenses. The cost-benefit analysis: knife gate valve vs alternative valves in industrial systems begins with upfront costs. NTGD knife edge gate valves usually cost less than ball valves or butterfly valves for large-diameter, low-pressure applications. Their simple design reduces manufacturing expenses. Installation also tends to be easier because knife edge gate valves are lightweight and compact. Workers can fit them into tight spaces without heavy lifting equipment.
However, initial cost does not tell the whole story. Maintenance and repair expenses play a major role in the cost-benefit analysis: knife gate valve vs alternative valves in industrial systems. Knife edge gate valves handle abrasive slurries and fibrous media well, but improper application can increase long-term costs. For example, using a knife edge gate valve in high-pressure steam lines may cause rapid seat wear and frequent leaks. This leads to more downtime and higher maintenance bills.
Tip: Always match valve type to media and operating conditions. Using a knife edge gate valve outside its recommended range can increase total cost over time.
The knife edge gate valve market shows that buyers who focus only on initial price often pay more later. Ball valves and butterfly valves may cost more upfront, but they offer better performance in clean, high-pressure systems. Engineers must consider the full cost-benefit analysis: knife gate valve vs alternative valves in industrial systems before making a decision.
Lifecycle Value in Industrial Systems
Lifecycle value measures how a valve performs over its entire service life. In the knife edge gate valve market, users look at reliability, maintenance frequency, and spare part availability. Knife edge gate valves excel in slurry, wastewater, and pulp applications. Their design allows solids to pass through without clogging. This reduces the risk of unplanned shutdowns.
A practical example highlights the cost-benefit analysis: knife gate valve vs alternative valves in industrial systems. A mining plant uses knife edge gate valves to control tailings flow. The valves operate in abrasive conditions, but their robust seats and blades resist wear. Maintenance crews replace seals and seats during scheduled outages, keeping costs predictable.
In contrast, using a knife edge gate valve in a chemical plant with high-pressure, clean media may shorten its lifespan. Frequent repairs and part replacements increase total cost. The knife edge gate valve market data shows that lifecycle value depends on matching valve type to application. Engineers who select the right valve for the job achieve lower total cost and higher reliability.
| Valve Type | Initial Cost | Maintenance Cost | Typical Application | Lifecycle Value |
|---|---|---|---|---|
| Knife Edge Gate | Low | Moderate | Slurry, wastewater, pulp | High (in correct use) |
| Ball Valve | High | Low | Clean, high-pressure fluids | High |
| Butterfly Valve | Moderate | Low | Large-diameter, low-pressure | Moderate |
| Traditional Gate | Moderate | High | Water, oil | Moderate |
The cost-benefit analysis: knife gate valve vs alternative valves in industrial systems reveals that lifecycle value depends on proper application. The knife edge gate valve market rewards buyers who consider total cost, not just purchase price. Engineers who understand operating conditions and media characteristics make better choices and reduce long-term expenses.

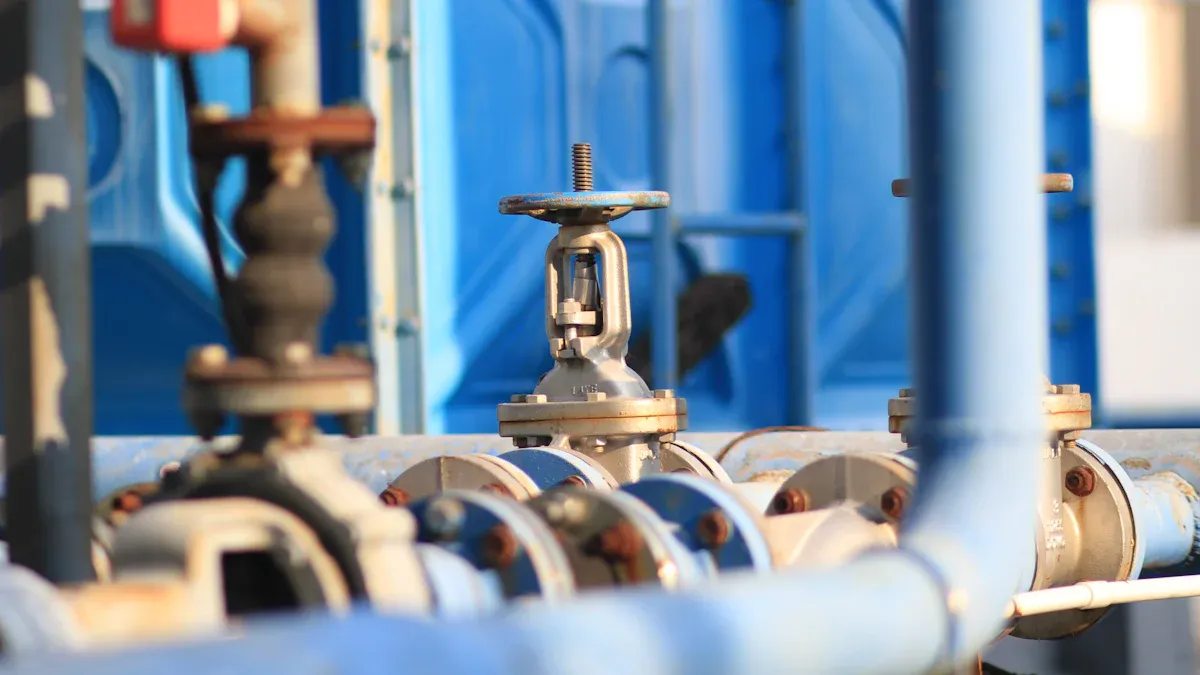

Knife Edge Gate Valve Applications
Handling Slurry and Impurities
Engineers often select a knife edge gate valve for systems that process abrasive, fibrous, or impure media. The sharp-edged gate slices through thick slurries, preventing clogging and maintaining consistent flow. In mining operations, the knife edge gate valve manages rough slurries and solid suspensions, reducing the risk of blockages. Pulp and paper plants rely on this valve to control thick pulp and fibers, ensuring reliable operation even when the media contains large particles. Wastewater treatment facilities use the knife edge gate valve to protect systems from leaks and maintain safe flow control.
The valve’s robust construction features corrosion-resistant alloys and advanced coatings, which provide protection against erosion and chemical attack. Rubber sleeves deliver a bubble-tight seal, even under high pressure. Stainless steel and specialized coatings extend service life, minimizing maintenance needs. Automated monitoring and adherence to global standards support quality control in demanding environments.
- Key advantages of the knife edge gate valve in slurry applications:
- Self-cleaning design reduces maintenance frequency.
- Materials resist wear and corrosion.
- Reliable sealing prevents leaks in abrasive conditions.
| Industry | Application Description |
|---|---|
| Mining | Handling rough slurries and solids. |
| Pulp & Paper | Managing thick pulp and fibers. |
| Wastewater Treatment | Ensuring safe flow control and protecting systems from leaks. |
Use in Large-Diameter, Low-Pressure Systems
The knife edge gate valve excels in large-diameter, low-pressure pipelines. Engineers install these valves in systems that transport solid suspensions, wastewater, and pulp mixtures. The lightweight, compact design simplifies installation, especially in tight spaces. Operators benefit from reduced downtime and predictable maintenance schedules.
However, the knife edge gate valve has limitations. It does not perform well in high-pressure or high-temperature applications. Clean media systems may require alternative valve types for optimal sealing and longevity. Routine maintenance and material selection remain critical for maximizing service life in challenging environments.
| Challenge | Solution |
|---|---|
| Corrosion and Erosion | Corrosion-resistant alloys and advanced coatings |
| High-Temperature/Pressure | High-strength materials and routine maintenance |
| Quality Control | Automated monitoring and global standards |
Note: Engineers should match valve type to operating conditions. The knife edge gate valve delivers best results in slurry, wastewater, and solid suspension systems with low to moderate pressure.
NTGD Knife Gate Valve Cost Advantages
Lightweight and Compact Design
Engineers in the knife edge gate valve market often choose NTGD models for their lightweight and compact structure. The slim body fits into tight piping layouts, reducing the need for heavy lifting equipment during installation. NTGD’s design uses a wear-resistant gate and reinforced seat ring, which handle abrasive slurries and fibrous media without adding bulk. The replaceable liners and anti-abrasion metallurgy extend the working life of the valve, even in harsh environments. Operators in the knife edge gate valve market report that these features simplify handling and lower the risk of installation errors.
Lower Installation and Maintenance Costs
NTGD knife edge gate valves deliver measurable savings in both installation and ongoing maintenance. The knife edge gate valve market values the quick maintenance process, which can take as little as 12 minutes. The design allows for easy access to internal parts, so technicians can replace liners and seals without removing the valve from the line. This reduces plant downtime by up to 95% and cuts annual maintenance costs by as much as 60% compared to traditional valves.
| Metric | NTGD Knife Gate Valves | Traditional Valves |
|---|---|---|
| Downtime Reduction | Up to 95% | N/A |
| Annual Maintenance Cost Savings | Up to 60% | N/A |
| Maintenance Process Time | As little as 12 mins | N/A |
Tip: Plants in the knife edge gate valve market can schedule maintenance during regular shutdowns, avoiding costly emergency repairs.
Service Life and Material Options
Material selection plays a critical role in the knife edge gate valve market. NTGD offers a range of materials to match specific operating conditions. Stainless steel provides high durability and excellent corrosion resistance, making it ideal for high-pressure and corrosive environments. Cast iron offers a cost-effective solution for less demanding applications. Special alloys deliver enhanced durability for extreme conditions, while carbon steel serves as a standard option for general use.
| Material Type | Durability | Corrosion Resistance | Cost-Effectiveness |
|---|---|---|---|
| Stainless Steel | High | Excellent | Ideal for high-pressure and corrosive environments |
| Cast Iron | Moderate | Good | Cost-effective for less demanding applications |
| Special Alloys | Very High | Superior | Enhanced durability for extreme conditions |
| Carbon Steel | Moderate | Fair | Standard option for general use |
The knife edge gate valve market benefits from NTGD’s technical features, such as reinforced seat rings and anti-abrasion metallurgy. These design choices increase service life and reduce the total cost of ownership. Plants that select the right material for their knife edge gate valve achieve reliable performance and long-term savings.
Knife Gate Valve vs Other Valve Types
Knife Gate vs Ball Valve
Engineers in the knife edge gate valve market often compare knife edge gate valves with ball valves for industrial systems. Ball valves provide tight shutoff and fast operation, making them suitable for clean, high-pressure fluids. Knife edge gate valves excel in handling slurries and fibrous media, especially in mining and pulp industries. Ball valves require more frequent cleaning when exposed to solids, which increases maintenance costs. Knife edge gate valves offer a lower initial cost and easier installation in large-diameter, low-pressure pipelines. Operators choose ball valves for reliability in high-pressure, clean media, while knife edge gate valves remain the preferred choice for abrasive and impure flows.
Knife Gate vs Butterfly Valve
Butterfly valves represent another alternative valve technology in the knife edge gate valve market. Butterfly valves feature a compact design and quick actuation, which suits large-diameter, low-pressure applications. Knife edge gate valves provide better performance with solids and slurries, reducing the risk of clogging. Butterfly valves struggle with abrasive media and may require frequent seal replacement. Knife edge gate valves deliver longer service life in challenging environments, while butterfly valves offer cost savings in clean water and air systems. Engineers select knife edge gate valves for reliability in slurry and wastewater, and butterfly valves for simple flow control in less demanding conditions.
Knife Gate vs Traditional Gate Valve
The knife edge gate valve market often compares knife edge gate valves with traditional gate valves. The following table highlights key differences:
| Valve Type | Advantages | Disadvantages |
|---|---|---|
| Knife Gate Valve | Design flexibility | Limited in high-pressure applications |
| Low-cost maintenance | Potential leakage risks | |
| Effective with solids | ||
| Ideal for abrasive environments | ||
| Traditional Gate Valve | High durability | Slower operation |
| Strong sealing capabilities | Susceptible to corrosion | |
| Handles high pressure | Expensive repairs |
Knife edge gate valves offer design flexibility and low-cost maintenance, especially in abrasive environments. Traditional gate valves provide strong sealing and durability for high-pressure systems, but they operate slowly and require costly repairs. Engineers in the knife edge gate valve market select knife edge gate valves for slurry and solids, while traditional gate valves suit high-pressure, clean fluid applications.
Knife Gate vs Pinch Valve
Pinch valves present another alternative valve technology in the knife edge gate valve market. The table below compares key features:
| Feature | NTGD Knife Gate Valves | Pinch Valves |
|---|---|---|
| Design | More complex with multiple components | Simpler design with a single replaceable part |
| Maintenance Needs | Higher due to multiple seals and components | Lower, as the rubber sleeve is the only part needing replacement |
| Media Handling | Effective in various industrial applications | Excellent for corrosive and abrasive media |
| Cost of Ownership | Generally higher due to complexity | Lower due to fewer replaceable parts |
Engineers use knife edge gate valves in industries such as paper and pulp, chemical, mining, power stations, and food. Pinch valves work best for liquids with suspended solids, slurries, and applications where metal contamination must be avoided. Knife edge gate valves provide reliability in abrasive flows, while pinch valves minimize maintenance costs in corrosive environments.
Note: Engineers should evaluate media type, pressure, and maintenance requirements before selecting between knife edge gate valves and alternative valve technologies.

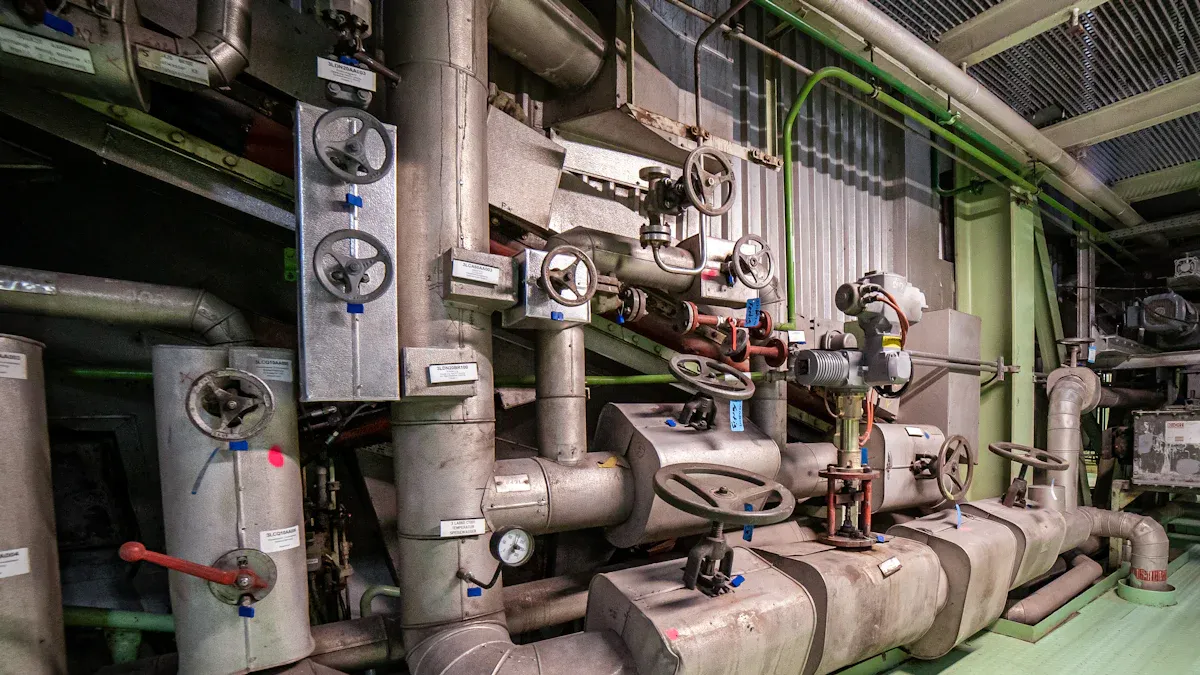

NTGD Total Cost of Ownership
Maintenance Frequency and Spare Parts
Operators in the knife edge gate valve market often prioritize valves that minimize maintenance frequency and simplify spare part management. NTGD knife edge gate valve models feature robust construction and advanced sealing, which reduce the need for frequent servicing. Technicians find easy access to internal components, allowing fast replacement of seats and packing. The electric actuated knife gate valve further lowers maintenance requirements, as fewer moving parts limit wear and tear. Effective sealing mechanisms prevent leaks and reduce inspection intervals.
Maintenance schedules for NTGD valves typically include:
| Maintenance Task | Frequency |
|---|---|
| Adjust the packing | Once a month |
| Lubricate the stem and stem nut | Every three months |
| Lubricate the gear operator | Once a year |
| Cycle the valve (if not in use) | At least every six months |
Plants in the knife edge gate valve market benefit from reduced maintenance frequency, which lowers total cost of ownership. The valve resists wear from abrasive and corrosive media, and spare parts remain readily available. Operators report that quick seat and packing replacement keeps downtime to a minimum.
- Reduced maintenance frequency due to robust construction
- Lower total cost of ownership
- Fast access to internal components for seat and packing replacement
Downtime and Plant Operation Impact
Downtime directly affects plant productivity and operational efficiency. NTGD knife edge gate valve models deliver reliable performance, which limits unplanned shutdowns. The self-cleaning design and ability to handle high-solid content materials ensure consistent flow, even in demanding conditions. Operators in the knife edge gate valve market observe that tight shut-off and low pressure drop contribute to stable system operation.
| Benefit | NTGD Knife Gate Valves | Other Valve Types |
|---|---|---|
| High-solid content handling | Yes | No |
| Tight shut-off | Yes | Varies |
| Low pressure drop | Yes | Varies |
| Easy maintenance | Yes | Varies |
| Reduced downtime | Yes | Varies |
Plants using NTGD valves experience fewer interruptions, which improves overall productivity. The knife edge gate valve market values reliability, material compatibility, and specific connection types tailored for various applications. Operators achieve improved reliability and reduced downtime, which translates to lower operational cost and higher output.
When Knife Gate Valves Are the Best Investment
Performance in Slurry and Wastewater
Engineers in the knife edge gate valve market often select NTGD models for demanding slurry and wastewater systems. These valves deliver reliable operation in environments with high pressure and elevated solid concentrations. Mining and mineral processing plants rely on NTGD knife gate valves to control abrasive tailings and thick slurries. Power generation facilities and wastewater treatment plants also benefit from their robust construction.
NTGD knife gate valves feature rubber ring sleeves that create a tight seal. This design supports bi-directional flow and effective shutoff. Operators observe that fully opened valves prevent downstream leakage and resist clogging, which reduces maintenance frequency. The self-cleaning action of the gate ensures consistent flow, even when handling fibrous or impure media.
- Key performance advantages:
- Superior sealing in high-solid concentration environments
- Bi-directional flow capability
- Minimal clogging and reduced maintenance needs
Operators in the knife edge gate valve market report fewer unplanned shutdowns and lower repair costs when using NTGD valves in slurry and wastewater applications.
ROI in Industrial Systems
Return on investment (ROI) remains a critical factor for engineers evaluating valve options. Plants in the knife edge gate valve market achieve measurable savings by choosing NTGD valves for abrasive and high-solid media. The lightweight design simplifies installation, reducing labor and equipment costs. Fast access to internal components allows technicians to complete maintenance quickly, minimizing downtime.
A comparison of ROI factors:
| Factor | NTGD Knife Gate Valve | Alternative Valves |
|---|---|---|
| Installation Cost | Lower | Higher |
| Maintenance Frequency | Reduced | Increased |
| Downtime | Minimal | Variable |
| Service Life | Extended | Standard |
Engineers see long-term value in reduced operational interruptions and predictable maintenance schedules. Plants handling slurry, pulp, or wastewater often realize higher output and lower total cost of ownership. The knife gate valve stands out as the best investment for systems facing abrasive, fibrous, or impure media.
NTGD Knife Gate Valves deliver strong cost-benefit performance in slurry, wastewater, and pulp systems. Engineers see lower installation and maintenance costs, extended service life, and reliable operation in abrasive media. Industry experts recommend the following when selecting valves:
- Assess specific application requirements and valve performance.
- Evaluate working parameters and design profiles for technical feasibility.
- Consider suitability of flow media and purpose of use.
Balancing initial investment with long-term operational costs ensures optimal value. Consulting with valve specialists helps match system needs to the right solution.
FAQ
What makes NTGD knife gate valves suitable for abrasive slurry applications?
NTGD knife gate valves use a sharp-edged gate and reinforced seat. This design allows solids to pass without clogging. Operators in mining and pulp industries report reliable sealing and reduced maintenance in abrasive environments.
How do NTGD knife gate valves compare to ball valves in maintenance?
Ball valves require frequent cleaning when exposed to solids. NTGD knife gate valves feature easy access to internal parts. Technicians replace seats and seals quickly, reducing downtime and spare part costs.
Can NTGD knife gate valves handle high-pressure or high-temperature systems?
Engineers recommend NTGD knife gate valves for low to moderate pressure and temperature. High-pressure or high-temperature systems may cause rapid seat wear. Alternative valves, such as traditional gate or ball valves, perform better in these conditions.
What factors affect the total cost of ownership for NTGD knife gate valves?
Material selection, maintenance frequency, and spare part availability impact total cost. Plants using NTGD valves in suitable applications report lower installation costs, predictable maintenance, and extended service life.
