Choosing the right material for a knife gate valve plays a critical role in plant reliability and cost control. Process media, corrosion, abrasion, pressure, temperature, and cost all influence material selection in knife gate valves. Options include SS 316, Duplex, ductile iron, carbon steel, coated surfaces, hard-seat designs, and specialty linings. Over 40% of industrial valve failures result from material mismatch. In harsh environments, using alloys like Duplex or hard-facing materials such as Stellite extends service life and reduces maintenance.
Key Takeaways
- Choosing the right material for knife gate valves is crucial for reliability and cost control. It can prevent over 40% of industrial valve failures caused by material mismatch.
- Materials like Duplex stainless steel and hard-facing coatings enhance durability in harsh environments. They resist corrosion and wear, extending service life and reducing maintenance.
- Engineers should assess media compatibility, pressure, and temperature limits when selecting materials. This ensures optimal performance and prevents costly failures.
- Consider both initial costs and total cost of ownership (TCO) when selecting materials. Advanced materials may have higher upfront costs but lead to long-term savings through reduced maintenance.
- Follow a systematic selection process that includes evaluating application needs, material properties, and compliance with industry standards. This approach maximizes valve performance and reliability.
Why Material Selection in Knife Gate Valves Matters
Impact on Durability and Performance
Material selection in knife gate valves directly affects how long the valve lasts and how well it performs in service. Different materials offer varying levels of corrosion resistance and wear protection. For example, stainless steel provides high corrosion resistance but only moderate protection against abrasion. Alloyed metals, such as Duplex stainless steel, deliver both high corrosion resistance and strong resistance to wear. The table below compares common materials used in knife gate valves:
| Material Type | Resistance to Corrosion | Resistance to Abrasion |
|---|---|---|
| Stainless Steel | High | Moderate |
| Brass | Moderate | Low |
| Alloyed Metals | High | High |
Knife gate valves excel in handling slurries and fluids with solid content. Their self-cleaning design helps prevent buildup in abrasive environments. When fully open, these valves create a low pressure drop, which improves performance in tough conditions. The thin, sharp-edged gate design allows for reliable operation even when the process media contains solid particles. This makes them a preferred choice for industries facing frequent corrosion and wear challenges.
Common Failures from Poor Choices
Selecting the wrong material can lead to several types of failures. The most common issues include seal leakage, gate jamming, and corrosion damage. These failures often result in costly repairs, production downtime, and even safety risks. The table below outlines typical failures and their associated costs:
| Common Failures | Associated Costs |
|---|---|
| Seal Leakage | Labor and equipment costs for repairs, damage to infrastructure, lost production due to downtime. |
| Gate Jamming | Additional labor and equipment costs, potential damage to surrounding infrastructure. |
| Corrosion | Costs for replacement materials, potential health and safety risks, and disposal costs of old materials. |
Tip: Choosing the right material for each application reduces the risk of corrosion and wear, extends service life, and lowers maintenance costs. NTGD’s engineering team uses advanced testing and simulation to match materials to the specific demands of abrasive and corrosive media, ensuring reliable performance in every knife gate valve.
Selection Criteria for Knife Gate Valves
Media Compatibility and Corrosion
Material compatibility stands as the foundation of reliable valve performance. Engineers must evaluate the process media to determine which materials will withstand chemical attack and prevent premature failure. Stainless steel offers excellent corrosion resistance, making it a preferred choice for corrosive environments. Specialty alloys such as Duplex stainless steel and Hastelloy provide enhanced strength and corrosion resistance for extreme conditions. Industry standards like MSS-SP81 guide the selection process, ensuring safety and reliability in applications of knife gate valves.
- Stainless steel resists most acids and chlorides.
- Duplex stainless steel excels in aggressive chemical environments.
- Specialty coatings and linings, such as urethane or RTFE, protect against specific corrosive agents.
| Material | Corrosion Resistance | Abrasion Resistance |
|---|---|---|
| Stainless Steel | High | Moderate |
| Brass | Moderate | Moderate |
| Alloyed Metals | High | High |
Note: Matching seat and lining materials, such as RTFE, FKM, or urethane, to the process media ensures optimal sealing and extends valve service life. NTGD engineers use advanced simulation tools to verify material compatibility for every project.
Pressure and Temperature Limits
Pressure and temperature ratings define the operational boundaries for knife gate valves. Each material has specific limits that must align with the demands of the process. Stainless Steel 316 handles pressures up to 200 PSI and temperatures from -60 to 450 degrees Fahrenheit. Ductile iron offers robust strength, with pressure ratings that vary by valve size and temperature tolerance up to 425°C.
| Material | Max Pressure | Temperature Range |
|---|---|---|
| Stainless Steel 316 | 200 PSI | -60 to 450 Degrees F |

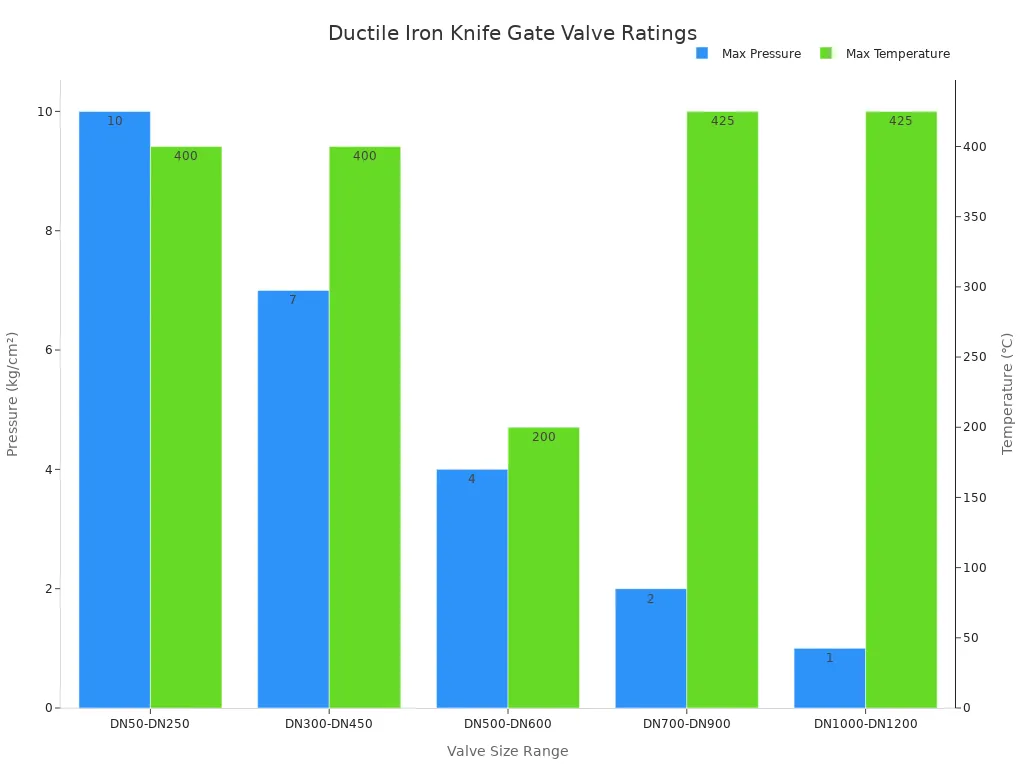

| Material | Max Working Pressure | Max Working Temperature |
|---|---|---|
| Ductile Iron | 10 kg/cm² (DN50-DN250) | 400℃ |
| Ductile Iron | 7 kg/cm² (DN300-DN450) | 400℃ |
| Ductile Iron | 4 kg/cm² (DN500-DN600) | 200℃ |
| Ductile Iron | 2 kg/cm² (DN700-DN900) | 425℃ |
| Ductile Iron | 1 kg/cm² (DN1000-DN1200) | 425℃ |
NTGD’s engineering team customizes valve designs to meet specific pressure and temperature requirements, ensuring safe and reliable operation in every application.
Abrasion and Erosion Resistance
Abrasive and erosive media, such as slurries and mining tailings, demand materials with superior resistance. Corrosion-resistant stainless steel, ductile iron, and hard-coated gates provide durability in harsh conditions. Specialized coatings, including epoxy and rubber linings, further enhance abrasion resistance. Polyurethane linings and wear-resistant stainless steel plates protect valves from rapid wear.
| Material Type | Description |
|---|---|
| Bray SlurryShield Tech | Engineered for high-pressure slurry applications, excelling in abrasive and corrosive environments. |
| 304 Stainless Steel | Commonly used for its good corrosion resistance in various applications. |
| Hard-coated Gates | Designed specifically for abrasive service, enhancing durability and performance. |
| Material Type | Description |
|---|---|
| Polyurethane (PU) | Offers all-round wear-resistant protection, ideal for abrasive slurry applications. |
| Wear-resistant SS | Valve plate uses wear-resistant stainless steel with various surface treatments for enhanced durability. |
| Material Type | Description |
|---|---|
| 316 Stainless Steel | Suitable for high-pressure slurry applications, providing corrosion resistance. |
| 2205 Duplex SS | Offers enhanced strength and corrosion resistance for demanding environments. |
| 17-4 Stainless Steel | Known for its high strength and good corrosion resistance, suitable for various pressure ratings. |
Tip: NTGD recommends hard-seat designs and specialty linings for abrasive service. Selection criteria for knife gate valves must include a thorough assessment of abrasion and erosion risks to maximize valve lifespan.
Cost and Maintenance Factors
Initial cost often influences material selection, but total cost of ownership (TCO) provides a more accurate measure of value. TCO includes maintenance, service, and spare parts over the valve’s lifecycle. Material choice, valve design, and maintenance practices all impact TCO. High-performance alloys and specialty coatings may increase upfront costs, but they reduce downtime and maintenance expenses.
- Initial investment may be higher for advanced materials.
- Long-term savings result from reduced maintenance and extended service life.
- NTGD’s approach focuses on optimizing TCO by matching materials to application needs.
Alert: Consider both initial cost and lifecycle expenses when selecting materials. NTGD’s expertise in material engineering helps clients achieve the best balance between performance and cost.
Material Options for Knife Gate Valves
SS 316 Stainless Steel
SS 316 stainless steel stands out for its mechanical and chemical properties. This material offers excellent corrosion resistance and wear resistance, making it suitable for knife gate valve applications in harsh environments. The compact structure and unidirectional sealing provide space efficiency. The non-clogging design simplifies maintenance. SS 316 also meets hygienic standards, which is important for food and pharmaceutical industries.
- Excellent resistance to rust, acids, and chlorides
- Handles corrosive and abrasive media reliably
- Hygienic properties for sensitive applications
- Reliable performance in tough conditions
Industries prefer SS 316 for general service isolation, especially where media contains solids or slurries. This material is required when a full bore is necessary and offers superior corrosion resistance. SS 316 knife gate valves perform well as isolation or on-off valves in corrosive environments. They suit abrasive liquids, slurries, and dry materials.
NTGD customizes SS 316 designs to match specific process requirements, ensuring optimal resistance and long service life.
Duplex Stainless Steel
Duplex stainless steel exhibits superior performance in acidic environments due to its higher chromium and molybdenum content, which enhances its resistance to acids compared to SS 316. This characteristic makes duplex stainless steel particularly advantageous for applications involving corrosive materials like sulfuric and acetic acids.
Duplex stainless steel has excellent mechanical properties, including high tensile strength, making it suitable for high-pressure and high-temperature applications, which is crucial for knife gate valves.
In the oil and gas sector, duplex stainless steel is preferred for offshore drilling platforms due to its exceptional durability and corrosion resistance in harsh environments, outperforming SS 316.
Duplex stainless steel features a unique microstructure that combines ferrite and austenite phases. This structure enhances corrosion resistance in aggressive environments. The higher alloy content, including molybdenum, nickel, and nitrogen, creates a robust passive film, which is effective against pitting and crevice corrosion. Duplex stainless steel offers superior resistance to chlorides, making it reliable in marine and other aggressive settings.
NTGD engineers recommend duplex stainless steel for knife gate valve installations in chemical processing, oil and gas, and marine industries. The material’s high tensile strength and corrosion resistance ensure durability and safety in demanding applications.
Ductile Iron and Carbon Steel
Ductile iron and carbon steel provide cost-effective solutions for knife gate valve installations in several industries. These materials deliver high strength and moderate wear resistance, which is essential for handling abrasive and corrosive media.
- Mining: Controls the flow of abrasive and corrosive materials like slurry and tailings
- Wastewater Treatment: Handles high-solid content materials efficiently
- Pulp and Paper: Manages pulp flow and other high-solid content materials
- Chemical Processing: Handles corrosive materials effectively
- Food and Beverage: Meets hygiene standards for material flow control
| Material | Strength | Weight | Corrosion Resistance |
|---|---|---|---|
| Ductile Iron | High | Heavy | Moderate |
| Carbon Steel | Moderate | Light | Low |
Knife gate valves made from ductile iron and carbon steel excel in on-off control but may have limitations in high-pressure applications. These valves are not suitable for throttling service due to their design. NTGD offers customized solutions using ductile iron and carbon steel, optimizing wear resistance and corrosion resistance for each application.
Coated and Lined Valves
Coated and lined knife gate valves extend service life in abrasive and corrosive environments. NTGD applies advanced coatings and linings to enhance wear resistance and corrosion resistance.
| Feature | Description |
|---|---|
| Coating Type | Polyurethane |
| Applications | Mining, Coal Washing, Paper & Pulp, Wastewater Treatment, etc. |
| Key Features | Bidirectional zero leakage, self-cleaning design, easy replacement, abrasion resistance, etc. |
Polyurethane linings provide excellent impact, abrasion, and tear resistance. These linings also offer fair to excellent cut growth resistance and a maximum temperature rating of 175°F (80°C).
| Property | Rating |
|---|---|
| Impact | Excellent |
| Abrasion | Excellent |
| Tear | Excellent |
| Cut Growth | Fair to Excellent |
| Maximum Temperature Rating | 175°F (80°C) |
NTGD engineers select coatings and linings based on process media and operating conditions. Polymer and urethane linings deliver chemical compatibility and wear resistance, which is vital for mining, wastewater, and pulp industries. NTGD also offers specialty coatings such as tungsten carbide and titanium alloys for extreme wear and corrosion environments.
Hard-Seat and Specialty Seats
Hard-seat knife gate valves use materials like cobalt-chromium alloys, tungsten carbide, and titanium alloys to maximize wear resistance and corrosion resistance. These designs provide longer service life and improved reliability in abrasive and corrosive media.
| Material | Performance Benefit |
|---|---|
| RTFE | Enhanced durability, resistance to high temperatures and pressures, improved sealing capabilities in harsh environments |
| FKM | Suitable for applications involving abrasive media and corrosive environments |
- Enhanced durability
- Resistance to high temperatures and pressures
- Improved sealing capabilities in harsh environments
- Suitable for abrasive media and corrosive environments
NTGD offers hard-seat valves for applications where erosion and abrasion are major concerns. These valves are versatile and cost-effective, suitable for a wide range of industrial uses. Unlike soft-seat valves, hard-seat designs do not face limitations related to chemical compatibility or extreme temperatures.
- Hard-seat valves have a longer service life due to their resistance to erosion and abrasion.
- They are versatile and cost-effective, suitable for a wide range of applications.
- Unlike soft-seat valves, hard-seat valves do not face limitations related to chemical compatibility or extreme temperatures.
NTGD engineers match seat materials such as RTFE, FKM, and cobalt-chromium alloys to specific process needs. The company also provides specialty seat designs for zero leakage requirements, including Class VI sealing.
NTGD’s expertise in material engineering ensures that each knife gate valve delivers optimal performance in abrasive and corrosive media. The company customizes solutions using advanced alloys, specialty coatings, and engineered seat materials to meet the unique demands of every industry.
NTGD Material Engineering Approach
Testing and Simulation
NTGD engineers use advanced testing and simulation to evaluate knife gate valve performance in real-world conditions. They simulate abrasive and corrosive media to predict wear patterns and corrosion rates. This approach helps NTGD identify the best materials for each application. Engineers test valves with different alloys to measure resistance against harsh chemicals and solid particles. They also analyze the effectiveness of coatings such as tungsten carbide in extending valve lifespan. NTGD’s laboratory uses high-pressure and high-temperature simulations to ensure reliability in demanding environments.
Tip: NTGD’s simulation tools allow engineers to optimize valve design before installation, reducing the risk of unexpected failures.
Custom Material Matching
NTGD specializes in custom material matching for unique process requirements. Engineers assess the chemical composition of process media and select alloys that provide maximum durability. They match seat and lining materials to specific operating conditions. For example, NTGD recommends tungsten carbide coatings for valves exposed to severe abrasion. The team also customizes polymer linings and high-performance alloys for applications with aggressive chemicals. NTGD’s expertise ensures each valve delivers optimal sealing and long service life.
- Engineers select materials based on media analysis.
- NTGD customizes seat and lining materials for each project.
- The company matches alloys to the demands of abrasive and corrosive environments.
Hybrid and High Alloy Solutions
NTGD offers hybrid and high alloy solutions for the most challenging applications. Engineers combine different alloys to achieve superior resistance to both corrosion and abrasion. They use advanced materials such as duplex stainless steel and tungsten carbide to enhance valve performance. Hybrid designs may include a stainless steel body with a tungsten carbide-coated gate for maximum durability. NTGD’s approach delivers reliable operation in mining, chemical processing, and wastewater treatment plants.
| Solution Type | Application Example | Technical Advantage |
|---|---|---|
| Hybrid Alloy Design | Mining slurry control | Superior abrasion resistance |
| High Alloy Coating | Chemical processing | Enhanced corrosion protection |
| Tungsten Carbide Gate | Wastewater treatment | Extended service life |
NTGD’s engineering team leverages decades of experience to deliver customized, high-performance knife gate valves for abrasive and corrosive media.
Comparative Table: Knife Gate Valve Materials
Performance and Cost Overview
Selecting the right material for a knife gate valve depends on the process media, expected wear, and budget. NTGD engineers recommend alloys and coatings based on the specific needs of each application. The table below compares common materials, focusing on performance, cost, and NTGD’s technical features.
| Material | Abrasion Resistance | Corrosion Resistance | Cost Level | Recommended Application | NTGD Features |
|---|---|---|---|---|---|
| SS 316 Stainless | Moderate | High | Medium | Chemical, Food, Pharma | Hygienic, custom design, long life |
| Duplex Stainless | High | Very High | High | Oil & Gas, Marine, Slurry | Superior alloys, high strength |
| Ductile Iron | Moderate | Moderate | Low | Mining, Wastewater, Pulp | Robust, cost-effective, abrasion plate |
| Carbon Steel | Low | Low | Low | General Industrial | Basic alloys, economical |
| Coated (Polyurethane, Epoxy) | High | High | Medium | Mining, Coal, Pulp | Advanced coatings, self-cleaning |
| Hard-Seat (Tungsten Carbide, Cobalt-Chromium) | Very High | High | High | Abrasive Slurry, Chemical | Tungsten carbide seat, zero leakage |
| Specialty Seats (RTFE, FKM) | High | High | Medium | Corrosive, High Temp | Engineered seals, custom alloys |
NTGD uses advanced alloys and tungsten carbide coatings to maximize resistance against abrasion and corrosion. Their engineering team customizes each valve to match the process media and operating conditions.
- NTGD’s hard-seat designs with tungsten carbide provide extended service life in abrasive environments.
- Coated valves offer enhanced resistance for mining and wastewater applications.
- Duplex stainless steel valves deliver high strength and corrosion resistance for demanding industries.
NTGD’s experience in material engineering ensures reliable performance and reduced maintenance costs. Their solutions address the challenges of abrasive and corrosive media, delivering valves that meet strict industrial standards.

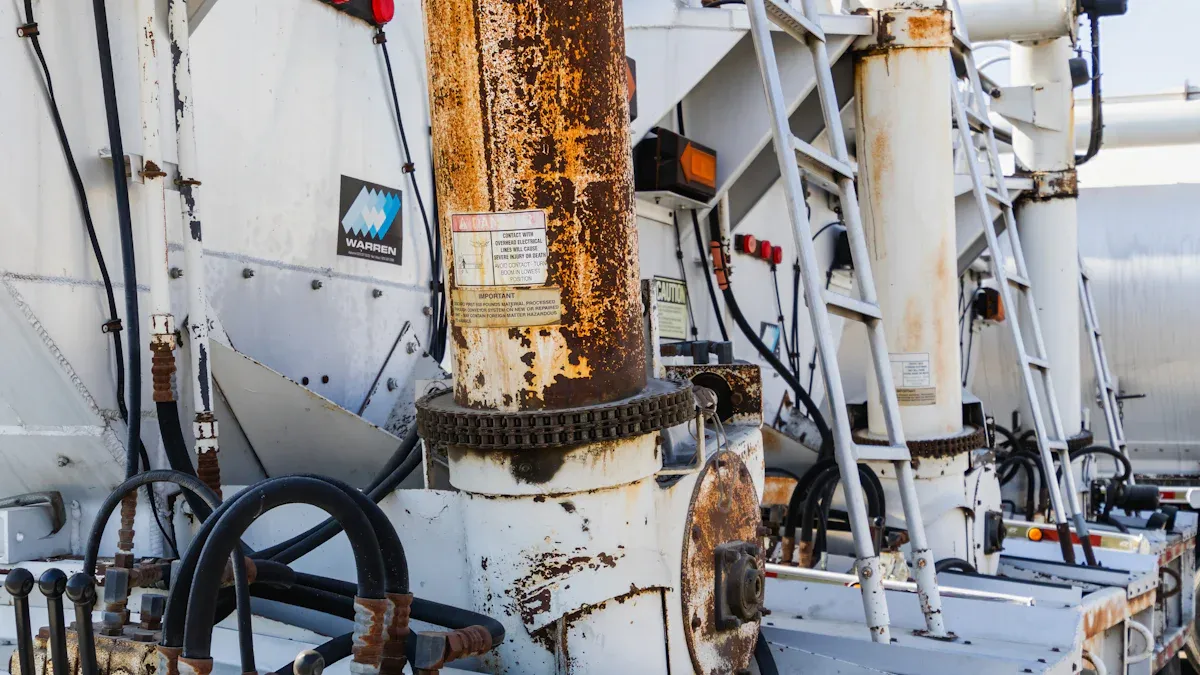

Case Study: Slurry Plant Application
Erosion and Leakage Issues
A large mineral processing plant faced frequent valve failures in its slurry transport system. The process involved abrasive slurries with high solid content, which caused rapid erosion of valve gates and seats. Operators observed recurring leakage and unplanned shutdowns. Maintenance teams replaced valves every few months, leading to increased costs and lost production time. The plant used standard carbon steel valves, which lacked the necessary resistance to both abrasion and corrosion. The engineering team identified the need for a more robust solution to handle the harsh operating conditions.
Note: Erosion and leakage in slurry applications often result from improper material selection. Plants must consider both the chemical and physical properties of the process media.
NTGD Solution and Results
NTGD engineers conducted a thorough analysis of the slurry composition and flow characteristics. They recommended knife gate valves constructed from duplex stainless steel, combined with advanced coatings. The team selected alloys with high chromium and molybdenum content to improve corrosion resistance. For the gate and seat surfaces, NTGD applied a tungsten carbide coating to maximize abrasion resistance.
The new valve design featured:
- Duplex stainless steel body for enhanced strength and corrosion protection
- Tungsten carbide-coated gate and seat for superior wear resistance
- Custom-engineered seals to prevent leakage
A comparison table highlights the improvements:
| Feature | Previous Valve | NTGD Solution |
|---|---|---|
| Service Life | 6 months | 36 months |
| Maintenance Cost | High | Reduced by 70% |
| Leakage Incidents | Frequent | Rare |
| Downtime | Significant | Minimal |
Plant managers reported a dramatic reduction in maintenance frequency and costs. The valves operated reliably for three years without major repairs. NTGD’s expertise in material selection and custom engineering delivered a high-performance solution for abrasive and corrosive slurry media.
How to Choose: Material Selection in Knife Gate Valves
Step-by-Step Selection Guide
Selecting the right material for a knife gate valve requires a systematic approach. Engineers begin by identifying the application and media characteristics. They analyze whether the process involves corrosive chemicals, abrasive slurries, or high-solid content. Material selection in knife gate valves depends on durability and compatibility with the media. Valve design and configuration must suit the specific process, whether isolation or on-off control is needed.
The following steps help guide material selection in knife gate valves:
- Application and Media Characteristics: Assess the type of fluid, solid content, and chemical properties.
- Material Selection: Choose materials that resist corrosion and abrasion, such as SS 316 or duplex stainless steel.
- Valve Design and Configuration: Select designs that match operational needs, including bidirectional sealing or self-cleaning features.
- Actuation Method: Decide between manual or automated actuation based on process control requirements.
- Sealing Mechanism: Ensure seat and lining materials, like RTFE or FKM, are compatible with the media.
- Pressure and Temperature Ratings: Verify that the valve withstands expected operating conditions.
- Maintenance and Accessibility: Consider ease of inspection and replacement.
- Compliance with Standards: Confirm adherence to industry standards for safety and reliability.
- Cost and Value: Evaluate total cost of ownership, balancing initial investment with long-term performance.
Tip: Engineers who follow these steps achieve optimal material selection in knife gate valves, reducing downtime and extending service life.
Consulting NTGD Experts
Complex applications often require expert guidance. NTGD engineers offer specialized support for material selection in knife gate valves. They evaluate material compatibility, size, pressure rating, and actuation type. NTGD considers temperature range and installation environment to ensure reliable operation.
- Material compatibility with corrosive or abrasive media
- Valve size and pressure rating for system requirements
- Actuation type for control needs
- Temperature range for material integrity
- Installation environment for maintenance access
NTGD experts analyze cycle frequency, torque requirements, and automation needs. They recommend solutions that integrate with existing control systems. Their experience with abrasive and corrosive media allows them to deliver customized, high-performance valves for demanding industries.
Note: Consulting NTGD ensures that material selection in knife gate valves meets both technical and operational requirements, providing confidence in long-term reliability.
Selecting the right material for a knife gate valve determines long-term reliability and operational efficiency. Engineers should focus on these key considerations:
- Material compatibility with process media ensures resistance to corrosion and abrasion.
- Proper valve size and pressure rating maintain system performance.
- Choosing materials that withstand the operating temperature protects valve integrity.
NTGD’s engineering team delivers customized solutions for abrasive and corrosive environments. Their expertise helps clients achieve optimal performance and reduced maintenance costs. 联系NTGD获取材料选型建议 for expert guidance in material selection.
FAQ
What factors determine the best material for a knife gate valve?
Engineers consider process media, pressure, temperature, and abrasion risk. NTGD evaluates each application and recommends materials that maximize durability and minimize maintenance.
How does NTGD customize knife gate valves for abrasive media?
NTGD analyzes slurry composition and flow characteristics. The team selects advanced alloys and applies specialty coatings, such as tungsten carbide, to extend valve service life.
Can NTGD provide valves for corrosive chemical environments?
NTGD offers duplex stainless steel and specialty linings for chemical resistance. The engineering team matches materials to the specific chemicals present in each process.
What seat materials does NTGD recommend for zero leakage?
NTGD recommends RTFE, FKM, or hard-seat alloys for zero leakage. Engineers select seat materials based on temperature, pressure, and media compatibility.
How does NTGD ensure valve reliability in harsh conditions?
NTGD uses simulation and laboratory testing to predict wear and corrosion. The company customizes each valve design to meet the demands of abrasive and corrosive environments.
