Knife gate valve bore and port design: full-bore vs reduced-bore represents a critical choice for process engineers. Full-port valves provide an opening nearly equal to the pipeline diameter, while reduced-port valves feature a smaller opening relative to the pipe. Bore design directly impacts flow efficiency and pressure loss. Industry studies show that:
- Knife gate valves deliver low-pressure drop, reducing energy costs during material transport.
- Full port designs minimize turbulence and pressure loss, enhancing flow performance.
- Sharp-edged gates ensure precise modulation and effective cutting through solids.
NTGD applies advanced engineering to ensure each valve matches specific application needs.
Key Takeaways
- Full-bore knife gate valves provide maximum flow efficiency with minimal pressure loss, making them ideal for applications like mining slurry and pigging lines.
- Reduced-bore knife gate valves are compact and cost-effective, suitable for small pipelines and projects with space constraints, but they may increase pressure loss.
- Engineers should consider the specific media type, flow rate, and installation space when choosing between full-bore and reduced-bore designs to ensure optimal performance.
- Regular maintenance and inspection are crucial for both valve types to manage wear and pressure loss, ultimately reducing operational costs.
- NTGD offers advanced engineering solutions, including custom port designs, to meet unique process requirements and enhance valve performance.
Knife Gate Valve Bore and Port Design: Full-Bore vs Reduced-Bore
Full Port vs Reduced Port Definitions
Valve engineers distinguish between full port and reduced port designs based on the relationship between the valve opening and the pipeline diameter. A full port knife gate valve features an opening that matches the pipe’s internal diameter. This design allows the medium to pass through without restriction. In contrast, a reduced port knife gate valve has a smaller opening than the pipe, which limits the flow area.
The following table summarizes the standard definitions and pressure drop impacts:
| Valve Type | Description | Pressure Drop Impact |
|---|---|---|
| Full-Port | Provides a full line size equal to pipe dimensions. | Minimum-flow pressure drop. |
| Reduced-Port | Smaller than the line size, resulting in a flow area less than the pipe. | Slightly higher pressure drop. |
Engineers select between these designs by considering the process requirements and the desired balance between flow efficiency and installation constraints.
Key Differences in Flow Path and Area
The flow channel inside a full port knife gate valve remains unobstructed. The medium travels through the valve with minimal turbulence. The area available for flow matches the pipe, which reduces the risk of clogging and supports the passage of solids, slurries, or cleaning pigs.
A reduced port knife gate valve presents a narrower flow path. The smaller opening restricts the medium, which can increase velocity and create localized turbulence. This design may suit applications where space is limited or where cost is a primary concern. However, the reduced area can lead to higher pressure loss and may accelerate wear in abrasive service.
Tip: Full port valves excel in systems that demand maximum flow and minimal pressure loss, while reduced port valves offer advantages in compact installations and budget-sensitive projects.
Performance Trade-Offs: Flow Efficiency and Pressure Loss
Knife gate valve bore and port design: full-bore vs reduced-bore directly influences flow efficiency and pressure loss. Full port valves deliver superior flow efficiency because the medium encounters little resistance. The pressure loss across the valve remains low, which helps maintain system energy and reduces pumping costs.
Reduced port valves, by design, introduce a higher pressure loss. The restricted opening increases fluid velocity, which can cause erosion in abrasive applications. Maintenance costs may rise if the valve operates in harsh conditions. Engineers must weigh these trade-offs when specifying valves for mining slurry, sewage, or dry solids transport.
- Full port: Maximizes flow efficiency, minimizes pressure loss, and reduces turbulence.
- Reduced port: Saves space and cost, but may increase pressure loss and maintenance frequency.
Selecting the optimal bore design requires careful analysis of process needs, pipeline size, and long-term operational costs.

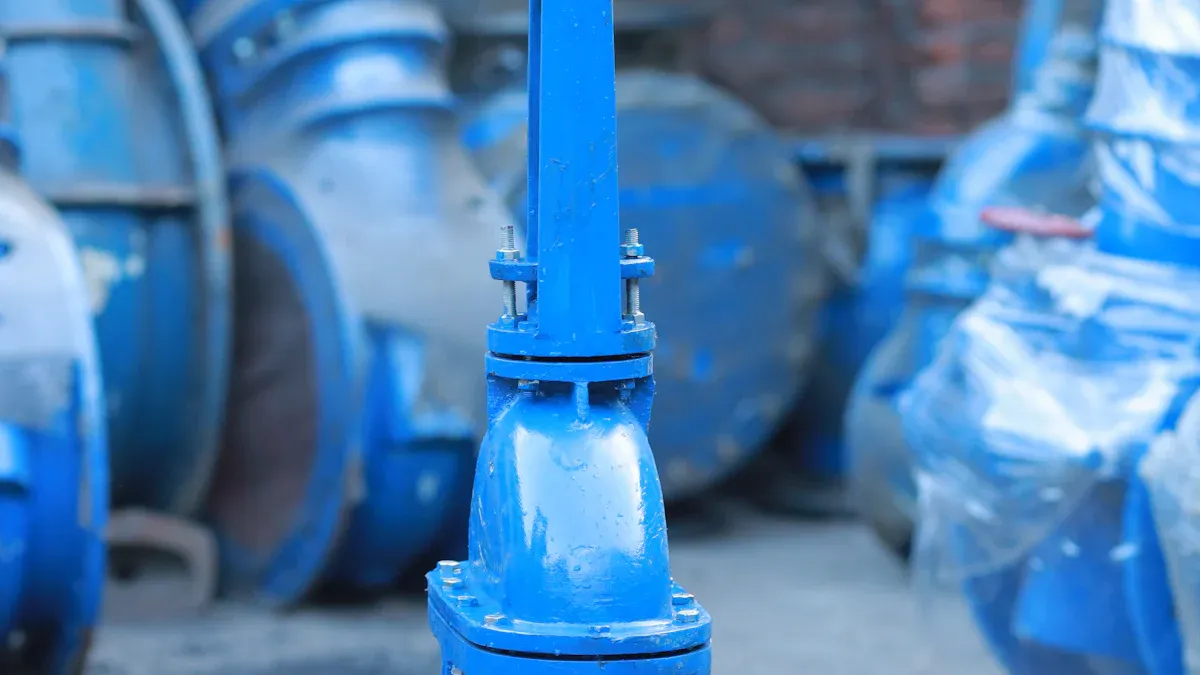

Full Port Knife Gate Valve Design
Full Port Features and Construction
NTGD full port knife gate valves stand out in demanding industrial environments. The design provides a flow channel that matches the pipeline diameter, ensuring unobstructed passage for solids, slurries, and cleaning pigs. Engineers at NTGD focus on robust construction and advanced sealing to deliver reliable performance. The following table highlights key features that distinguish NTGD full port knife gate valves:
| Feature | Description |
|---|---|
| Dual-Seal Structure | Advanced sealing eliminates leakage risks, even in harsh conditions. |
| Bidirectional Flow Control | Enables isolation of flow in both directions, increasing process flexibility. |
| Robust Construction | Withstands abrasive and corrosive media, ensuring long service life. |
| Maintenance-Friendly Design | Replaceable seats and packing allow easy servicing without removing the valve from the line. |
| Suitable for Harsh Media | Handles abrasive slurries and corrosive chemicals where standard valves may fail. |
Large diameter options and a straight-through flow channel reduce the risk of clogging and support high solids content.
Flow Efficiency and Minimal Pressure Loss
Full port knife gate valves deliver superior flow efficiency. The unobstructed flow channel minimizes turbulence and pressure loss, which helps maintain system energy and reduces operational costs. Engineers select full port designs when they need to preserve the velocity profile of the medium and avoid bottlenecks. This approach ensures that abrasive slurries, fibrous media, and cleaning pigs move through the valve without restriction. NTGD bore design engineering uses computational tools to optimize the internal geometry, further enhancing flow efficiency and valve durability.
Note: Full port valves help operators achieve consistent flow rates and minimize energy consumption, especially in large-diameter pipelines.
Typical Applications for Full Port
Many industries rely on full port knife gate valves for critical processes. Common applications include:
- Mining and mineral processing: Handles abrasive ore slurry and tailings discharge.
- Pulp and paper industry: Slices through pulp stock and manages effluents.
- Chemical industry: Controls powdered chemicals and mixer pumpers.
- Wastewater treatment plants: Ensures reliable shutoff in sludge lines and dewatering systems.
- Pigging lines: Supports cleaning operations in large diameter pipelines.
NTGD full port knife gate valves provide the reliability and flow efficiency required for these challenging environments.
Reduced Port Knife Gate Valve Design
Reduced Port Features and Size Ratios
A reduced port knife gate valve features a flow channel smaller than the pipe’s internal diameter. This design reduces the valve’s overall footprint and weight. NTGD reduced-port knife gate valves use precise engineering to maintain reliable shutoff and control, even with a smaller opening. The size ratio between the port and the pipeline often ranges from 0.6 to 0.8, depending on the application. Engineers select these valves for systems where full bore knife gate valve dimensions are not practical. The compact structure allows for easier handling and installation, especially in tight spaces.
Cost, Space, and Installation Benefits
Reduced port valves offer significant advantages in cost-sensitive projects. The smaller body and lighter weight translate to lower material and shipping costs. Installation becomes simpler because the valve requires less space and support. The following table compares key features of reduced port and full port designs:
| Feature | Reduced-Port Valves | Full-Port Valves |
|---|---|---|
| Size | Smaller | Larger |
| Installation Space | Requires less space | Requires more space |
| Weight | About 30% lighter | Heavier |
| Cost | Cheaper | More expensive |
NTGD reduced-port knife gate valves provide a practical solution for projects with limited budgets or confined layouts.
Pressure Loss and Erosion Considerations
A reduced port design increases pressure loss compared to a full bore knife gate valve. The smaller opening accelerates the medium, which can lead to higher velocity and localized turbulence. This effect may cause more rapid wear in abrasive services. Engineers must consider the balance between flow efficiency and acceptable pressure loss. NTGD bore design ensures that even with a reduced port, the valve maintains reliable performance and minimizes erosion risks through optimized geometry and material selection.
Typical Applications for Reduced Port
Many industries rely on reduced port knife gate valves for specific needs. These valves see frequent use in:
- Mining and mineral processing
- Power generation
- Pulp and paper
- Wastewater
- Chemical industries
Engineers choose reduced port valves for small pipelines, cost-driven projects, and installations where space is at a premium. NTGD reduced-port knife gate valves deliver dependable shutoff and control in these demanding environments.
NTGD Port Design Engineering Approach
Flow Modeling and CFD Analysis
NTGD engineers use advanced flow modeling and computational fluid dynamics (CFD) analysis to optimize bore selection for every knife gate valve. They simulate how liquids and solids move through both full bore knife gate valve and reduced bore knife gate valve designs. These simulations reveal how changes in internal geometry affect flow efficiency and pressure loss. Engineers adjust the shape and size of the port to minimize turbulence and ensure consistent performance. CFD tools help NTGD predict how each valve will behave in real-world conditions, supporting reliable operation in mining, wastewater, and chemical applications.
NTGD’s commitment to engineering excellence ensures that each valve delivers optimal flow efficiency and minimal pressure loss, even under demanding process conditions.
Material and Geometry Optimization
Material selection plays a critical role in NTGD bore design. Engineers choose alloys and polymers that resist abrasion, corrosion, and chemical attack. They refine the internal geometry to reduce wear and extend service life. For full bore knife gate valve models, NTGD maximizes the open area to support slurry and pigging operations. For reduced bore knife gate valve options, they balance compact size with reliable shutoff. The team uses 3D modeling to test different shapes and thicknesses, ensuring that each valve meets strict performance standards.
- Engineers evaluate material durability for each application.
- Geometry adjustments help control pressure loss and improve flow efficiency.
Manufacturing and Quality Control
NTGD maintains strict quality control throughout the manufacturing process. Their engineers conduct product research and development based on customer needs, demonstrating a commitment to engineering excellence. Every valve undergoes rigorous inspection to verify dimensional accuracy and sealing integrity. NTGD’s manufacturing facilities hold multiple certifications, which guarantee consistent quality and safety:
| Certification | Description |
|---|---|
| ISO 9001 | Quality management system certification |
| ISO 45001 | Occupational health and safety management |
| ISO 14001 | Environmental management system certification |
These measures ensure that NTGD bore design meets the highest standards for reliability and durability. Customers receive valves that perform as specified, with proven resistance to wear and corrosion.
Application Scenarios and Selection Guide
When to Choose Full Port
Engineers select full port knife gate valves for applications that demand maximum flow and minimal pressure loss. Mining slurry pipelines often require this design. The abrasive nature of slurries can damage internal valve surfaces. Full port valves provide an unobstructed passage, reducing the risk of clogging and supporting the movement of cleaning pigs. The knife gate valve bore and port design: full-bore vs reduced-bore becomes critical in these scenarios.
Slurries contain liquid and solid particles. These particles can wear down valve components. NTGD full port valves use robust materials and advanced sealing to withstand these harsh conditions. Pigging lines also benefit from full port valves. The straight-through flow path allows cleaning pigs to pass without obstruction, maintaining pipeline integrity.
| Criteria | Description |
|---|---|
| Nature of the media | Consider the type of slurry and its properties, including particle size and chemical content. |
| Material selection | Choose materials that can withstand the abrasive nature of slurries and the operational environment. |
| Design choice | Opt for designs that facilitate effective sealing and prevent clogging, such as knife gate valves. |
| Operational parameters | Ensure the valve can handle the required pressure and temperature ratings for the application. |
Engineers recognize that knife gate valves feature a thin, sharp-edged gate. This gate slices through semi-solid materials, ensuring a tight seal. The design prevents solids from becoming trapped, which is crucial in slurry applications. Full port valves excel in pulp and paper, wastewater, and chemical industries where flow efficiency is a priority.
When Reduced Port is Suitable
Reduced port knife gate valves fit installations with space constraints or cost-sensitive requirements. Small pipelines in utility systems often use this design. The compact size and lighter weight simplify installation and reduce material costs. The knife gate valve bore and port design: full-bore vs reduced-bore influences the selection when engineers must balance performance with budget.
Dry solids transport lines and confined plant layouts benefit from reduced port valves. These valves maintain reliable shutoff and control, even with a smaller opening. NTGD reduced port valves offer dependable operation in power generation, pulp and paper, and chemical processing where full port dimensions are not practical.
Engineers choose reduced port valves for:
- Small diameter pipelines in utility systems
- Cost-driven projects with limited budgets
- Installations with restricted space
- Applications where moderate pressure loss is acceptable
Hybrid and Custom Port Solutions
Some processes require a tailored approach. Hybrid and custom port solutions address unique operational needs. NTGD bore design engineering supports customizations for special media, unusual pipeline sizes, or challenging flow conditions. Engineers may specify a port size between full and reduced to optimize flow efficiency and minimize pressure loss.
Hybrid designs suit applications with variable media properties or fluctuating flow rates. Custom port solutions help operators achieve precise control in sewage systems, granular media transport, or specialty chemical lines. NTGD engineers use flow modeling and CFD analysis to recommend the best configuration for each scenario.
Tip: Consult NTGD engineers early in the project to evaluate process requirements and select the optimal port design for long-term reliability.
Practical Selection Checklist
Engineers use a checklist to guide valve selection:
- Identify the media type (slurry, dry solids, sewage, chemicals).
- Assess pipeline diameter and available installation space.
- Determine flow efficiency and pressure loss requirements.
- Evaluate budget constraints and lifecycle costs.
- Consider maintenance access and frequency.
- Review operational parameters (pressure, temperature, abrasion).
- Decide if pigging or cleaning operations are required.
- Consult NTGD for custom or hybrid port solutions.
This checklist helps engineers match the knife gate valve bore and port design: full-bore vs reduced-bore to specific application needs.
Maintenance and Operational Impact
Wear, Erosion, and Repair Frequency
Valve designers observe that wear and erosion rates depend on both the bore design and the media characteristics. Full bore knife gate valve models from NTGD bore design typically show lower wear because the unobstructed flow path reduces turbulence. Reduced bore knife gate valve options may experience higher localized erosion, especially in abrasive slurry or dry solids applications. Engineers recommend regular inspection schedules for valves in harsh environments. Maintenance teams often track repair frequency using historical data and visual checks. NTGD bore design incorporates advanced materials to extend service intervals and minimize downtime.
Long-Term Pressure Loss and Energy Use
Pressure loss plays a significant role in long-term energy consumption. Full bore knife gate valve installations maintain low pressure loss, which helps operators control operational costs over time. Reduced bore knife gate valve systems may show increased pressure loss, especially as wear accumulates and internal surfaces degrade. Engineers calculate energy use by monitoring pump performance and system flow rates. NTGD bore design uses computational modeling to predict pressure loss and optimize valve geometry for each application. Operators who select the correct bore design can reduce operational costs and improve system reliability.
Tip: Regular monitoring of pressure loss helps maintenance teams identify early signs of valve wear and schedule timely repairs.
Spare Parts and Service Costs
Spare parts planning forms a key part of operational strategy. Full bore knife gate valve models often require fewer replacement parts due to lower wear rates. Reduced bore knife gate valve systems may need more frequent seat and gate replacements, especially in abrasive service. NTGD bore design supports easy access for maintenance, allowing technicians to replace critical components without removing the valve from the line. Service costs depend on repair frequency, spare parts availability, and technician labor. Engineers recommend keeping an inventory of common spares to minimize downtime and control operational costs.
| Valve Type | Typical Spare Parts Needed | Service Interval | Maintenance Complexity |
|---|---|---|---|
| Full Bore Knife Gate Valve | Seats, packing, gate | Longer | Simple |
| Reduced Bore Knife Gate Valve | Seats, gate, seals | Shorter | Moderate |
Maintenance planning ensures reliable operation and helps operators manage costs throughout the valve lifecycle.
Cost-Benefit Analysis: Full Port vs Reduced Port
Capital Cost Comparison
Valve designers often compare the initial investment for full port and reduced port knife gate valves. Full port models require more material and larger bodies to match the pipeline diameter. This increases manufacturing costs. Reduced port valves use smaller bodies and less material, which lowers the purchase price. NTGD bore design engineers recommend evaluating the total installed cost, including shipping and support structures. The following table highlights typical capital cost differences:
| Valve Type | Material Cost | Shipping Cost | Installation Cost |
|---|---|---|---|
| Full Port | Higher | Higher | Moderate |
| Reduced Port | Lower | Lower | Lower |
Full port valves suit large-diameter pipelines and critical flow applications. Reduced port valves fit budget-sensitive projects and small pipelines.
Lifecycle and Maintenance Costs
Lifecycle costs include maintenance, energy use, and downtime. Full port knife gate valves minimize pressure loss, which reduces pump energy and operational expenses. These valves experience less wear due to unobstructed flow, resulting in longer service intervals. Reduced port valves may show increased pressure loss, especially in abrasive service. Maintenance teams often replace seats and gates more frequently in reduced port models. NTGD bore design engineers select materials and geometries to extend valve life and reduce unplanned downtime.
Tip: Regular inspection and timely replacement of spare parts help control lifecycle costs for both valve types.
ROI with NTGD Port Designs
Return on investment depends on application needs and operational priorities. Full port valves deliver higher ROI in systems where flow efficiency and minimal pressure loss are critical. Reduced port valves offer strong ROI for installations with limited space or tight budgets. NTGD bore design combines advanced engineering and quality materials to maximize value over the valve’s lifespan. Valve specifiers should match the port design to process requirements for optimal performance and cost savings.
- Full port: Best for high-flow, low-pressure loss, and long-term reliability.
- Reduced port: Ideal for compact, cost-driven projects with moderate flow demands.
Best Practices for Specifiers
Key Questions for NTGD on Port Design
Specifiers often face complex choices when selecting between a full bore knife gate valve and a reduced bore knife gate valve. They should ask NTGD targeted questions to ensure the best fit for their process. Key questions include:
- What is the recommended bore size for my specific media and flow rate?
- Can NTGD provide bore optimization data or CFD analysis for my application?
- Which NTGD bore design options offer the best resistance to abrasion and corrosion?
- How does the selected port design affect maintenance intervals and spare parts planning?
- Are there custom or hybrid port solutions available for unique process requirements?
Tip: Request NTGD’s flow modeling results and material recommendations early in the specification process to support informed decision-making.
Evaluating Flow Data and CFD Results
Engineers rely on accurate flow data and CFD results to validate valve selection. NTGD bore design engineers use advanced simulation tools to predict pressure loss, turbulence, and wear patterns for both full bore knife gate valve and reduced bore knife gate valve models. Specifiers should review these results to confirm that the chosen valve meets process demands. A sample evaluation table:
| Parameter | Full Bore Valve | Reduced Bore Valve |
|---|---|---|
| Pressure Loss | Low | Moderate |
| Flow Efficiency | High | Adequate |
| Erosion Risk | Minimal | Higher |
Reviewing NTGD’s technical reports and CFD visualizations helps specifiers anticipate operational impacts and optimize system performance.
Aligning Port Choice with Process Needs
Valve selection must align with the specific requirements of each process. Best practices include:
- Identify process parameters such as pressure, temperature, flow rate, and fluid type.
- Ensure compliance with industry standards like API, ASME, and ISO.
- Select specialized valves for hazardous or abrasive applications.
- Confirm compatibility with existing plant infrastructure.
- Consider automation and remote monitoring for safety and efficiency.
- Conduct thorough testing and validation before commissioning.
- Plan routine maintenance and training for sustained valve performance.
Specifiers who follow these steps can match NTGD bore design to their operational needs, achieving reliable flow control and long-term value.
Full bore knife gate valve designs maximize flow efficiency and minimize pressure loss. Reduced bore knife gate valve options offer compact size and cost benefits for specific installations. NTGD bore design engineers match valve features to each application. Early engagement with NTGD ensures the best port selection. The following table shows key technical factors that influence valve choice:
| Technical Factors | Importance in Valve Selection |
|---|---|
| Pipe Size | Ensures compatibility with existing systems |
| Flow Rate | Affects valve performance and efficiency |
| Pressure Class | Determines operational pressure capability |
| Installation Conditions | Influences integration and functionality |
NTGD’s expertise supports reliable, efficient solutions for every process.
FAQ
What is the main difference between a full bore knife gate valve and a reduced bore knife gate valve?
A full bore knife gate valve matches the pipeline diameter, allowing unrestricted flow. A reduced bore knife gate valve has a smaller opening, which limits flow but saves space and cost.
When should engineers select a full bore knife gate valve?
Engineers choose a full bore knife gate valve for applications requiring minimal pressure loss and high flow efficiency. NTGD bore design supports mining slurry, pigging lines, and systems with abrasive or solid-laden media.
What are the advantages of a reduced bore knife gate valve?
A reduced bore knife gate valve offers a compact size and lighter weight. NTGD bore design makes it ideal for small pipelines, cost-sensitive projects, and installations with limited space.
How does NTGD bore design improve valve performance?
NTGD bore design uses advanced flow modeling and material selection. This approach optimizes flow efficiency, reduces wear, and extends service life for both full bore and reduced bore knife gate valve models.
Can NTGD provide custom port solutions for unique applications?
NTGD engineers develop custom and hybrid port solutions. They use CFD analysis to match valve geometry to specific process needs, ensuring reliable performance in challenging or specialized environments.
