When engineers ask knife gate valve wafer vs flanged vs lugged connections: what’s best?, the answer depends on system requirements. Each connection type suits unique installation, compatibility, and performance needs. Decision-makers must weigh knife gate valve wafer vs flanged vs lugged connections: what’s best? based on pressure, media, space, and maintenance. Key factors influencing knife gate valve wafer vs flanged vs lugged connections: what’s best? include application, material, design, actuation, sealing, pressure, temperature, maintenance, compliance, and value. NTGD offers all connection types, supporting every knife gate valve wafer vs flanged vs lugged connections: what’s best? scenario.
Key Takeaways
- Choose the right knife gate valve connection type based on your system’s pressure, media, and maintenance needs for optimal performance.
- Wafer-type connections are ideal for tight spaces and cost-effective solutions, especially in slurry and wastewater applications.
- Lug-type connections provide strong mechanical stability and allow for easy one-sided disassembly, making them suitable for dead-end service.
- Flanged connections excel in high-pressure and corrosive environments, offering excellent sealing and durability for demanding applications.
- Regular maintenance and proper installation techniques are crucial to extend the lifespan and reliability of all knife gate valve connections.
Why Connection Type Matters
Impact on System Performance
Engineers recognize that valve connection types play a critical role in system reliability and efficiency. The choice between wafer vs flanged knife gate valve, lugged knife gate valve, and other NTGD knife gate connection type options directly affects installation, sealing, and long-term performance. Each connection style offers unique design features that suit specific industrial needs. The table below summarizes how different valve connection types impact system performance:
| Valve Type | Design Features | Applications | Advantages | Limitations |
|---|---|---|---|---|
| Wafer-Type | Slim, compact body; fits between flanges | Slurry, wastewater | Cost-effective, easy to install | Not suitable as end-of-line valve |
| Lug-Type | Threaded lugs; allows independent bolting | Dead-end service | Strong mechanical stability | Heavier, higher cost than wafer |
| Flanged | Full flanged ends; rigid body | High-pressure, corrosive slurries | Excellent sealing, reliable under vibration | Higher weight and cost |
| Butt Weld | Valve ends welded directly to pipeline | High-pressure, high-temperature | Leak-free, extremely durable | Requires skilled welding |
| Clamped | Quick-release clamps, no bolts or welding | Sanitary, food, pharmaceutical | Fast installation/removal, easy cleaning | Limited pressure rating |
Selecting the right valve connection types ensures proper alignment, optimal sealing, and system integrity under varying pressure conditions. For example, flanged connections provide robust sealing in high-pressure or corrosive environments, while wafer-type valves offer a compact solution for space-constrained installations.
Risks of Incorrect Connection Choice
Choosing the wrong valve connection types can lead to operational inefficiencies and increased maintenance costs. Improper selection may cause leaks, misalignment, or even system failure. The following points highlight the risks and maintenance implications:
- In-line maintenance valves, such as those with quick-release or modular designs, can reduce downtime and lower maintenance costs by up to 60%.
- Fast maintenance procedures minimize operational interruptions, sometimes completing repairs in as little as 12 minutes.
- Systems with inappropriate connections may require full valve removal, increasing labor and downtime.
The industrial valve connection guide recommends evaluating all types of valve connections based on media, pressure, and maintenance needs. NTGD knife gate connection type options help engineers match the right solution to each application, ensuring long-term reliability and cost efficiency.
Knife Gate Valve Connections Overview
Wafer-Type Connections
NTGD wafer-type knife gate valve connections offer a compact and lightweight solution for many industrial systems. The wafer design fits between two pipe flanges, making installation straightforward and ideal for space-constrained environments. The valve features a one-piece cast body with guides for the gate and seat wedges, supporting efficient flow and low pressure drop. Engineers often select wafer connections for slurry and wastewater pipelines, where easy installation and maintenance are critical. The valve plate includes an oblique cut at the bottom, resembling a knife edge, which allows for smooth closure and effective cutting of the medium. The structure prevents medium deposition and uses a U-shaped sealing ring to enhance sealing performance. The face-to-face dimension complies with industry standards, and flow direction is clearly marked on the body. Wafer-style butterfly valve connections also provide similar benefits in compact systems.
| Feature Description |
|---|
| Wafer-type structure, compact and lightweight. |
| Completely open channel to prevent medium deposition. |
| U-shaped sealing ring for enhanced sealing performance. |
| Elastic sealing strip for outer seal, adjustable via screws and pressing plates. |
| Low flow resistance. |
| Easy installation and maintenance. |
Lug-Type Connections
NTGD lug-type knife gate valve connections deliver strong mechanical stability and versatility. The lug design uses threaded lugs that allow independent bolting to each pipe flange, which is essential for dead-end service and discharge locations. During installation, engineers bolt flanges on both sides to protect the sealing surfaces and extend sealing life. Lug connections use shorter bolts that do not pass through the entire valve body, minimizing leakage risks. Bolt length must match flange and valve thickness for a secure fit. Lug-style butterfly valve connections also provide reliable performance in heavy industries and corrosive media environments. The direct bolt fixing method ensures structural stability and better sealing under higher pressure and temperature conditions.
Flanged Connections
NTGD flanged knife gate valve connections provide robust sealing and easy maintenance for demanding applications. The flange connections feature a U-shaped gasket that delivers excellent sealing performance, especially in high-pressure and corrosive systems. The full-bore design allows strong medium throughput and simplifies maintenance, as engineers can access the valve without removing it from the pipeline. The knife function effectively cuts off debris, preventing leakage and ensuring reliable operation. The compact size and ultra-short structural length save material and reduce space occupation. Flange connections suit high-pressure, high-wear, and chemical environments, where durability and sealing are top priorities.
Tip: NTGD offers a full range of knife gate valve connection types, including wafer, lug, and flanged options, to meet diverse installation and performance requirements.
Knife Gate Valve Wafer vs Flanged vs Lugged Connections: What’s Best?
Selecting the right valve connection types is essential for system reliability and operational efficiency. NTGD offers wafer, lug, and flange connections to meet diverse industrial needs. Each type presents unique strengths and considerations. The following analysis helps engineers and technical staff make informed decisions.
Wafer-Type Pros and Cons
Wafer connections deliver a compact solution for tight installation spaces. NTGD wafer-type knife gate valves fit between flanges, minimizing the footprint and simplifying alignment. Engineers often choose wafer or lugged type flanges for retrofit projects or systems with limited space.
Advantages:
- Minimal installation space required.
- Lightweight design reduces handling effort.
- Lower cost compared to other valve connection types.
- Quick installation and removal.
- Suitable for slurry and wastewater pipelines.
Considerations:
- Pressure rating typically reaches PN10 and 150LBS, which fits many standard applications.
- Not recommended for dead-end service.
- Maintenance is straightforward, but access may be limited in some layouts.
Tip: Wafer connections excel in space-constrained environments and provide cost-effective solutions for low to medium pressure systems.
Space Comparison:
- Wafer type valves are compact and require minimal installation space, making them ideal for tight areas.
Weight and Cost Table:
| Valve Type | Weight (lbs) | Cost Comparison |
|---|---|---|
| Knife Gate Valve | < 300 | Lower than ANSI gate valve |
| ANSI Gate Valve | > 1200 | Higher than knife gate valve |
Pressure Rating Table:
| Valve Type | Pressure Rating |
|---|---|
| Wafer-type | PN10 and 150LBS |
| Other types (HD) | 0 – 1450 psi |
| Other types (MH) | 0 – 365 psi |
Lug-Type Pros and Cons
Lug connections provide robust mechanical stability and flexibility for industrial valve connection guide scenarios. NTGD lug-type knife gate valves feature threaded lugs, allowing independent bolting and easy one-sided disassembly.
Advantages:
- Enables dead-end service; engineers can remove one side of the pipeline without affecting the other.
- Strong mechanical stability for larger diameter systems.
- Suitable for high-pressure and abrasive media.
- Maintenance is simplified due to independent bolting.
Considerations:
- Requires some installation space for lugs.
- Heavier than wafer connections.
- Cost is higher than wafer types but justified by performance in demanding applications.
Lug-type knife gate valve connections perform effectively in dead-end service scenarios, providing a robust solution that enables one-sided disassembly of the pipeline without impacting the other side.
Space Comparison:
- Lug type valves provide a balance, being easier to install in larger diameter systems but still needing some space for the lugs.
Typical Use Cases Table:
| Industrial Sector | Applications |
|---|---|
| Wastewater Treatment | Sludge lines, Dewatering systems, Digester feed, Inlet/outlet isolation |
| Mining & Mineral Processing | Cyclone feed, Flotation circuits, Concentrate handling, Tailings discharge |
| Pulp & Paper Industry | Pulp stock lines, Rejects handling, Bleach plant isolation, Black liquor |
| Food & Chemical Plants | Viscous liquids, sugar slurries, corrosive chemicals, safety compliance |
Flanged Pros and Cons
Flange connections offer superior sealing and durability for high-pressure and corrosive environments. NTGD flanged knife gate valves use full flanged ends and U-shaped gaskets to ensure reliable operation.
Advantages:
- Excellent sealing performance, especially under vibration and thermal cycling.
- High resistance to mechanical stress and long-term durability.
- Facilitates easier maintenance and replacement.
- Suitable for high-pressure, high-temperature, and corrosive media.
Considerations:
- Requires more installation space due to flange structure.
- Heavier than wafer and lug types.
- Cost is higher, reflecting the advantages of flange connections in demanding environments.
Space Comparison:
- Flanged type valves require more space due to their complex installation requirements, suitable for high-pressure applications.
Durability and Vibration Resistance:
- Flanged connections are more robust and durable than threaded connections, especially in high-pressure and high-temperature settings.
- They distribute mechanical stress evenly, enhancing resistance to vibration and thermal cycling.
- Flanged valves facilitate easier maintenance and replacement, contributing to their long-term durability.
Quick Comparison Table
| Feature | Wafer-Type | Lug-Type | Flanged |
|---|---|---|---|
| Space Requirement | Minimal | Moderate | High |
| Weight | Light | Moderate | Heavy |
| Cost | Low | Moderate | High |
| Pressure Rating | PN10, 150LBS | Up to 1450 psi (HD Series) | Up to 1450 psi (HD Series) |
| Maintenance | Easy | Simplified, one-sided access | Easiest, full access |
| Dead-End Service | Not suitable | Excellent | Not typical |
| Typical Use Cases | Slurry, wastewater, retrofit | Mining, pulp, chemical, dead-end | High-pressure, corrosive, vibration |
Note: NTGD offers a full range of valve connection types to adapt to space, pressure, and maintenance requirements. Engineers should match the connection type to the specific needs of each system for optimal performance and cost efficiency.
Application Scenarios for Connections
Wafer-Type Applications
Engineers often select wafer connections for systems where space and weight matter. Wafer valves fit between flanges, making them ideal for retrofit projects and compact installations. Chemical processing plants and building plumbing systems frequently use wafer knife gate valves. These valves perform well in water and wastewater processing, especially in pipelines that transport slurry or liquids with suspended solids. Wafer connections provide a cost-effective solution for low to medium pressure applications.
- Chemical processing plants
- Building plumbing systems
- Slurry pipelines in mining
- Water and wastewater processing facilities
Wafer valves offer quick installation and removal, which benefits maintenance teams working in tight spaces.
Lug-Type Applications
Lug connections excel in pipelines that require dead-end service or one-sided disassembly. Wastewater and slurry applications benefit from lugged knife gate valves due to their ability to handle solids and abrasive media. Engineers choose lug valves for their resistance to corrosion and abrasion. The space-saving design and minimal maintenance requirements make lug connections suitable for mining, pulp, and chemical industries.
- Ability to handle slurries and solids
- Resistance to corrosion and abrasion
- Space-saving design
- Minimal maintenance requirements
Lug valves allow engineers to isolate sections of a pipeline without shutting down the entire system.
Flanged Applications
Flanged connections provide robust sealing and durability in high pressure applications. NTGD knife gate connection type with flanged ends suits pipelines that transport corrosive or abrasive media. Flanged valves perform reliably in chemical plants, power generation, and high-pressure steam lines. The table below highlights material choices and their benefits for flanged valves:
| Material | Benefits |
|---|---|
| 316 Stainless Steel | Excellent heat resistance and corrosion protection in saturated or superheated steam. |
| Forged Steel | High tensile strength and durability for high-pressure steam lines. |
| Forged Carbon Steel | Rugged option for extreme pressure conditions. |
Flanged valves feature bi-directional sealing and robust construction, which ensures reliable operation even under vibration and thermal cycling.
Choosing Based on Media and Maintenance
Engineers must match connection types to the media and maintenance needs of each pipeline. Abrasive media require elastomers with high resistance, such as Viton or natural rubber. Maintenance planning includes regular seat inspections and monitoring gate edge condition. Troubleshooting common issues, such as minor leaks or sticking gates, involves cleaning or replacing seats and realigning packing glands.
| Elastomer Type | Properties |
|---|---|
| EPDM | Good for water, many acids, up to ~120°C. |
| Nitrile (Buna-N) | Handles oily or fatty liquids well. |
| Natural Rubber | High abrasion resistance but less chemical tolerance. |
| Viton / FKM | Superior chemical and temperature resistance for aggressive media. |
Engineers rely on the industrial valve connection guide to select the right NTGD knife gate connection type for each application, ensuring long-term reliability and efficient maintenance.
NTGD Connection Options
Full Range of Connection Types
NTGD supplies a comprehensive selection of knife gate valve connections to meet the demands of modern industry. The product line covers wafer, semi lug, and full lug designs, each engineered for specific installation and operational needs. NTGD valves support a wide range of pressure ratings and sizes, ensuring compatibility with diverse pipeline systems. The table below summarizes the main specifications:
| Specification | Details |
|---|---|
| Valve Type | Wafer, Semi lug, Full lug |
| Pressure Rating | PN10, 150PSI, JIS10K |
| Size Range | DN50 to DN1200 |
These options allow engineers to select the ideal connection for applications requiring a secure and fluid tight seal, whether for standard or high pressure and temperature variants.
Engineering Selection Guidance
NTGD recommends a systematic approach when choosing the right connection. Engineers should evaluate several key factors to ensure optimal performance and a secure and fluid tight seal:
- Material compatibility: Select valve body and seat materials that resist corrosion, temperature, and abrasion.
- Pressure and temperature rating: Confirm the valve matches the system’s operating conditions.
- Actuation method: Choose manual, pneumatic, hydraulic, or electric actuation based on control requirements.
- Installation space: Assess pipeline dimensions and ensure easy access for maintenance.
This guidance helps users match the NTGD knife gate connection type to their specific process, whether they need a wafer vs flanged knife gate valve or a lugged knife gate valve for challenging environments.
Quality Assurance Across Connections
NTGD maintains strict quality standards across all connection types. The company uses advanced machining to achieve precise tolerances and consistent performance. Every valve undergoes thorough testing to verify sealing integrity and durability. NTGD selects high-grade materials for all components, ensuring resistance to wear and corrosion. These practices guarantee that each connection delivers reliable service and meets the expectations of the industrial valve connection guide.

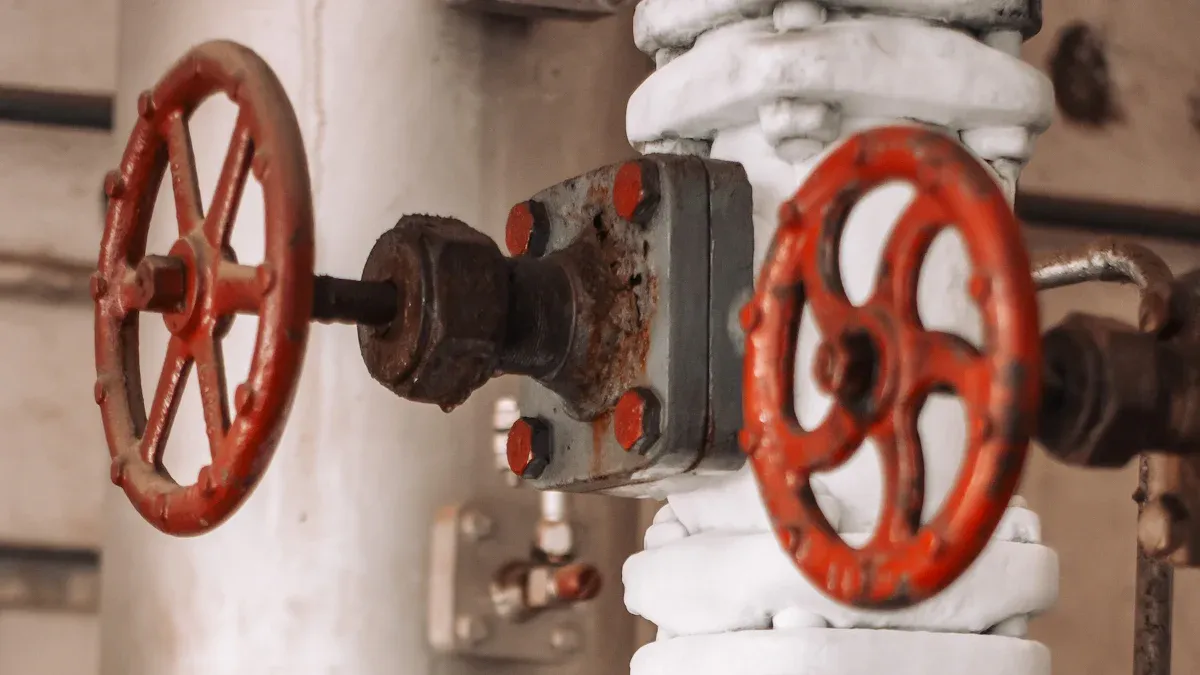

Installation and Maintenance
Wafer-Type Considerations
Engineers recognize that proper installation of wafer-type knife gate valves ensures reliable performance and long-term sealing. The following steps help maintain alignment and prevent leaks:
- Select the right location for the valve, considering system design and accessibility.
- Prepare the work area, ensuring cleanliness and readiness of tools.
- Inspect the valve for any visible damage or manufacturing defects.
- Confirm the flow direction matches the pipeline layout.
- Install the valve between flanges, following NTGD knife gate connection type guidelines.
- Connect the actuator if required, verifying smooth operation.
- Check and tighten fasteners according to specifications.
- Operate the valve manually to confirm smooth movement and proper sealing.
- Inspect for leaks with the valve closed.
- Perform a test run to validate functionality.
- Document installation and test results.
- Train personnel and label the valve for future reference.
Tip: Regular inspection and documentation help prevent operational issues and support efficient maintenance.
Lug-Type Considerations
Lugged knife gate valves require careful attention during installation to ensure mechanical stability and leak-free operation. Technical staff follow these guidelines:
- Bolt tightening uses a cross-over pattern, applying manufacturer-recommended torque for even pressure distribution.
- Over-tightening bolts can damage the valve body or deform flanges, leading to leaks. Always follow torque specifications.
- Gasket placement is critical. Center the gasket between the valve and pipeline flanges, selecting materials suitable for the operating environment.
Note: Adhering to the industrial valve connection guide reduces installation errors and extends service life.
Flanged Considerations
Flanged connections demand thorough inspection and precise alignment. Engineers check gasket integrity and select materials compatible with the media. They ensure bolts are tightened evenly to maintain a secure seal. Routine maintenance includes visual inspection for wear, corrosion, or vibration damage. Access to flanged valves is straightforward, allowing quick replacement or servicing. NTGD technical staff recommend scheduled inspections to maintain optimal performance.
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Visual Inspection | Monthly | Detect leaks or wear |
| Bolt Retorque | Quarterly | Maintain seal integrity |
| Gasket Replacement | Annually | Prevent leakage |
Scheduled maintenance and proper installation techniques help maximize the lifespan of all connections.
Decision Guide for Engineers
Key Selection Questions
Engineers often face complex choices when selecting the right NTGD knife gate connection type. A structured approach helps ensure the best fit for each system. The following checklist addresses the most critical factors:
- What is the maximum operating pressure in the pipeline?
- Does the media contain solids, slurry, or corrosive chemicals?
- How much installation space is available?
- Will the system require frequent maintenance or quick valve replacement?
- Is dead-end service or one-sided pipeline disassembly necessary?
- Does the application involve vibration or thermal cycling?
Project teams should answer these questions before choosing between wafer vs flanged knife gate valve or lugged knife gate valve options. This process aligns with the industrial valve connection guide and supports reliable, long-term operation.
Tip: Accurate answers to these questions reduce the risk of mismatched connections and costly downtime.
Quick Decision Table
The table below summarizes the recommended connection type based on common engineering requirements. Use this as a quick reference during project planning or procurement.
| Requirement | Wafer-Type | Lug-Type | Flanged |
|---|---|---|---|
| Limited Space | ✅ Best Choice | Possible | Not Ideal |
| High Pressure | Possible | ✅ Best Choice | ✅ Best Choice |
| Slurry/Solids Media | ✅ Best Choice | ✅ Best Choice | ✅ Best Choice |
| Dead-End Service | Not Suitable | ✅ Best Choice | Possible |
| Frequent Maintenance | Possible | ✅ Best Choice | ✅ Best Choice |
| Vibration/Thermal Cycling | Possible | Possible | ✅ Best Choice |
| Retrofit/Upgrade Projects | ✅ Best Choice | Possible | Not Ideal |
Engineers can use this table to match system needs with the optimal NTGD knife gate connection type. For example, a mining slurry line with limited space may benefit from a wafer connection, while a high-pressure chemical line with vibration concerns will perform best with a flanged connection.
Note: Consult the NTGD technical team for specialized applications or when requirements overlap.
Engineers see clear differences among wafer, flanged, and lugged connections. Wafer valves save space and suit retrofit projects. Lugged designs offer dead-end service and strong stability. Flanged types provide top sealing for high-pressure systems. The best choice depends on system needs. The decision guide helps match each connection to specific requirements. NTGD technical staff recommend consulting experts for complex installations.
FAQ
What is the main difference between wafer vs flanged knife gate valve connections?
Engineers see that wafer connections fit between flanges and save space. Flanged connections use bolted ends for higher pressure and better sealing. The NTGD knife gate connection type selection depends on system pressure, space, and sealing needs.
When should an engineer choose a lugged knife gate valve?
A lugged knife gate valve works best for dead-end service or when one side of the pipeline needs removal. The industrial valve connection guide recommends lugged types for systems requiring strong mechanical stability and easy maintenance.
Can NTGD knife gate valves handle abrasive or corrosive media?
NTGD knife gate connection types, including wafer, lugged, and flanged, use high-grade materials and advanced sealing. These valves perform reliably in abrasive slurries and corrosive chemical pipelines, following the industrial valve connection guide for material selection.
How does installation space affect valve selection?
Limited installation space often leads engineers to select wafer vs flanged knife gate valve types. Wafer valves require less space and suit retrofit projects. Flanged valves need more room but offer superior sealing for high-pressure applications.
What maintenance tips help extend the life of NTGD knife gate valves?
Regular inspection, correct bolt torque, and proper gasket selection keep NTGD knife gate connection types reliable. Engineers should follow the industrial valve connection guide for scheduled maintenance and use only compatible replacement parts.
