Knife Gate Valve Pressure Classes & Standards (MSS-SP81)
Pressure Classes Defined
Knife Gate Valve Pressure Classes & Standards (MSS-SP81) set clear boundaries for safe valve operation. MSS-SP81 applies to bonnetless, metal-seated knife gate valves ranging from NPS 2 to 36. For sizes DN 2″ to 24″, the standard limits the maximum working pressure to 150 psi. This pressure class ensures that valves can withstand typical industrial demands without risk of failure.
The standard also specifies temperature limits. Valves must operate reliably between 32°F and 150°F. Material requirements are strict. MSS-SP81 calls for ASTM A216 WCB cast steel for the valve body. This material resists corrosion and maintains strength under pressure.
Pressure testing forms a critical part of Knife Gate Valve Pressure Classes & Standards (MSS-SP81). Each valve must pass a hydrostatic test at 1.5 times its rated working pressure. This test confirms the valve’s ability to handle unexpected surges and prevents leaks during operation.
Note: MSS-SP81 does not cover valves with bonnets or soft seats. It focuses on robust, metal-seated designs for demanding applications.
Why Standards Matter
Standards like MSS-SP81 protect both people and equipment. They provide a benchmark for manufacturers and users. When engineers select valves that meet Knife Gate Valve Pressure Classes & Standards (MSS-SP81), they reduce the risk of accidents and unplanned downtime.
Non-compliance with these standards can lead to serious incidents. The table below shows a documented safety event caused by failure to follow proper pressure class requirements:
| Incident Description | Cause | Consequences |
|---|---|---|
| Worker injured by detached end cap of pneumatic actuator on knife gate valve | Overpressure event due to failure of single-stage nitrogen regulator | Serious injuries to worker, ongoing investigation |
Reliability also improves when valves meet standardized pressure classes. The following table highlights key features and benefits:
| Feature | Benefit |
|---|---|
| Reinforced body structure | Resists vibration-induced fatigue |
| Precision machining | Ensures consistent sealing under variable pressure |
| Lug mounting | Prevents flange separation during pressure spikes |
Knife Gate Valve Pressure Classes & Standards (MSS-SP81) help engineers match valve performance to system requirements. This alignment prevents costly failures and extends equipment life. By following these standards, NTGD valves deliver consistent results in harsh environments.
MSS-SP81 Pressure Class Details
Size & Pressure Limits
MSS-SP81 defines strict size and pressure limits for knife gate valves. The standard covers valves from NPS 2 (DN 50) up to NPS 36 (DN 900). For most applications, the working pressure remains consistent across a wide range of sizes. Valves from DN 2″/50 to 24″/600 operate at a maximum working pressure of 150 psi (10 bar). Larger sizes, such as DN 30″/750 and DN 36″/900, have a reduced working pressure of 100 psi (7 bar). This reduction accounts for the increased mechanical stress on larger valve bodies.
| Size (DN) | Working Pressure (psi) | Working Pressure (bar) |
|---|---|---|
| DN 2″/50 to 24″/600 | 150 psi | 10 bar |
| DN 30″/750 | 100 psi | 7 bar |
| DN 36″/900 | 100 psi | 7 bar |
Engineers must select the correct size and pressure class to ensure safe operation. Knife Gate Valve Pressure Classes & Standards (MSS-SP81) provide a reliable reference for these decisions. Standard knife gate valves in the NPS 2–24 (DN 50–600) range use a design pressure of 150LB, which matches many industrial system requirements.
Material & Construction
Material selection plays a critical role in valve performance and longevity. MSS-SP81 mandates specific materials for the valve body to guarantee strength and corrosion resistance. The most common body material is carbon steel, designated as ASTM A216 WCB. For applications requiring higher corrosion resistance, stainless steel options are available, including ASTM A351 CF8 and ASTM A351 CF8M.
| Body Material | ASTM Designation |
|---|---|
| Carbon Steel | ASTM A216 WCB |
| Stainless Steel | ASTM A351 CF8 |
| Stainless Steel | ASTM A351 CF8M |
Valve construction under MSS-SP81 focuses on bonnetless, metal-seated designs. This approach eliminates potential leak paths and simplifies maintenance. The robust body structure resists deformation under pressure, while precision machining ensures a tight seal. Knife Gate Valve Pressure Classes & Standards (MSS-SP81) require these construction features to maintain performance in demanding environments.
Note: MSS-SP81 does not permit soft-seated or bonneted designs. Only metal-seated, bonnetless valves meet the standard.
Pressure Testing Requirements
Pressure testing verifies the integrity and safety of each valve before installation. MSS-SP81 requires every valve to undergo a hydrostatic test at 1.5 times its rated working pressure. For a valve rated at 150 psi, the test pressure reaches 225 psi. This process checks for leaks and structural weaknesses that could cause failure during service.
The standard specifies that both the body and the seat must pass the hydrostatic test. Testing at elevated pressures ensures the valve can withstand pressure surges and unexpected system conditions. Knife Gate Valve Pressure Classes & Standards (MSS-SP81) make pressure testing a mandatory step, which helps prevent accidents and extends equipment life.
Engineers rely on these rigorous testing requirements to confirm that each valve meets the necessary safety and reliability standards. Proper testing, combined with correct material selection and sizing, forms the foundation of a safe and efficient knife gate valve installation.
ANSI Pressure Classes
Common ANSI Ratings
ANSI knife gate valve pressure classes provide a standardized way to specify the maximum allowable pressure for valves at a given temperature. These ratings help engineers select the right valve for each application. The most common ANSI pressure classes for knife gate valves appear in the table below:
| Class | Pressure (psi) at 100°F | Common Applications |
|---|---|---|
| Class 150 | Up to 285 | Water supply systems, light industrial processes |
| Class 300 | Up to 740 | Chemical processing, oil and gas pipelines |
| Class 600 | Up to 1480 | High-pressure steam systems, oil and gas production |
| Class 900 | Up to 2250 | High-pressure applications in various industries |
| Class 1500 | Up to 3000 | Specialized high-pressure applications |
| Class 2500 | Up to 4730 | Offshore oil platforms, high-pressure power generation |
Most NTGD knife gate valves for industrial use fall within the 3 to 24-inch size range and use ANSI B16.5 Class 150, rated up to 150 psi. This class meets the needs of many water, wastewater, and light industrial systems.
Flange & Pressure Relationship
Pressure classes for valves, including ANSI knife gate valves, do not depend directly on flange pressure ratings. Instead, engineers determine the pressure class based on the valve’s construction material and the temperature of the fluid. The numerical class, such as 150 or 300, does not represent the actual working pressure. It serves as a dimensionless indicator of operational limits.
- Pressure classes define operational pressure and temperature values for valves and flanges.
- The class number does not equal the valve’s maximum pressure.
- Material and temperature determine the true pressure rating.
Flange dimensions play a critical role in pressure containment. The size and quality of the flange affect sealing performance and mechanical stability. Proper flange alignment ensures a tight seal and extends equipment life. NTGD continuously improves flange structures to enhance sealing reliability, especially under pressure fluctuations. Flanged knife gate valves offer robust sealing and mechanical strength, making them suitable for high-pressure and corrosive environments.
ANSI Testing & Certification
ANSI standards require rigorous testing and certification for each knife gate valve pressure class. Manufacturers must test valves under specified pressure and temperature conditions to verify performance. Hydrostatic testing checks for leaks and structural integrity. Certification ensures that each ANSI knife gate valve meets the required safety and reliability standards. This process gives engineers confidence that the valve will perform as expected in demanding applications.
Note: Proper testing and certification are essential for compliance and long-term system safety. Always verify that the selected valve meets ANSI requirements for the intended service conditions.
DIN Pressure Ratings
PN Rating System
DIN standards use the PN (Pressure Nominal) rating system to classify knife gate valve pressure classes. PN ratings indicate the maximum allowable pressure in bar at a reference temperature, usually 20°C. Engineers rely on PN ratings to match valve specifications with system requirements. PN numbers, such as PN10 or PN16, appear on valve markings and technical documents. This system simplifies valve selection for European industrial applications and ensures compatibility with piping systems.
Tip: PN ratings provide a direct reference to pressure limits, making it easier to compare valves across different manufacturers.
Typical DIN Classes
DIN knife gate valves cover a wide range of pressure classes. The table below shows common series and their pressure ratings, along with compatible flange drillings:
| Series | Pressure Rating | Flange Drilling |
|---|---|---|
| HD | 0 – 100 bar | PN40, PN63, PN100, ANSI Class 600 |
| HSI | 0 – 16 bar | PN16, ANSI Class 150, DIN 11864-2 |
| VK | 0 – 2.5 bar | Special flange |
| VN | 0 – 10 bar | PN10, BS10-D, BS10-E, AS2129-D, AS2129-E |
| MG | 0 – 16 bar | PN10, PN16, ANSI Class 150, BS10-D, BS10-E, AS2129-D, AS2129-E |
Engineers select the appropriate DIN class based on system pressure, flange compatibility, and media characteristics. This approach ensures that the knife gate valve pressure class matches the demands of the application.
DIN vs ANSI/MSS Differences
DIN, ANSI, and MSS SP81 standards differ in pressure rating systems, flange dimensions, and testing requirements. DIN uses the PN system, while ANSI knife gate valve standards rely on class numbers such as 150 or 300. MSS SP81 focuses on specific construction and pressure limits for bonnetless, metal-seated valves. These differences impact NTGD knife gate valve selection for international projects. Engineers must evaluate actuation types, control precision, and operational safety to ensure reliable performance. Selection depends on operational conditions, control requirements, and media properties. Proper alignment of standards and valve features enhances efficiency and safety in global installations.
NTGD Pressure Class Selection
Application-Based Selection
Engineers at NTGD evaluate several factors before selecting a knife gate valve pressure class for a specific application. The process starts with a review of system requirements and operating conditions. The following table outlines key factors that influence the selection:
| Factor | Description |
|---|---|
| Design Type | Select based on media type, pressure direction, and control precision for optimal performance. |
| Material Compatibility | Ensure valve materials resist corrosion, temperature, and abrasion. |
| Pressure and Temperature | Confirm the valve can withstand the system’s operating conditions. |
| Actuation Method | Choose the appropriate actuation method (manual, pneumatic, hydraulic, electric) for control. |
| Installation Space | Check pipeline dimensions and accessibility for maintenance. |
NTGD engineers match the knife gate valve pressure class to the demands of the process. For example, they select MSS SP81 valves for slurry lines and ANSI knife gate valves for water systems. This approach ensures each valve meets the specific needs of the application.
Safety Margins & Testing
Safety remains a top priority in pressure class selection. NTGD applies safety coefficients to account for unexpected surges and system variations. Industry standards such as B31.1 and B31.3 require engineers to consider both design pressure and maximum sustained operating pressure. The table below summarizes how these requirements influence selection:
| Evidence Description | Key Points |
|---|---|
| Design Pressure vs. Operating Pressure | Emphasizes the need for safety coefficients and understanding both design and operating pressures. |
| B31.1 and B31.3 Standards | Highlights differences in methodology, especially regarding internal design pressure requirements. |
| Piping Specifications | Shows how maximum pressure ratings of flange classes can influence pressure class selection. |
NTGD tests every valve according to MSS SP81, ANSI, or DIN requirements. Hydrostatic testing at 1.5 times the rated working pressure verifies structural integrity and leak resistance. This process ensures that each knife gate valve pressure class delivers reliable performance and safety.
Custom Solutions
NTGD recognizes that some systems require custom solutions. Engineers may recommend special materials or unique actuation methods for challenging environments. They design valves to meet MSS SP81, ANSI, or DIN standards, depending on the project location and regulatory requirements. NTGD also offers modifications for installation space constraints or unusual media properties. This flexibility allows NTGD to deliver knife gate valves that fit complex industrial systems while maintaining compliance and safety.
Tip: Consult NTGD technical experts for guidance on selecting the right knife gate valve pressure class for unique or demanding applications.
Choosing the Right Class
Application Factors
Engineers must evaluate several factors before selecting a knife gate valve pressure class. The process begins with understanding the application. System pressure, media type, and temperature play key roles. For abrasive slurry lines, MSS SP81 valves offer robust metal-seated designs. Water supply systems often use ANSI knife gate valve Class 150 for reliable performance. DIN standards suit European installations where PN ratings match local piping. Engineers should review the following:
- System Pressure: Confirm maximum and surge pressures.
- Media Characteristics: Identify solids, corrosives, or temperature extremes.
- Installation Environment: Assess space, accessibility, and flange compatibility.
Tip: Always match the knife gate valve pressure class to the most demanding condition in the system.
Cost vs Safety
Balancing cost and safety is essential in valve selection. Lower pressure classes may reduce initial costs, but they can compromise reliability. Higher classes, such as ANSI Class 300 or MSS SP81, provide greater safety margins. Engineers should compare the long-term benefits of robust construction against upfront expenses. The table below highlights key considerations:
| Pressure Class | Initial Cost | Safety Margin | Maintenance Needs |
|---|---|---|---|
| MSS SP81 | Moderate | High | Low |
| ANSI Class 150 | Low | Moderate | Moderate |
| DIN PN16 | Moderate | Moderate | Low |
Selecting a valve with a higher knife gate valve pressure class often reduces maintenance and downtime.
Procurement Tips
Procurement personnel should verify technical specifications before purchasing. They must check compliance with MSS SP81, ANSI, or DIN standards. Documentation should include pressure ratings, material certificates, and test results. The following checklist helps ensure proper selection:
- Review pressure and temperature ratings.
- Confirm standard compliance (MSS SP81, ANSI, DIN).
- Request hydrostatic test certificates.
- Verify flange and material compatibility.
- Consult NTGD experts for custom requirements.
Note: Proper documentation and expert consultation prevent costly errors and ensure safe operation.

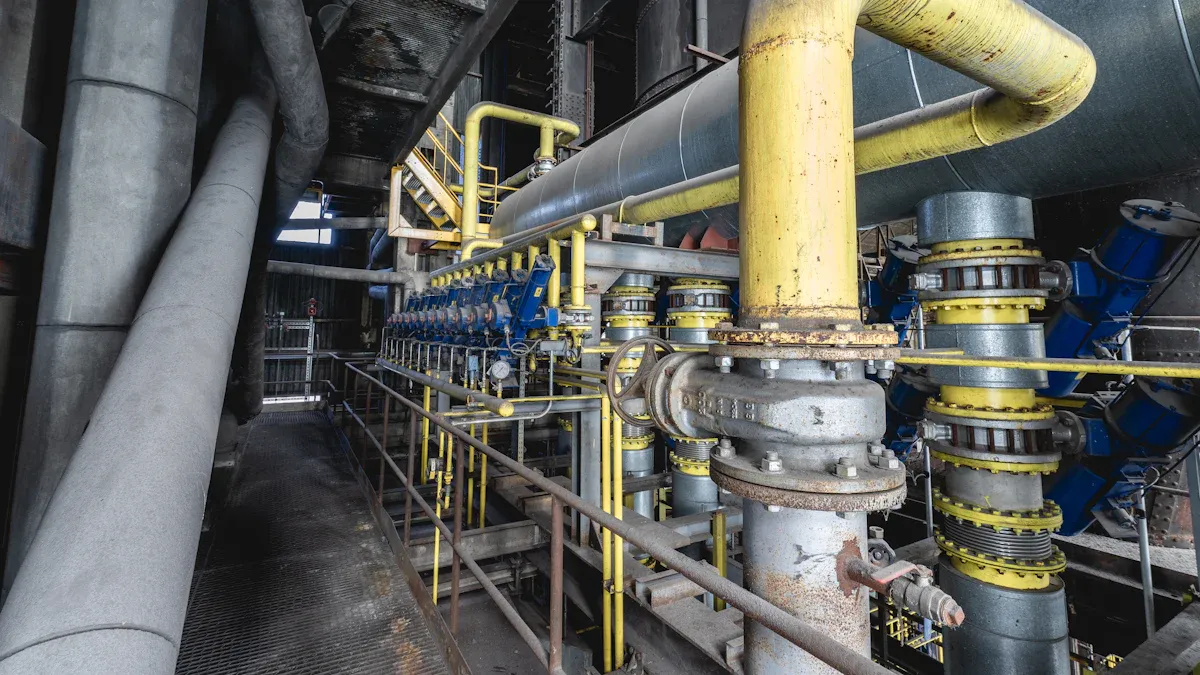

Case Comparison
MSS-SP81 for Slurry Lines
Engineers often select MSS-SP81 knife gate valves for slurry lines in mining and wastewater plants. These valves use a bonnetless, metal-seated design that resists abrasion from solids. The robust construction prevents deformation under pressure surges. Operators report fewer leaks and longer service life in harsh environments. The strict requirements of Knife Gate Valve Pressure Classes & Standards (MSS-SP81) ensure that each valve can handle the high solids content and variable pressures found in slurry systems. Maintenance tasks, such as cleaning the valve seat and inspecting components, become easier due to the simple design. This approach reduces downtime and improves reliability.
ANSI Class 150 for Water
Water treatment facilities and municipal systems often use ANSI Class 150 knife gate valves. These valves handle moderate pressures and clean media. The ANSI standard provides clear guidelines for pressure and temperature limits. Engineers choose ANSI Class 150 for its balance of cost and performance. The valves require regular lubrication and packing adjustments to maintain a tight seal. Operators find that these valves offer reliable operation with manageable maintenance needs. The clear pressure class system helps teams match valves to system requirements, reducing the risk of overpressure incidents.
Real-World Impact
Standard selection directly affects long-term reliability and maintenance costs. The table below shows how routine maintenance tasks influence valve performance and expenses:
| Maintenance Task | Frequency | Impact on Reliability and Costs |
|---|---|---|
| Lubricate valve stem and nut | Every 3 months | Reduces wear, extends service life |
| Adjust packing | Once a month | Maintains a tight seal, preventing leaks |
| Clean valve seat | Regularly | Reduces wear, ensures proper sealing |
| Inspect and align components | As needed | Maximizes lifespan, reduces unexpected failures |
| In-line maintenance | As needed | Reduces downtime by up to 95%, lowers annual costs |
| Overall maintenance efficiency | N/A | Generates up to 60% savings on annual maintenance |
Selecting the correct knife gate valve pressure class, whether MSS-SP81 or ANSI, leads to fewer failures and lower costs. Engineers see up to 60% savings on annual maintenance when they match the standard to the application. Proper standard selection also improves safety by reducing the risk of leaks and unexpected shutdowns.
- MSS SP81 defines knife gate valve pressure class for bonnetless, metal-seated valves with strict limits on size and pressure.
- ANSI knife gate valve standards use class numbers to indicate pressure ratings for various applications.
- DIN standards rely on PN ratings and offer compatibility with European systems.
Engineers should select the correct knife gate valve pressure class for safety and reliability. NTGD experts provide guidance and custom solutions for unique requirements.
