Safe operation of a knife gate valve starts with strict attention to pressure release and maintenance procedures. Industrial safety statistics highlight several frequent causes of accidents:
- Abnormal pressure rise in the valve’s middle cavity
- Valve stem failures
- Improper installation and maintenance practices
Following Safety Considerations When Using Knife Gate Valves: Pressure Release helps prevent leaks, equipment failure, and injury. Regular inspections and proper handling reduce risks and extend the service life of every knife gate valve.
Key Takeaways
- Always isolate and verify the knife gate valve before maintenance. This step prevents accidental pressure release and protects workers from hazardous materials.
- Follow a systematic draining and depressurizing procedure. Confirm zero pressure using gauges to ensure safety before disassembly.
- Regularly inspect knife gate valves for wear and corrosion. Early detection of issues can prevent failures and extend the valve’s service life.
- Use proper personal protective equipment (PPE) during maintenance. This practice reduces the risk of injury from splashes or hazardous materials.
- Implement formal safety protocols, including lock-out/tag-out procedures. These measures help minimize human error and enhance overall safety during maintenance tasks.
Safety Considerations When Using Knife Gate Valves: Pressure Release
Risks of Pressure Buildup
Pressure buildup in knife gate valves and slurry valves presents a significant hazard in industrial environments. When operators fail to manage internal pressure, components can fail suddenly. Several documented incidents illustrate the dangers:
- A worker suffered injury when the end cap of a pneumatic actuator detached under excessive pressure.
- Two workers attempted to free a stuck knife gate valve using a nitrogen gas cylinder, exposing the actuator to pressures far beyond its rated capacity.
- The actuator, rated for 1,000kPa, failed at pressures between 2,700kPa and 3,200kPa, while nitrogen cylinders can reach up to 20,000kPa.
- Investigations emphasized the need for thorough risk assessment and alternative methods for freeing stuck valves.
These events show that uncontrolled pressure can cause catastrophic equipment failure and personal injury. Safety considerations when using knife gate valves: pressure release must address the potential for overpressure, especially when using external energy sources or when valves become stuck.
Importance of Complete Isolation
Complete isolation stands as a critical step before any maintenance or inspection. Partial isolation or reliance on a single closed valve does not guarantee safety. Residual pressure or trapped media can remain in the valve body or adjacent piping. Safety considerations when using knife gate valves: pressure release require operators to:
- Identify all upstream and downstream isolation points.
- Close and secure all relevant isolation valves.
- Confirm that isolation devices are rated for the system’s maximum pressure.
- Use lock-out/tag-out (LOTO) procedures to prevent accidental operation.
Operators should never assume a knife gate valve or slurry valve is depressurized without verification. Complete isolation protects workers from unexpected pressure release and hazardous material exposure.
Draining and Depressurizing Steps
Proper draining and depressurizing procedures form the foundation of safe maintenance. Safety considerations when using knife gate valves: pressure release include the following steps:
- Verify Isolation
Confirm that all isolation valves upstream and downstream are fully closed and locked out. - Relieve Pressure
Open designated vent or drain valves to release trapped pressure from the valve cavity and adjacent piping. Use pressure gauges to monitor and confirm zero pressure. - Drain Residual Media
Allow all process fluids or slurries to drain completely from the valve and connected lines. For slurry valves, ensure that thick or abrasive media do not remain trapped. - Check for Blockages
Inspect drain paths for obstructions that could prevent complete depressurization. - Confirm Zero Energy State
Use calibrated instruments to verify that no pressure remains before beginning any disassembly or inspection.
Tip: Always wear appropriate personal protective equipment (PPE) during pressure release and draining operations. Even after draining, some valves may retain hazardous residues.
Safety considerations when using knife gate valves: pressure release demand a systematic approach. Operators must never skip steps or rely on assumptions. Each action reduces the risk of sudden pressure release, equipment damage, and injury. By following these procedures, maintenance teams ensure the safe handling of knife gate valves and slurry valves in all industrial settings.
Knife Gate Valve Operation & Misapplication Risks
Correct Valve Selection
Selecting the right knife gate valve for each application prevents many operational issues. Engineers must evaluate several factors before installation:
- Location of the valve within the system
- Media pressure and flow rate
- Corrosiveness of the process fluid
- Media temperature and ambient temperature
- Frequency of operation
When choosing a valve, the operating pressure, flow velocity, and the characteristics of the liquid must match the valve’s design. The maximum temperature the valve can withstand also plays a critical role. If the temperature or pressure exceeds the valve’s rating, failures may occur. Slurry valves require special attention to abrasion and corrosion resistance due to harsh media.
Note: Proper valve selection extends equipment life and reduces maintenance needs.
Hazards of Closing Under Flow
Closing a knife gate valve or slurry valves while fluid is moving can create dangerous conditions. Several hazards may arise:
- Closing the valve too quickly can lead to destructive flow dynamics.
- Water hammer may occur, causing sudden pressure spikes.
- Impact sound and vibration from switching can damage nearby equipment.
Operators should avoid rapid closure. Gradual operation helps prevent shock loads and protects both the valve and the piping system.
Preventing Sudden Pressure Changes
Sudden pressure changes threaten system safety and equipment integrity. Operators can use several methods to control pressure during valve operation:
- Opening pressure relief holes inside the valve balances pressure in the middle chamber, allowing automatic discharge to the upstream side.
- Installing an external bypass pressure relief system reduces cavity pressure during installation and operation.
- Adding a special pressure relief valve outside the valve discharges excess pressure if the middle chamber becomes overpressured.
These steps help maintain safe operation and prevent accidents. Consistent use of these methods protects both knife gate valve and slurry valves installations from unexpected failures.
Pressure Release Protocols
Isolating Operating Lines
Operators must isolate all operating lines before starting maintenance on a knife gate valve. This step prevents accidental flow or pressure from entering the work area. Technicians should identify both upstream and downstream isolation points. They must close and secure these points using valves rated for the system’s maximum pressure. For systems with slurry valves, isolation becomes even more important because abrasive or hazardous media can remain trapped. After closing the isolation valves, workers should verify that no pressure remains in the lines by checking pressure gauges and opening vent points.
Tip: Always use clear labeling and documentation for isolation points. This practice reduces confusion and ensures every team member understands which lines are safe.
Lock-Out/Tag-Out (LOTO) Steps
Lock-out/tag-out procedures protect workers from unexpected energy release during knife gate valve maintenance. The following steps outline a standard LOTO protocol:
- Notify all affected employees about the maintenance activity.
- Identify the procedure and potential hazards involved.
- Shut down the equipment or process connected to the valve.
- Isolate the machine or valve from its energy source.
- Apply lockout and tagout devices to all isolation points.
- Check for any stored energy, such as residual pressure or electrical charge.
- Verify isolation by trying out the controls and testing for zero energy.
Each step ensures that the knife gate valve and any connected slurry valves remain safe to handle. Workers should never skip verification, as stored energy can cause serious injury.
Pressure Testing for Safety
After completing isolation and LOTO, technicians must confirm that the system is safe for maintenance. Pressure testing involves using calibrated gauges to check for any remaining pressure in the valve body and adjacent piping. For knife gate valve installations, this step ensures that no trapped pressure remains. In systems with slurry valves, technicians should also inspect for blockages that might prevent full depressurization. Only after confirming zero pressure should maintenance or disassembly begin.
Note: Pressure testing should become a routine part of every maintenance procedure. This habit prevents accidents and extends the life of both knife gate valve and slurry valves.
Maintenance Best Practices

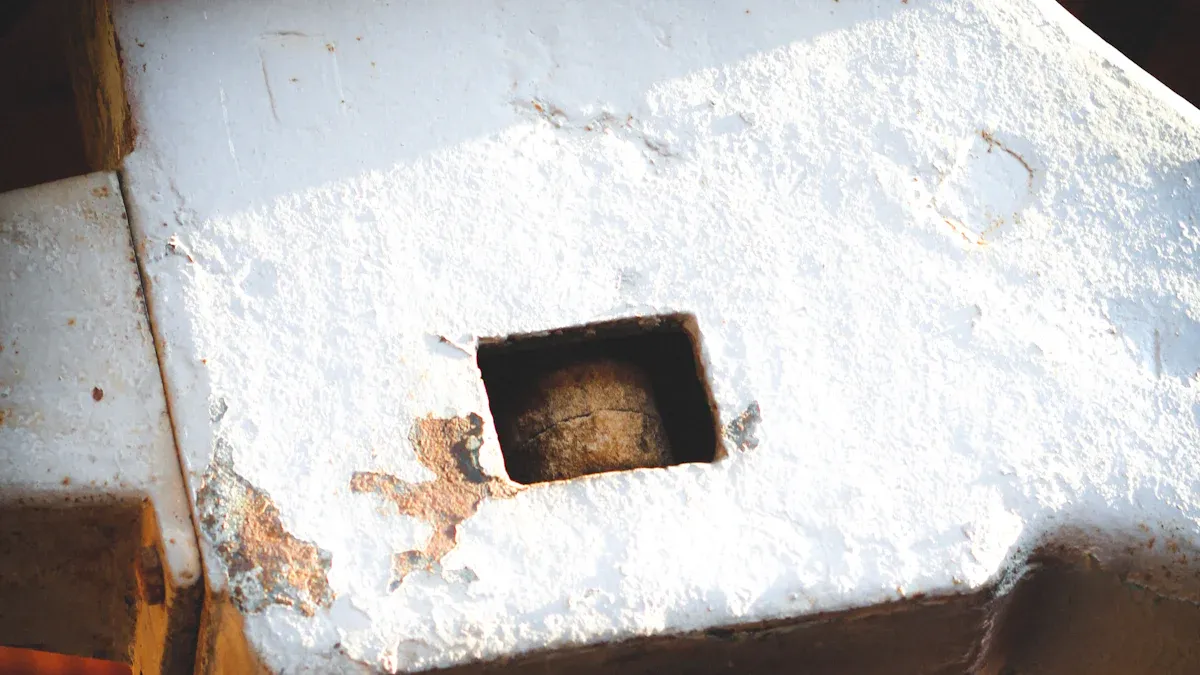

Regular Inspection for Wear and Corrosion
Routine inspection helps identify early signs of wear or corrosion in a knife gate valve. Technicians should check the valve body, gate, and actuator for visible damage. Corrosion often appears as discoloration or pitting on metal surfaces. In slurry valves, abrasive media can accelerate wear, especially along the seat and gate edges. Regular checks allow maintenance teams to replace worn parts before failure occurs. Visual inspection also helps spot leaks or residue buildup, which may indicate seal degradation.
Packing and Stem Maintenance
Proper care of the packing and stem ensures smooth operation and extends the life of the valve. The following table outlines common issues and best practices:
| Issue | Best Practice |
|---|---|
| Valve stem failure | Operate carefully, control opening/closing dimensions, avoid full opening to prevent bending, adjust nut position, replace corroded parts, use different materials for stem and nut. |
| Insensitivity or jamming of stem | Loosen packing gland screws, increase packing filling as per specifications, control clearance between stem and bushing, ensure proper surface finish of threads. |
Technicians should monitor the packing gland for leaks and adjust as needed. Using compatible materials for the stem and nut reduces the risk of galling or corrosion.
Lubrication and Cycling
Lubrication of moving parts reduces friction and prevents premature wear. Maintenance teams should apply suitable lubricants to the stem, gate, and actuator components. Regular cycling of the knife gate valve—opening and closing it fully—helps prevent sticking and ensures all parts move freely. For slurry valves, cycling also helps clear out abrasive particles that may settle inside the valve body.
Tip: Always use lubricants recommended by the manufacturer to avoid chemical incompatibility.
Seat and Joint Checks
Maintaining seat and joint integrity is critical for leak-free operation. The following steps help verify their condition:
- Install the valve in a test rig and close it completely.
- Gradually increase the pressure on the inlet side to the specified test pressure.
- Hold the pressure and check for leakage at the seats.
- Inspect the valve body and joints for any signs of leakage or damage.
Technicians should also conduct visual inspections for cracks, dents, or corrosion on the valve body. Checking the seat seals for cuts or deformation and examining the stem seals for dryness ensures reliable sealing performance.
Actuator Safety
Pneumatic Overpressure Risks
Pneumatic actuators play a vital role in the operation of a knife gate valve. Overpressure in these actuators can cause sudden failure, leading to hazardous situations. Operators must always use pressure regulators and relief valves to prevent the actuator from exceeding its rated pressure. When a pneumatic actuator receives pressure above its design limit, components may rupture or detach. This risk increases if technicians use compressed gases like nitrogen, which can reach extremely high pressures. Regular monitoring of supply pressure and actuator condition helps reduce the chance of overpressure incidents.
⚠️ Always check the actuator’s pressure rating before connecting to a compressed air or gas source.
Secure Mounting and Ratings
Proper mounting of the actuator ensures safe and reliable operation of the knife gate valve. Technicians should verify that all mounting bolts and brackets are tight and free from corrosion. The actuator and its mounting hardware must match the valve’s size and pressure class. Using mismatched or under-rated components can result in mechanical failure during operation. Manufacturers provide clear guidelines for actuator selection and installation. Following these recommendations helps prevent misalignment, vibration, and accidental detachment.
Actuator Inspection
Routine inspection of the actuator and related components supports long-term safety and performance. Maintenance teams should follow a structured inspection plan. The table below outlines key procedures for actuator and valve inspection:
| Inspection Procedure | Description |
|---|---|
| Regular Inspection | Conduct routine visual inspections for damage, corrosion, or leaks. |
| Lubrication | Maintain lubrication of moving parts for smooth operation. |
| Cleaning | Clean internal and external parts to prevent corrosion and deposits. |
| Sealing Component Inspection | Inspect sealing components for wear or damage; replace as needed. |
| Operational Testing | Perform tests to ensure proper opening, closing, and sealing of the valve. |
| Valve Stem Inspection | Check for bends or damage in the valve stem to prevent leakage. |
| Actuator Inspection | Periodically inspect the actuator’s condition and performance. |
| Clearing Blockages | Regularly clear particles from the valve to prevent blockages. |
| Seat and Gate Wear Inspection | Check for wear on the valve seat and gate; repair or replace as necessary. |
| Spare Parts Inventory | Maintain a stock of common spare parts for quick replacements. |
| Scheduled Maintenance Plan | Develop a maintenance plan based on usage frequency and conditions. |
| Follow Manufacturer Recommendations | Adhere to the manufacturer’s maintenance recommendations and manuals. |
A well-maintained actuator reduces the risk of unexpected downtime and supports safe operation. Maintenance teams should always document inspection results and address any issues before returning the valve to service.

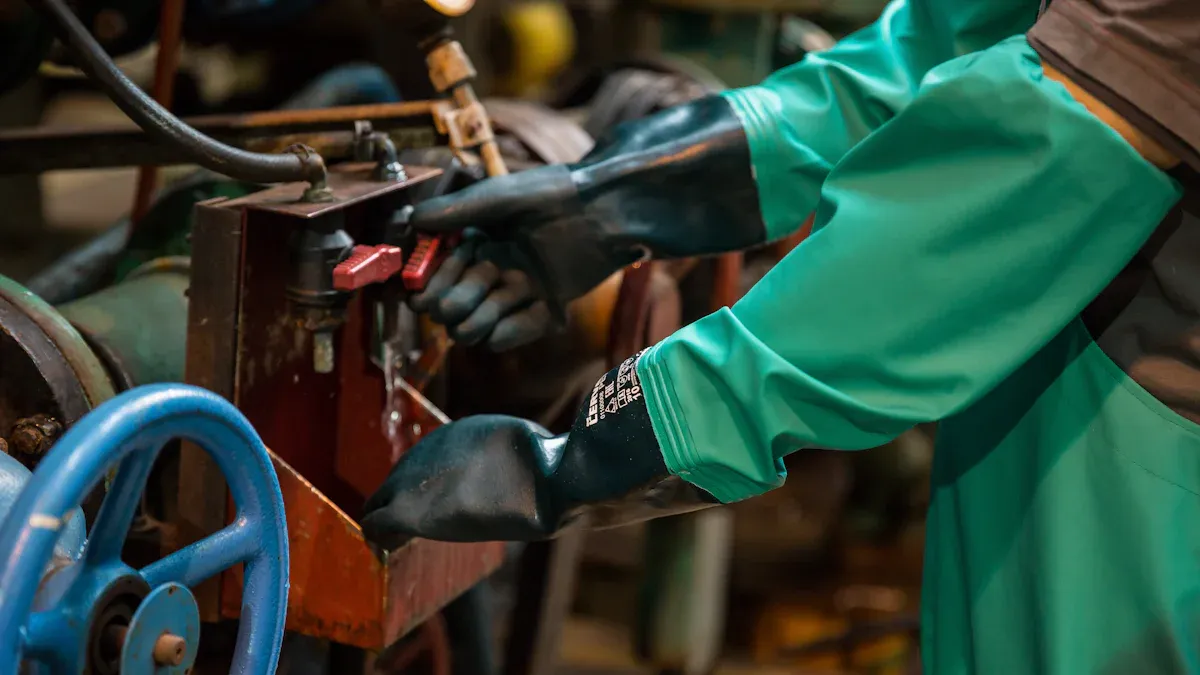

PPE and Safe Work Practices
Required PPE for Valve Work
Personal protective equipment (PPE) forms the first line of defense when working with a knife gate valve. Operators and maintenance staff must select PPE based on the specific hazards present in the work area. Essential items include:
- Safety goggles or face shields to protect eyes from splashes or debris
- Chemical-resistant gloves for handling process fluids or cleaning agents
- Flame-resistant clothing in areas with flammable materials
- Steel-toed boots to guard against dropped tools or valve components
- Hearing protection in high-noise environments
Proper PPE selection and use reduce the risk of injury during pressure release, maintenance, or inspection tasks. Workers should inspect PPE before each use and replace damaged items immediately.
Safe Work Zones
Establishing a safe work zone around the knife gate valve prevents unauthorized access and minimizes distractions. Clear signage and physical barriers help define the area. Only essential personnel should enter the work zone during maintenance or pressure release procedures. Workers must keep the area free of unnecessary tools, hoses, and debris to avoid tripping hazards. Adequate lighting ensures technicians can see valve markings and potential leaks. Emergency exits and eyewash stations should remain accessible at all times.
Maintaining a clean and organized work zone supports effective protective measures and allows quick response in case of an emergency.
Qualified Personnel
Only trained and qualified personnel should perform maintenance on a knife gate valve. Specialized training programs prepare technicians for safe and effective valve work. The following table outlines recommended training:
| Training Program | Description |
|---|---|
| Basic Valve Technician Training | Fundamental training for valve maintenance. |
| Repair and Maintenance of High Pressure Grease Guns and Sealant Pumps | Specialized training for specific equipment. |
| Valve Actuator Maintenance and Troubleshooting | Focused on actuator systems related to valves. |
| Advanced Troubleshooting Techniques | In-depth techniques for complex valve issues. |
Training often includes:
- Classroom sessions with small groups for focused learning
- Field demonstrations using mobile training units
- Group discussions to solve real-world repair scenarios
The ValvePro Certified Education program gives students advanced knowledge of valve components and functions. Graduates improve valve lifespan, reduce emissions, and increase facility efficiency.
Facilities that invest in qualified personnel see fewer accidents and longer equipment life.
NTGD Safety Features
Enhanced Packing and Seals
NTGD knife gate valve designs use advanced packing and sealing systems to prevent leaks in demanding industrial environments. The following table outlines how these features contribute to leak prevention and operational safety:
| Feature | Contribution to Leak Prevention |
|---|---|
| Dual sealing system | Provides zero leakage performance under varying pressures. |
| Advanced materials | Ensures durability and reliability of the seal. |
| Precision engineering | Maintains a tight seal, reducing the risk of leaks. |
| Replaceable seat and packing | Simplifies maintenance and extends service life. |
| Self-cleaning mechanism | Prevents clogging, ensuring consistent sealing performance. |
| Bi-directional sealing system | Addresses common leakage issues in industrial valves. |
Operators benefit from these features through improved reliability and reduced downtime. Enhanced packing and seals support tight sealing, which is essential for both knife gate valve and slurry valves applications.
Guided Gate Design
The guided gate design in NTGD knife gate valve products improves safety by preventing the gate from deflecting during operation. This design ensures the gate moves smoothly and remains aligned, even when handling fibrous or abrasive slurries. By maintaining precise movement, the valve achieves bi-directional zero leakage. This feature proves especially valuable in systems that process suspended or dissolved solids, where misalignment could cause leaks or equipment damage.
Modular Seats
NTGD modular seats provide significant advantages for maintenance and safety:
- Modular seats allow for easy replacement without removing the entire valve, facilitating maintenance.
- This design can reduce maintenance time by 40–60% over the valve’s lifecycle.
- Replaceable trims can eliminate up to 90% of long-term failure modes, enhancing reliability and safety.
Maintenance teams can quickly restore valve performance, minimizing system downtime. Modular seats also help reduce the risk of accidents during maintenance, especially in slurry valves installations.
Corrosion-Resistant Coatings
NTGD applies corrosion-resistant coatings to extend the life and safety of each knife gate valve. The following table highlights the benefits of these coatings and robust materials:
| Feature | Benefit |
|---|---|
| Corrosion-resistant coatings | Protect against wear and corrosion, enhancing longevity and safety. |
| Stellited or chrome-plated | Provides superior resistance to abrasion and corrosion. |
| Ductile iron or cast steel | Ensures durability in demanding slurry applications. |
| Robust materials | Ensures reliability in harsh industrial environments. |
| Advanced engineering | Allows the valve to withstand abrasive slurries and corrosive chemicals. |
| Consistent operation | Maintains performance under severe service conditions. |
These coatings and materials help NTGD valves maintain consistent operation, even in aggressive chemical or abrasive slurry environments. Operators can trust the valve to deliver safe, reliable service over its entire lifespan.
Case Study: Pressure Release Incident Prevention
Maintenance Risk Scenario
A maintenance team at a mining operation in Chile prepared to service a knife gate valve on a slurry line. The line carried abrasive material, which often led to clogging and pressure buildup. In the past, workers faced sudden releases of trapped pressure when removing valve covers. These incidents caused injuries and equipment damage. The team recognized the risk of residual pressure and the potential for hazardous material to escape during maintenance.
Safety Protocols in Action
The team followed a strict safety protocol before starting work. They isolated the valve by closing upstream and downstream lines. Lock-out/tag-out devices secured the isolation points. The team opened vent and drain valves to release any trapped pressure. Pressure gauges confirmed a zero-pressure state. Workers wore safety goggles, gloves, and protective clothing. The supervisor checked each step and verified that the area was clear of unnecessary personnel. This systematic approach prevented accidental pressure release and protected the team from exposure to hazardous slurry.
Tip: Always confirm zero pressure with calibrated instruments before disassembling any knife gate valve.
NTGD Design Impact
After switching to NTGD valves, the mining operation saw a reduction in maintenance incidents. The advanced sealing system and guided gate design prevented leaks and clogging. Maintenance became safer and faster. In a pulp and paper mill in Canada, NTGD valves improved flow and reduced interruptions. The modular seat design allowed technicians to replace worn parts without removing the entire valve. These features minimized downtime and enhanced safety for maintenance teams.
- Mining Operation in Chile: Fewer valve failures and less clogging after NTGD installation.
- Pulp & Paper Mill in Canada: Improved production flow and reduced waste due to reliable valve performance.
NTGD’s engineering solutions address common risks in pressure release and maintenance. Facilities that use these valves benefit from safer operations and longer equipment life.
Conclusion & Recommendations
Key Safety Actions
Maintenance teams should always follow a structured approach when working with a knife gate valve. Key actions include:
- Isolate the valve completely before starting any maintenance.
- Drain and depressurize the system using proper venting and monitoring tools.
- Inspect all components for wear, corrosion, or leaks during each maintenance cycle.
- Use personal protective equipment that matches the hazards present.
- Document each maintenance step and inspection result for future reference.
These steps help prevent accidents and extend the service life of the equipment.
Value of Formal Protocols
Formal safety protocols provide a reliable framework for every maintenance task. Teams that use written procedures reduce the risk of human error. Lock-out/tag-out steps, pressure testing, and clear work zone boundaries protect both personnel and equipment. NTGD’s advanced safety features, such as guided gate design and modular seats, support these protocols by making maintenance safer and more efficient.
Consistent use of formal protocols ensures that every knife gate valve operates safely under all conditions.
Contact NTGD for Solutions
Facilities that want to improve safety and reliability should consider consulting with NTGD maintenance experts. NTGD offers technical support and guidance for selecting, installing, and maintaining knife gate valve products. Their engineering team can recommend solutions tailored to specific process needs. For questions about safety upgrades or best practices, contact NTGD for professional advice.
Effective safety and maintenance practices protect both personnel and equipment when working with a knife gate valve. Teams should always isolate, drain, and depressurize systems before service. Regular inspections and proper documentation help identify issues early. Adopting formal protocols reduces risk and extends the life of each knife gate valve. Facilities benefit from NTGD’s advanced safety features and expert support for safer, more reliable operations.
FAQ
What are the main safety risks when working with knife gate valves?
Knife gate valves can trap pressure inside the valve body. Sudden release of this pressure may cause injury or equipment damage. Proper isolation and pressure release procedures improve knife gate valve safety and protect maintenance teams.
How should technicians release pressure before maintenance?
Technicians should close all isolation valves, open vent or drain points, and use gauges to confirm zero pressure. This process ensures complete pressure release and prevents accidental discharge of hazardous media.
Why does NTGD recommend regular valve inspection?
Regular inspection helps detect early signs of wear, corrosion, or leaks. NTGD 维护 practices extend valve life, reduce downtime, and support safe operation in demanding environments.
What personal protective equipment is required for valve maintenance?
Technicians should wear safety goggles, chemical-resistant gloves, and protective clothing. These items shield workers from splashes, debris, and hazardous fluids during knife gate valve safety procedures.
How do NTGD safety features reduce maintenance risks?
NTGD valves use advanced seals, guided gates, and corrosion-resistant coatings. These features minimize leaks, prevent misalignment, and simplify NTGD maintenance, making pressure release and repair tasks safer for all personnel.
