Selecting the correct knife gate valve size ensures safe and efficient operation. Engineers match the valve’s pressure class, bore size, and flow rate to system demands. Incorrect sizing causes valves to wear quickly, leak, or fail, which increases maintenance costs and creates expensive downtime—especially in remote mining locations. The How to Size a Knife Gate Valve: Pressure Class process addresses these risks by guiding professionals to choose valves that fit specific system requirements. This guide serves as a practical tool for anyone seeking reliable valve selection.
Key Takeaways
- Selecting the right knife gate valve size is crucial for safe and efficient operation. Proper sizing prevents leaks, wear, and costly downtime.
- Understand pressure class ratings to choose valves that can handle system demands. Always select a valve with a pressure class higher than the system’s maximum pressure.
- Match bore size to pipe diameter for optimal flow. Full-bore valves allow unrestricted media movement, while reduced bore valves may limit flow.
- Evaluate flow rate requirements carefully. Use the flow coefficient (Cv) to ensure the valve meets system flow needs without excessive pressure drop.
- Follow a systematic sizing checklist to avoid common mistakes. Document each step to ensure all critical details are considered during valve selection.
Why Sizing Matters for Knife Gate Valves
Pressure Class and Seal Life
Pressure class determines how much force a knife gate valve can withstand before failure. Engineers select the pressure class based on system requirements and the type of media flowing through the valve. High-pressure systems demand valves with robust seals and durable materials. When the pressure class matches the application, the valve maintains seal integrity and reduces the risk of leaks. Industry standards such as SIL 3 Certified, API 600, ASME, and ISO provide guidelines for selecting valves in critical environments. The table below summarizes these certifications:
| Certification | Description |
|---|---|
| SIL 3 Certified | For use in critical applications, ensuring safety and reliability. |
| API 600 | Specifies design, materials, and testing requirements for steel gate valves in oil and gas. |
| ASME | Covers design, materials, measurements, and testing protocols for valves. |
| ISO | International standards for valve design and performance. |
Bore Size and Flow
Bore size directly affects flow capacity and the ability to handle solids. Knife gate valves are typically sized to match the diameter of existing pipes. Full-bore designs allow unrestricted movement of media, which increases flow capacity. In systems with high concentrations of solids, wider bore valves minimize wear and promote efficient flow. The following points highlight the relationship between bore size and flow:
- Knife gate valves match pipe diameters to optimize flow.
- Full-bore valves support high-flow systems by allowing unrestricted media movement.
- Wider bore valves are preferred in applications with high solids to reduce wear and maintain efficiency.
Flow Rate and Efficiency
Flow rate measures how much media passes through the valve in a given time. Proper sizing ensures the valve can handle the required flow without causing excessive pressure drop or turbulence. Environmental factors such as operating temperature and media characteristics influence sizing decisions. For example, corrosive or abrasive materials require specialized valve designs or coatings. The table below shows how these factors impact valve sizing:
| Factor | Influence on Valve Sizing |
|---|---|
| Operating Temperature | Requires specific materials to prevent degradation or failure. |
| Media Characteristics | Corrosive or abrasive materials necessitate specialized designs or coatings. |
Selecting the correct valve size using the How to Size a Knife Gate Valve: Pressure Class process improves efficiency, extends seal life, and ensures reliable operation in demanding environments.
How to Size a Knife Gate Valve: Pressure Class Guide
Understanding Pressure Ratings (ASME 150/300, psi, bar)
Pressure class describes the maximum pressure a knife gate valve can safely handle. Manufacturers use standards like ASME 150 and ASME 300 to indicate these limits. Engineers often see pressure ratings listed in pounds per square inch (psi) or bar. For example, ASME 150 valves usually handle up to 285 psi (about 19.6 bar) at room temperature. ASME 300 valves can manage up to 740 psi (about 51 bar). These ratings help engineers compare valves and select the right one for each application.
The How to Size a Knife Gate Valve: Pressure Class process starts with understanding these ratings. Engineers must check the system’s maximum operating pressure and temperature. They also need to consider pressure spikes that may occur during operation. The table below shows typical pressure classes and their ranges:
| Pressure Class | Typical Pressure Range (psi) | Typical Pressure Range (bar) |
|---|---|---|
| ASME 150 | Up to 285 | Up to 19.6 |
| ASME 300 | Up to 740 | Up to 51 |
| PN 10 | Up to 145 | Up to 10 |
| PN 16 | Up to 232 | Up to 16 |
Tip: Always select a valve with a pressure class higher than the system’s maximum operating pressure for added safety.
Pressure Class Selection for Knife Gate Valves
Selecting the correct pressure class protects the valve and the entire system. Engineers must match the valve’s pressure class to the system’s requirements. The How to Size a Knife Gate Valve: Pressure Class method recommends reviewing the following factors:
- System Pressure: Identify the highest pressure the valve will face, including any surges.
- Temperature: Higher temperatures can lower the valve’s pressure rating. Check the manufacturer’s charts for temperature corrections.
- Media Type: Slurries, abrasive fluids, and corrosive chemicals can weaken valve materials. These conditions may require a higher pressure class or special materials.
- Valve Size: Larger valves may have lower pressure ratings due to their design.
Media type plays a key role in pressure class selection. For example, a valve handling clean water at moderate pressure may only need an ASME 150 rating. A valve in a mining operation, exposed to abrasive slurry, may need an ASME 300 rating or higher. The How to Size a Knife Gate Valve: Pressure Class process helps engineers avoid underestimating the impact of harsh media.
Note: Always consult the valve’s pressure-temperature chart. This chart shows how pressure ratings change with temperature.
NTGD Pressure Selection Approach
NTGD uses a systematic approach to pressure class selection. The How to Size a Knife Gate Valve: Pressure Class process at NTGD includes these steps:
- Review System Data: NTGD engineers gather information about system pressure, temperature, and media.
- Analyze Media Properties: They assess if the media is abrasive, corrosive, or contains solids.
- Check Industry Standards: NTGD compares system requirements to ASME, API, and ISO standards.
- Apply Safety Margins: NTGD recommends a pressure class above the system’s maximum to ensure long-term reliability.
- Customize for Application: For unique conditions, NTGD may suggest special materials or reinforced designs.
NTGD’s approach ensures each valve meets or exceeds the demands of the application. This method reduces the risk of leaks, failures, and unplanned downtime. NTGD’s expertise in How to Size a Knife Gate Valve: Pressure Class selection helps clients achieve safe and efficient operations.
Engineers who follow this process can expect longer valve life and fewer maintenance issues.
Choosing Bore Size and Valve Design
Pipe vs Valve Bore
Engineers compare pipe bore and valve bore to ensure proper fit and optimal flow. Knife gate valves come in full bore and reduced bore designs. Full bore valves match the pipe diameter, allowing media to pass without restriction. Reduced bore valves have a smaller opening, which can limit flow and increase pressure drop. The table below highlights the differences between these designs:
| Feature | Full Bore Valves | Reduced Bore Valves |
|---|---|---|
| Flow Characteristics | Unrestricted flow, minimal pressure drop | Noticeable pressure drop, some flow restriction |
| Application Suitability | Ideal for high-flow applications | Suitable for applications where flow restriction is acceptable |
| Cost | Higher upfront cost due to larger size and material use | More economical, offering cost savings in less demanding applications |
| Maintenance | Easier to inspect and clean, suitable for pigging | May complicate cleaning processes in frequent maintenance systems |
| Size and Weight | Generally larger and heavier | Smaller, lighter, easier to install |
Full bore valves support high-flow systems and simplify maintenance. Reduced bore valves offer cost savings in less demanding environments.
Solids and Particle Passage
Solids content in the media influences bore size selection. Engineers choose wider bores for slurry, abrasive, or high-solids applications. Larger openings prevent clogging and reduce wear. KSL Slurry Knife Gate Valves, for example, operate in bi-directional flow and handle abrasive, corrosive, wet, or dry media. SKW valves suit demanding process conditions. The following list shows typical valve types and their recommended size ranges for high-solids service:
- KSL Slurry Knife Gate Valves: 2″ to 24″ (LA), 2″ to 16″ (SD short), 18″ to 24″ (100 psi)
- T Series: 2″ (DN50) to 48″ (DN1200)
- Flowrox SKW Valves: DN50–600
- Flowrox SKF Valves: DN80–600
Selecting the right bore size ensures reliable operation and minimizes maintenance in tough environments.
NTGD Bore Sizing Example
NTGD engineers review system requirements and media characteristics before recommending bore size. Knife gate valves typically range from 2 inches to 60 inches in diameter. The table below summarizes common size ranges:
| Size Range (Inch) | DN Size |
|---|---|
| 2″ | DN50 |
| 80″ | DN2000 |
NTGD selects full bore valves for slurry and mining applications to maximize flow and reduce blockages. For clean water or low-solids systems, reduced bore valves may provide a cost-effective solution. NTGD’s approach matches valve bore to pipe size and media type, ensuring efficient and safe operation.

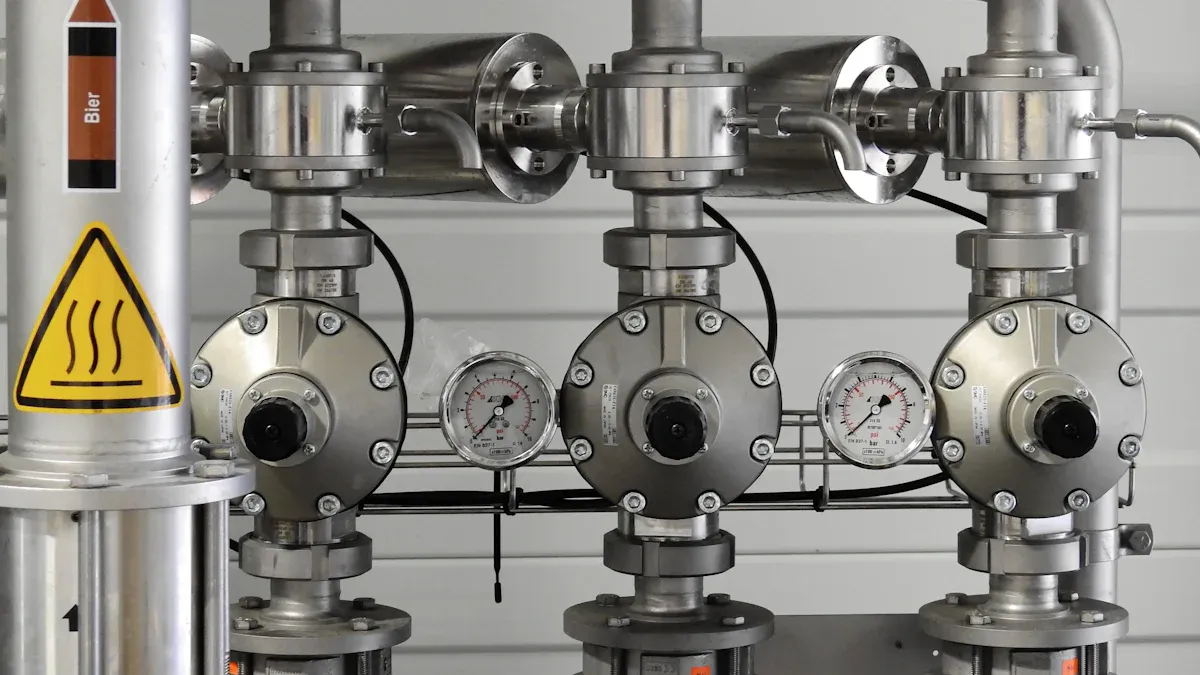

Flow Rate and Valve Performance
Flow Coefficient (Cv) and Pressure Drop
Engineers use the flow coefficient, or Cv, to measure how much fluid passes through a knife gate valve at a given pressure drop. Cv represents the number of gallons per minute of water that flows through a valve with a one psi pressure drop. A higher Cv means the valve allows more flow with less resistance. Knife gate valves with full bore designs often have higher Cv values, which suits applications that require efficient movement of liquids or slurries. Pressure drop across the valve affects system performance. If the pressure drop is too high, the system may lose efficiency and increase energy costs. Engineers select valves with appropriate Cv ratings to balance flow needs and minimize pressure loss.
Sizing for Flow Rate
Sizing a knife gate valve for flow rate involves several important steps. Engineers first determine the minimum, maximum, and normal flow rates for the application. They avoid selecting oversized valves, which can cause poor control and increased wear. The characteristics of the media—such as whether it is liquid, gas, steam, or slurry—play a key role in valve selection. Temperature also influences valve choice, since high temperatures can affect valve materials and performance. Pressure requirements must be assessed to ensure the valve can handle both operating and maximum pressures. Engineers use these factors to calculate the correct valve size for reliable operation.
- Flow coefficient (Cv) helps evaluate valve performance.
- Minimum, maximum, and normal flow rates guide sizing decisions.
- Media type, temperature, and pressure requirements affect valve selection.
Tip: Always review system data and media properties before choosing a valve size. This step helps prevent common sizing mistakes.
NTGD Sizing Guidelines
NTGD follows a structured approach to valve sizing for optimal flow rate and performance. Their engineers gather detailed system information, including flow rates, media type, temperature, and pressure. They use the How to Size a Knife Gate Valve: Pressure Class process to match valve specifications to application needs. NTGD recommends selecting valves with Cv ratings that meet or exceed system requirements. For challenging media, such as abrasive slurries, NTGD may suggest reinforced designs or special materials. Their guidelines help clients achieve efficient flow, reduced pressure drop, and long-lasting valve performance.
| Sizing Step | NTGD Approach |
|---|---|
| Flow Rate | Analyze minimum, maximum, and normal flow rates |
| Media Type | Assess liquid, gas, steam, or slurry characteristics |
| Temperature | Consider operating and ambient temperatures |
| Pressure | Evaluate operating and maximum pressure needs |
| Cv Selection | Choose valves with suitable flow coefficients |
NTGD’s expertise ensures each valve delivers reliable performance and meets the demands of the system.
Sizing Checklist and Best Practices
NTGD Sizing Checklist
Engineers at NTGD follow a systematic approach when sizing knife gate valves. This checklist helps ensure reliable operation and long service life:
- Review Media Properties: Identify if the media is liquid, slurry, abrasive, or corrosive.
- Assess System Pressure: Determine both operating and maximum pressure levels.
- Evaluate Solids Content: Check for particles or solids that may affect valve performance.
- Calculate Flow Requirements: Measure minimum, maximum, and normal flow rates.
- Confirm Bore and Pipe Compatibility: Match valve bore to pipe diameter for optimal flow.
- Check Cleaning and Maintenance Access: Ensure the valve design allows for easy inspection and cleaning.
- Select Appropriate Materials: Choose materials that resist corrosion and abrasion.
- Verify Actuator Compatibility: Confirm that the actuator matches the valve’s torque needs.
Tip: Engineers should document each step to avoid missing critical details during selection.
Common Sizing Mistakes
Knife gate valve sizing often involves several pitfalls. NTGD addresses these issues through careful review and technical expertise:
- Choosing a valve unsuited for the application leads to premature failure. Engineers match valve specifications to system needs.
- Incorrect installation orientation causes leaks or gate jamming. Teams follow manufacturer guidelines and check flow direction.
- Skipping regular maintenance results in debris buildup and sticking gates. Scheduled cleaning and inspections prevent these problems.
- Improper packing gland adjustment can cause leaks or excessive wear. Technicians use specified torque settings for adjustments.
- Using knife gate valves for throttling erodes internal components. Operators use these valves only for on/off service.
- Mismatched actuator selection creates operational issues. Engineers ensure actuator torque matches valve requirements.
- Ignoring media characteristics affects performance. NTGD selects valves with suitable materials and design features.
Standard vs NTGD Sizing Comparison
The table below highlights differences between standard industry sizing and NTGD’s enhanced process:
| Step | Standard Sizing Approach | NTGD Sizing Approach |
|---|---|---|
| Media Review | Basic identification | Detailed analysis of properties |
| Pressure Assessment | Operating pressure only | Includes surges and temperature effects |
| Solids Evaluation | Often overlooked | Thorough solids and particle review |
| Flow Rate Calculation | General estimation | Precise measurement and documentation |
| Bore Selection | Matches pipe size | Considers media and cleaning needs |
| Material Selection | Standard materials | Application-specific recommendations |
| Actuator Compatibility | Generic pairing | Torque-matched selection |
| Maintenance Planning | Not always included | Integrated into sizing process |
NTGD’s comprehensive method reduces risk and improves valve reliability in demanding environments.
Proper knife gate valve sizing involves several key steps:
- Identify system requirements, including fluid type and flow needs.
- Consult industry standards for pressure class and bore size.
- Ensure material compatibility and consider future expansion.
Correct sizing leads to longer service life and fewer failures, as shown below:
| Key Aspect | Explanation |
|---|---|
| Efficient System Performance | Correct sizing prevents excessive pressure losses and operational sluggishness, enhancing durability. |
| Pipeline Diameter Matching | Valves should match pipe diameters to minimize internal wear and potential clogging. |
| Flow Rate Considerations | Full-bore valves are necessary for high-flow systems to ensure unrestricted media movement. |
For tailored solutions, NTGD offers expert guidance. For quick answers, consider a reference table or FAQ.
FAQ
What is the difference between full bore and reduced bore knife gate valves?
Full bore valves match the pipe diameter and allow unrestricted flow. Reduced bore valves have a smaller opening, which limits flow and increases pressure drop. Engineers select full bore valves for high-flow or solids-heavy applications.
How does media type affect valve sizing?
Media type determines material selection and bore size. Abrasive or corrosive media require durable materials and larger bores. Clean fluids allow for standard materials and smaller bores. Engineers always review media properties before choosing a valve.
Why should engineers avoid using knife gate valves for throttling?
Knife gate valves suit on/off service. Throttling causes erosion and damages internal components. Engineers use control valves for flow regulation and reserve knife gate valves for isolation tasks.
What is the flow coefficient (Cv) and why is it important?
Cv measures how much fluid passes through a valve at a specific pressure drop. Higher Cv values indicate better flow capacity. Engineers use Cv to select valves that meet system flow requirements and minimize energy loss.
When should engineers consult NTGD for valve sizing?
Engineers should contact NTGD when handling complex media, high-pressure systems, or unique applications. NTGD provides expert advice, custom solutions, and ensures valves meet safety and performance standards.
