NTGD Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media

Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media ensures reliable isolation in harsh environments. NTGD engineers use advanced sealing technologies that stop leaks even when handling abrasive or corrosive fluids. Robust construction gives each valve the strength to perform under high pressure. Reliable isolation protects workers, improves process efficiency, and helps companies reduce maintenance costs.

• Advanced seats and precision gates keep media contained.
• Strong body materials resist damage from tough industrial applications.

Key Takeaways

• NTGD Knife Gate Valves use advanced sealing technologies to prevent leaks in harsh environments, ensuring safety and efficiency.
• Regular maintenance, including inspections and lubrication, is crucial for keeping valves operating at peak performance and achieving zero-leak shutoff.
• Selecting the right materials and designs, such as reinforced seats and self-cleaning gates, enhances durability and reduces the risk of leaks.
• Proper installation practices, like tightening bolts diagonally, help prevent leaks and extend the life of the valves.
• Factory testing and certification guarantee that NTGD valves meet strict industry standards for zero-leak performance.

Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media

Why Zero-Leak Isolation Matters

Zero-leak isolation stands as a critical requirement in many industries. Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media protects workers, equipment, and the environment. Hazardous leaks can cause serious health and safety risks. Loss of valuable fluids leads to high costs and wasted resources. In chemical plants, even a small leak can trigger dangerous reactions or fires. Operators rely on zero-leak valves to prevent product loss, contamination, and environmental pollution.

Safety incidents, such as the explosion at Phillips 66’s Houston Chemical Complex in 1989, highlight the dangers of valve leakage. Proper isolation could have prevented the catastrophic release of flammable materials.

Leakage Modes in Knife Gate Valves

Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media faces several leakage challenges, especially in abrasive and corrosive environments. These valves must handle high-solid slurries and resist corrosion from aggressive chemicals. The sharp-edged gate shears through solids but can wear down over time, affecting the seal. Mining and chemical processing often expose valves to harsh conditions, making durable materials essential.

Common leakage modes include:

Performance Indicators for Shutoff

Operators use several indicators to judge shutoff performance. Drip-tight shutoff means no visible drips escape the valve. Bubble-tight shutoff ensures no gas or liquid passes, even under pressure. Bi-directional shutoff allows the valve to seal in both flow directions.

• Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media must maintain these standards to ensure safety and efficiency.
• Valves that resist clogging and corrosion perform better in demanding applications.
• Regular inspection and testing confirm that valves meet zero-leak requirements.

Design Features for Zero Leakage

Advanced Seat Technologies

Engineers design advanced seat technologies to achieve zero-leak shutoff in knife gate valves. These seats use a combination of elastomers and precision-machined metal surfaces. The dual sealing system provides a tight seal, even when the valve faces fluctuating pressures or abrasive particles. Bi-directional sealing allows the valve to block flow from either direction, which reduces environmental risks. Self-cleaning scrapers remove debris from the gate plate during operation, keeping the seal consistent over time.

The table below summarizes key seat technologies found in modern knife gate valves:

Material selection plays a major role in long-term sealing performance, especially in corrosive environments. The table below shows how different seat materials impact corrosion resistance and sealing ability:

Valves with robust flanged designs and double-seated construction achieve bubble-tight sealing in both directions. Replaceable lip-seat technology allows for low-maintenance operation and extends service life. These features help Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media perform reliably in harsh industrial settings.

Flow Path and Bore Design

The flow path and bore design of a knife gate valve directly affect its ability to prevent leaks. Engineers use sealing assemblies that match the media and operating conditions. A well-designed blade moves vertically and presses tightly against the seat, which blocks the flow of liquids or slurries. High-quality sealing materials prevent leaks, even when the valve handles abrasive or corrosive fluids.

A clean sealing surface reduces the risk of contaminants interfering with the seal. Double offset designs minimize friction and wear, which helps the valve operate smoothly and last longer. Double flanged construction ensures secure installation and stability in piping systems. The following table highlights important flow path and bore design features:

Valves with integral flange seals use metal or resilient gaskets to improve sealing performance. Stellite 6 surfacing on the blade and seat increases resistance to abrasion, which is essential for handling slurry and other abrasive media. Heavy-duty knife gate valves are designed to achieve zero leakage, even in the most demanding applications.

Tip: Operators should select valves with ANSI/FCI Class IV leakage performance for the best results in abrasive and corrosive environments.

Alignment and Actuation Precision

Precise alignment and actuation ensure reliable shutoff in knife gate valves. Straight pipeline alignment prevents stress on the valve body and reduces the risk of leaks or damage. High-quality actuators control the opening and closing of the valve with accuracy, which is crucial for applications involving hazardous or valuable fluids.

The table below outlines how alignment and actuation precision affect shutoff reliability:

Operators benefit from valves with blowout-proof stems and split collar safety designs. These features add another layer of protection against leaks. Double offset designs reduce friction, which helps the valve maintain a tight seal over time.

• High-quality actuators provide precise control for optimal valve performance.
• Proper alignment and installation extend valve life and maintain zero-leak shutoff.

Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media rely on these design features to deliver reliable isolation, even in the harshest industrial environments.

NTGD’s Approach to Reliable Shutoff

Material Selection and Surface Treatments

NTGD engineers select materials that maximize corrosion resistance and sealing integrity. They use A351 CF8 stainless steel for the body and gate construction. This alloy resists corrosion and adapts to high temperatures. PTFE forms the core of the sealing system. It delivers zero-leakage performance under both high pressure and low temperature. Hollow rubber sealing strips enhance sealing efficiency and extend service life. These strips improve sealing integrity, especially in abrasive or corrosive media.

Surface treatments further improve durability and reduce leakage risk. NTGD applies wear-resistant coatings that lower friction and boost reliability under pressure. Their robust sealing approach minimizes leakage and extends service life. The valve design eliminates traditional stuffing boxes and packing systems. This simplification makes maintenance easier and increases reliability. NTGD uses elastomer or metal seats on both sides of the gate. This design achieves a bubble-tight seal in both flow directions.

• Wear-resistant coatings reduce friction and improve reliability.
• Robust sealing approach extends service life.
• Eliminating stuffing boxes and packing systems simplifies maintenance.
• Elastomer or metal seats on both sides of the gate ensure bubble-tight sealing.

Reinforced Seats and Self-Cleaning Gates

NTGD incorporates reinforced seats and self-cleaning gates to achieve zero-leak shutoff. Gate guides support the gate throughout its travel. This support ensures stability and alignment. Relief areas promote a self-cleaning flushing action as the gate closes. This action prevents clogging and keeps the valve operating smoothly. The perimeter resilient seat provides tight shut-off in both directions. It enhances sealing effectiveness. NTGD uses a reinforced stainless steel core in the seat. This core increases durability and ensures long-term performance.

The MR-series knife gate valves feature a U-type resilient seat. This seat compresses into the groove of the body cavity for zero-leakage sealing tightness. The self-cleaning flow passage mechanism ensures that no fluid or slurry residue remains. This mechanism prevents clogging and leakage. NTGD’s WB11 and XA family flanged valves use these reinforced features to maintain reliable shutoff in demanding media.

• U-type resilient seat compresses for zero-leakage sealing.
• Self-cleaning flow passage prevents clogging and leakage.
• Reinforced seat core increases durability.

Factory Testing and Certification

NTGD subjects every valve to rigorous factory testing. Technicians verify zero-leak shutoff under simulated operating conditions. Each valve must meet or exceed industry standards, such as ANSI/FCI Class IV for leakage performance. NTGD provides certification for every product, confirming compliance with global standards. The company uses advanced test benches to simulate high pressure, abrasive media, and temperature extremes. This process ensures that Knife Gate Valves: Achieving Zero-Leak Shutoff in Demanding Media deliver reliable isolation in the field.

Operators receive valves with documented zero-leak verification. NTGD’s commitment to quality reduces the risk of unexpected downtime and environmental incidents. Certified valves help companies maintain safety, efficiency, and regulatory compliance.

Note: NTGD’s factory testing and certification process guarantees that each valve performs as specified, even in the most challenging industrial environments.

Selection, Installation, and Maintenance

Pre-Selection Checklist

Selecting the right knife gate valve starts with a thorough checklist. Engineers consider several factors to ensure zero-leak shutoff. Material compatibility stands as a top priority. The valve must resist corrosion and abrasion from the media. Size and pressure rating must match the pipeline and system requirements. Actuation type, whether manual or automated, depends on control needs and budget. Temperature range affects seal integrity. Installation environment, including space and accessibility, influences performance. Tight sealing remains crucial for hazardous or valuable fluids.

Installation Best Practices

Proper installation prevents leaks and extends valve life. Technicians tighten gland holes and clean bolts, using copper gaskets for a secure fit. Diagonal tightening of body and bonnet bolts ensures even pressure and reliable sealing. Packing boxes require compatible materials and careful filling. Maintaining a smooth valve stem surface helps avoid leaks.

Tip: Even flange bolt tightening and packing gland adjustment help achieve a reliable seal.

Maintenance for Zero-Leak Performance

Routine maintenance keeps NTGD Knife Gate Valves operating at peak efficiency. Regular cleaning removes debris and prevents blockages. Lubrication of moving parts reduces wear and supports smooth operation. Alignment checks prevent jamming and maintain proper function. Operators inspect sealing components for damage and replace them as needed. Scheduled operational tests confirm valve performance. Technicians also monitor actuator condition and clear solid particles from inside the valve.

• Conduct visual inspections for damage, corrosion, or leaks.
• Lubricate valve stem and gear mechanisms on a regular schedule.
• Clean internal and external parts, especially in corrosive environments.
• Replace worn seats and gates promptly.
• Maintain a stock of spare parts for quick repairs.
• Train personnel on correct valve handling to extend lifespan.

Note: Following the manufacturer’s maintenance recommendations ensures cost-effective operation and minimizes downtime.

Case Study: Zero-Leak Shutoff in Slurry Service

Problem: Leakage in Abrasive Media

Mining operations often face severe challenges when handling abrasive slurry. High-solid content in ore slurry can wear down valve seats and gates quickly. Many facilities report frequent valve failures, leaks, and costly downtime. In Western Australia, a gold mine struggled with these issues. The mine processed ore slurry with 40% solids content. Previous valves required replacement every 7 to 10 days. Maintenance teams spent long hours on repairs, and monthly costs exceeded $43,000. Production slowed, and leak incidents posed safety risks.

NTGD Solution: Reinforced Design

NTGD introduced reinforced knife gate valves designed for abrasive media. Engineers selected robust materials and advanced seat technologies. The new valves featured self-cleaning gates and perimeter resilient seats. Gate guides provided stability, while relief areas promoted flushing action. These design improvements prevented clogging and maintained alignment. The gold mine replaced its old valves with NTGD’s upgraded models. The installation process followed best practices for alignment and sealing.

• The mine used Clarkson KS1 knife gate valves for the ore slurry application.
• After installation, the valves operated without repairs or replacements for eight months.
• Maintenance teams reported no leak incidents or unplanned downtime.

Results: Long-Term Leak-Free Operation

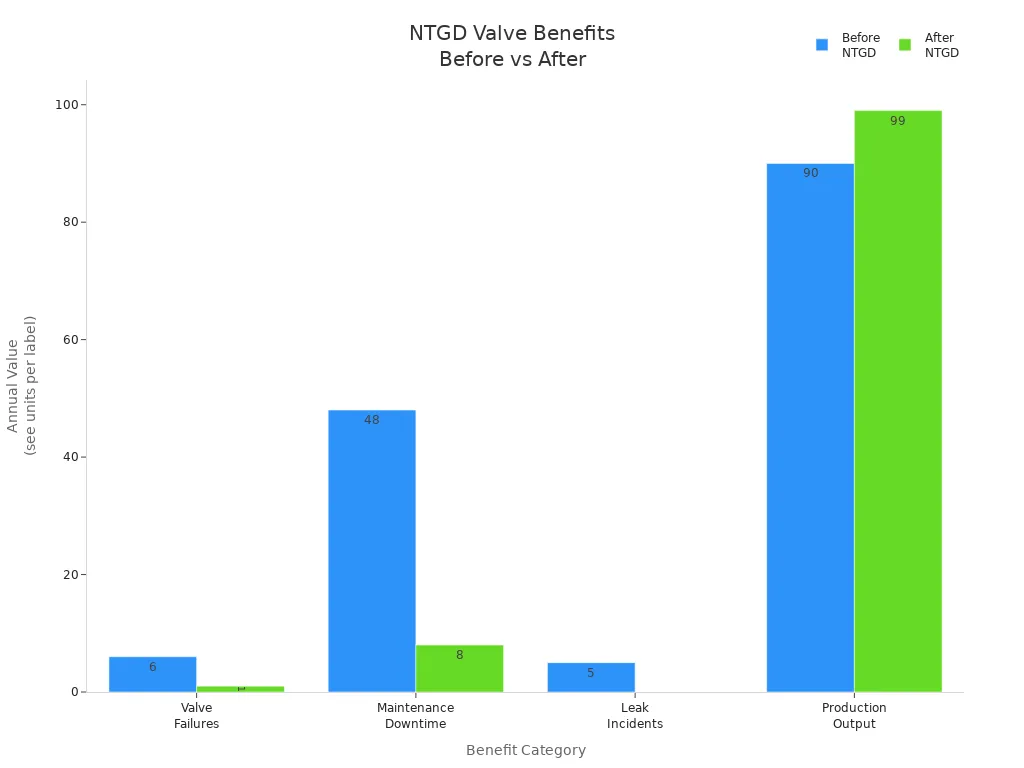

The gold mine experienced dramatic improvements after switching to NTGD Knife Gate Valves. Valve failures dropped sharply. Maintenance downtime decreased, and leak incidents stopped. Production output increased, and cost savings reached nearly $10,000 per week.

Operators at the mine saw reduced costs, improved safety, and higher efficiency. NTGD’s reinforced design delivered reliable, zero-leak shutoff in one of the most demanding slurry services.

NTGD Knife Gate Valves deliver zero-leak shutoff by combining advanced engineering, durable materials, and strict factory testing. Operators rely on these valves for consistent performance in harsh industrial settings.

• NTGD valves handle abrasive slurries and challenging media with proven reliability.
• Manual operation and low maintenance reduce annual costs by up to 60%.
• Lower purchase prices make these valves accessible for budget-conscious facilities.
  NTGD stands out as a trusted solution for safe, efficient, and cost-effective isolation.

FAQ

What makes NTGD Knife Gate Valves suitable for abrasive media?

NTGD uses reinforced seats and self-cleaning gates. These features prevent clogging and reduce wear. The valves maintain tight shutoff in abrasive slurry applications.

How does NTGD verify zero-leak shutoff?

Technicians test each valve in the factory. They simulate operating conditions and check for leaks. NTGD provides certification that confirms zero-leak performance.

Can NTGD Knife Gate Valves handle bi-directional flow?

Yes. NTGD designs valves with dual seats. The valves seal tightly in both directions. This feature protects against leaks and improves safety.

What maintenance do NTGD Knife Gate Valves require?

Operators clean and inspect valves regularly. Lubrication of moving parts reduces wear. Replacement of worn seats and gates ensures continued zero-leak performance.

Are NTGD Knife Gate Valves cost-effective for industrial use?

NTGD valves offer low maintenance and long service life. Facilities save on repairs and downtime. The valves provide reliable isolation at a competitive price.
