Selecting the right actuation for NTGD knife gate valves is not just a technical choice—it determines how the valve performs and how much attention it will require throughout its service life. In real applications, engineers look at several practical factors: the desired level of automation, how often the valve cycles, accessibility of the installation site, and long-term budget considerations. When the actuator aligns with actual operating conditions, the valve runs more reliably and operators avoid unnecessary downtime.

Key factors that influence the decision include:

• The level of automation the process demands
• How frequently the valve must open and close
• What the project can support in terms of cost and maintenance
• The operational environment and safety constraints

Key Takeaways

• Matching the actuator type to the application improves performance and reduces avoidable failures.
• Automation level, cycling frequency, and budget remain the most influential selection criteria.
• Electric actuators provide excellent precision and low maintenance, making them ideal for systems moving toward full automation.
• Pneumatic actuators offer fast response and cost-effective operation for frequent cycling.
• Proper installation and scheduled maintenance are essential for maximizing valve service life.

Why Actuation Matters

Performance and Maintenance

Knife gate valves play an important role in isolating or controlling flow in industrial systems. The choice of actuation directly affects reliability, responsiveness, and lifetime maintenance requirements.

Electric actuators provide accurate positioning and advanced diagnostics, improving consistency and reducing manual intervention. Their sealed designs and modern motor technology enhance service life. Hydraulic actuators deliver much higher force, which is why they are used in systems with large diameters, high pressure, or abrasive flow media.

Maintenance needs vary depending on how frequently the valve operates.

• For valves that cycle often, operators typically perform seat inspections every 6–12 months.
• Predictive maintenance—based on flow, pressure, or vibration data—helps detect early signs of blockage, erosion, or misalignment.

Pneumatic actuators offer straightforward construction and are inexpensive to maintain, though they can be affected by air leaks or pressure inconsistencies. Electric actuators may cost more upfront but generally require less service over time.

Automation and Control Integration

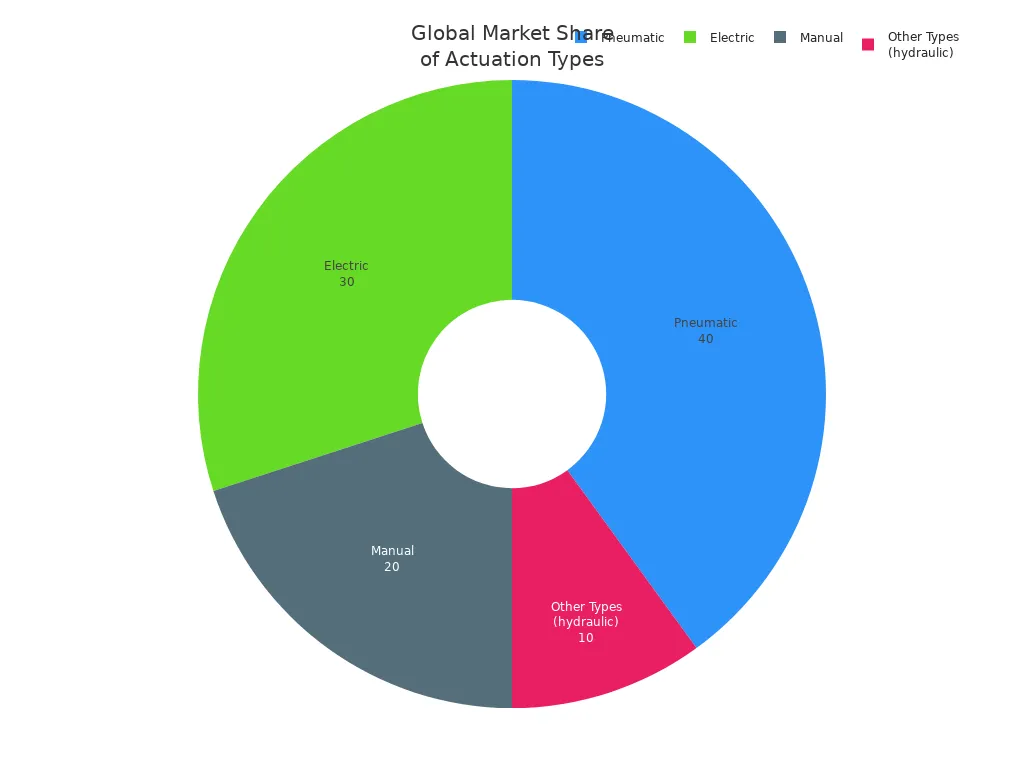

Automation plays a growing role in modern valve systems. A significant share of new wastewater and chemical installations now rely on pneumatic actuation, and more than half of industrial projects are integrating smart, remotely controlled actuators. Adoption continues to increase as plants move toward centralized control and IoT-based monitoring.

However, integrating actuators with automated systems can introduce challenges. Larger gates—especially those mounted horizontally—require sufficient support to prevent deflection. Maintaining alignment is critical for proper sealing, and in some cases, engineers reinforce frames or add external supports. Vibration and load changes may also affect actuator stability, so secure mounting is essential.

Torque, Size, and Duty Cycle

Actuator selection begins with torque requirements and valve size, but duty cycle often determines long-term reliability.

Typical duty cycle expectations:

Valves that operate continuously or modulate require robust actuators capable of handling constant cycling without overheating or accelerated wear. Pneumatic actuators generally perform well for isolation or light regulating service, while electric and hydraulic actuators are better suited for high-frequency or high-precision control.

Tip: Always evaluate torque, valve bore size, and duty cycle together—selecting an actuator based only on one factor often leads to premature failures.

Overview of Actuation Types for Knife Gate Valves

Knife gate valves: choosing the right actuation – manual remains a critical decision for engineers and plant operators. Each actuation type offers unique benefits and limitations. The global market shares highlight the popularity of pneumatic, electric, manual, and hydraulic options.

Manual Actuation – Simplicity and Infrequent Use

Manual actuators are straightforward and durable, making them suitable for valves that are used infrequently or serve as emergency isolation points. With no need for external power, they are easy to install anywhere, even in remote locations.

Manual actuation is a practical choice where reliability matters more than speed or precision.

Pneumatic Actuation – Fast, Practical, and Widely Used

Pneumatic actuators use compressed air to drive the gate and are known for fast cycling and cost-effective operation. Their popularity comes from simplicity, reliability, and compatibility with harsh industrial environments.

They do require a stable air supply and can suffer performance loss if leaks occur. Although energy efficiency is modest—usually between 10% and 25%—their responsiveness and low upfront cost make them a common choice.

Pneumatic systems excel in automated plants where valves cycle frequently and speed is important.

Electric Actuation – Precision and Remote Control

Electric actuators provide precise movement and are easy to integrate with digital control systems. They operate only when needed, keeping energy use low and improving overall efficiency—often reaching up to 80%.

Electric actuation is often selected for applications requiring accuracy, programmability, or continuous diagnostics.

Hydraulic Actuation – High Force for Demanding Applications

Hydraulic actuators provide the highest force among all actuation types, making them indispensable for large-diameter valves or aggressive flow media. They are commonly found in industries with abrasive slurries, corrosive fluids, or high-pressure lines.

Hydraulic systems require more frequent maintenance, including fluid checks and leak inspection, and they consume energy continuously to maintain pressure. However, when high torque and reliability are essential, hydraulic actuation remains unmatched.

Conclusion

Choosing the right actuation method for NTGD knife gate valves depends on the specific operating conditions of the system.

• Manual actuators work well for infrequent or emergency use.
• Pneumatic actuators deliver speed and cost-effective cycling.
• Electric actuators offer precise, automated control.
• Hydraulic actuators provide the high torque needed for tough industrial environments.

A well-matched actuator improves reliability, reduces maintenance, and ensures the valve performs consistently throughout its service life.

Applications of Knife Gate Valves and Actuation Options

Bi-Directional vs. Uni-Directional Valves

Choosing between a bi-directional and a uni-directional knife gate valve comes down to flow direction and sealing requirements. A bi-directional design has seats on both sides of the gate, allowing the valve to seal effectively no matter which way the pressure is applied. This makes it suitable for pipelines where flow can reverse or where pressure conditions change.

A uni-directional valve uses a downstream seat only. It works reliably when flow moves in a single, predictable direction. If the system experiences reverse flow, sealing performance drops and leakage becomes more likely.

Both valve types can be fitted with manual, pneumatic, electric, or hydraulic actuators. However, bi-directional valves often incorporate reinforced sealing structures because they are used in more demanding service conditions.

Matching Actuation to Industry Requirements

Matching Actuation to Industry Requirements

Knife gate valves are used across a wide range of industries, each with its own expectations for speed, force, automation, and reliability.

• Pulp & paper mills use them for handling stock, pulp mixtures, and effluents.
• Chemical plants rely on them for powders, dense slurries, and hopper discharge lines.
• Mining and minerals processing use them in slurry pipelines, cyclones, and tailings systems.
• Water and wastewater systems install them in underground pits, treatment facilities, and isolation points.

When selecting actuation, engineers typically evaluate:

• Required control method (manual or automated)
• Response speed
• Available force or torque
• Energy consumption
• Space limitations and environmental exposure
• Maintenance capability
• Overall cost and lifecycle considerations

Pneumatic actuators fit high-speed operations.
Electric actuators integrate easily with automation systems.
Hydraulic actuators supply high thrust for abrasive or high-pressure applications.
Manual actuators remain practical for simple isolation and emergency duties.

Tip: Matching the actuator to the process ensures a more stable valve performance and lower long-term maintenance.

NTGD Modular Actuation Solutions

Swappable Actuator Interfaces

NTGD knife gate valves are designed with modular actuator interfaces, allowing operators to upgrade or swap actuators without replacing the valve. The mounting dimensions follow standardized patterns, making it simple to move between manual, pneumatic, electric, and hydraulic actuation as system needs evolve.

This approach shortens installation time, simplifies retrofits, and allows facilities to scale automation gradually. A plant can start with manual actuation and later transition to pneumatic or electric without modifying the valve body.

Tip: Modular interfaces give operators flexibility to adjust automation levels without costly equipment replacement.

Standardized Mounting and Support

All NTGD valves use standardized actuator brackets to maintain proper alignment between the actuator and the valve stem. The brackets work across manual, pneumatic, electric, and hydraulic systems, ensuring consistent mounting regardless of actuation type.

This reduces the risk of misalignment-related failures and makes maintenance faster, since technicians can remove or service the actuator without special fixtures. Proper support also reduces vibration loads on the actuator, improving service life.

Conversion Example: Manual → Pneumatic → Electric

A water treatment facility initially installed NTGD knife gate valves with manual actuators. As the plant expanded, operators required quicker operation and remote control. The modular design allowed the manual actuators to be replaced with pneumatic units without modifying the valve.

Later, the plant upgraded to electric actuation to integrate with its central control system. Again, the standardized mounting pattern allowed the new actuators to be installed directly. This avoided downtime, reduced installation cost, and kept the existing valves in service.

Note: Modular actuation supports long-term scalability as automation requirements grow.

Select the Right Actuator for Your Knife Gate Valve

Define Operating Conditions and Control Needs

Before choosing an actuator, engineers evaluate the process environment. Fluid characteristics, temperature, and working pressure all influence how well an actuator performs. High-temperature or abrasive media require actuators built to withstand harsher conditions. High-pressure pipelines need actuators capable of delivering the force required to move the gate reliably. The expected duty cycle also matters. Manual actuators are suitable for infrequent operation. Pneumatic, electric, and hydraulic actuators are preferred when frequent or remote operation is necessary. Automation needs also shape the selection: Pneumatic actuators excel in high-speed cycling. Electric actuators allow fine control and monitoring. Hydraulic systems provide strong force for large or severe-service valves. Accessibility is another consideration—automated actuation reduces the need for workers to reach difficult or hazardous locations.

Tip: Start with operating conditions, then match the actuator to the real demands of the process.

Budget and Lifecycle Cost

Initial price is only one part of the decision. Engineers also evaluate installation cost, energy usage, maintenance frequency, and upgrade potential.

• Manual actuators have the lowest upfront cost.
• Pneumatic actuators require compressed air, which increases energy use but delivers consistent performance.
• Electric actuators cost more initially but often reduce long-term operating costs.
• Hydraulic systems require more maintenance but are indispensable for high-force applications.

Facilities with evolving automation plans benefit from modular actuator systems, which allow upgrades without replacing valves.

Note: Evaluating lifecycle cost helps avoid future downtime and unexpected expenses.

Installation and Maintenance Checklist

Proper installation and routine maintenance strongly influence valve reliability. Below is a practical checklist used in many facilities:

Consistent lubrication, timely part replacement, and proper alignment help prevent unplanned downtime.

Step-by-Step Guide to Select the Right Actuator

1. Identify fluid type, pressure, and temperature.
2. Determine how often the valve will operate.
3. Assess automation requirements.
4. Consider accessibility and safety.
5. Compare actuator types by cost, energy use, and force capability.
6. Use an installation and maintenance checklist during planning.
7. Select an actuator that fits current needs and future upgrade plans.

Tip: A structured selection process ensures long-term reliability and reduces ownership cost.

Conclusion

Choosing the right actuation method significantly affects valve performance and operational reliability. NTGD’s modular knife gate valve designs allow facilities to upgrade actuation easily as their automation strategies evolve.

For readers who want to explore valve specifications or compare actuation options in more detail, NTGD’s product pages provide full technical data and selection guidance.

• Review your process requirements
• Consider modular solutions for future flexibility
• Contact NTGD for technical assistance or quotations

Well-matched actuators help ensure stable performance, easier maintenance, and better value throughout the valve’s service life.

FAQ

What factors determine the best actuation type for a knife gate valve?

Engineers consider fluid type, pressure, temperature, frequency of operation, and automation needs. Each factor influences actuator selection and system performance.

Can NTGD knife gate valves switch between manual and automated actuation?

NTGD designs modular interfaces. Operators can swap manual actuators for pneumatic, electric, or hydraulic options without replacing the valve body.

How often should operators perform maintenance on actuators?

Maintenance frequency depends on operation cycles. Most facilities inspect actuators every six months. High-frequency systems may require quarterly checks.

Tip: Regular inspection helps prevent unexpected downtime and extends actuator life.

Which industries benefit most from hydraulic actuation?

Hydraulic actuation suits industries with heavy-duty requirements and challenging fluids.
