NTGD Knife Gate Valves Classified by Material: Strength, Durability & Corrosion Resistance for Every Application
NTGD Knife Gate Valves Classified by Material
Knife gate valves classified by material refer to the way manufacturers group valves based on the metals or composites used in their construction. Each material influences the valve’s strength, durability, and corrosion resistance, which determines suitability for specific process environments. NTGD uses stainless steel, cast iron, specialty alloys, hardened seats, and 316 stainless steel in its knife gate valve designs. The following table shows how these materials affect performance:
| Material | Strength | Durability | Corrosion Resistance |
|---|---|---|---|
| Stainless Steel | Excellent | High | Excellent for corrosive media |
| Cast Iron | Good | Moderate | Suitable for non-corrosive applications |
| Specialty Alloys | Superior | High | Ideal for highly corrosive/high-temperature |
| Hardened Seats | Enhanced | High | Recommended for abrasive media |
| 316 Stainless Steel | High | High | Superior resistance to aggressive chemicals |
Valve selection depends on the process media and operational demands. Users should evaluate their environment before choosing a material.
REQUEST A QUOTE FOR MORE DETAILS
Material Overview
NTGD offers knife gate valves in a variety of materials to meet different process conditions, from general-purpose water systems to highly corrosive or high-temperature environments.
Each material provides unique benefits in terms of strength, durability, and corrosion resistance.
- Choose the right valve material based on your process media and operating conditions to ensure optimal performance.
- Stainless steel and specialty alloys offer superior corrosion resistance, making them ideal for harsh environments.
- Consider both initial costs and long-term maintenance when selecting a valve material to maximize reliability and savings.
- Ductile iron valves provide enhanced strength and flexibility, suitable for demanding applications with moderate corrosion risk.
- Consult with experts to find the best material options for your specific needs, ensuring durability and efficiency.
Material Classification
Why Material Matters
Selecting the right material for a knife gate valve determines its performance and longevity in different environments. Knife gate valves classified by material allow engineers to match valve properties to specific process requirements. Each material offers unique benefits. For example, cast iron works well in general applications with low corrosion risk. Ductile iron provides greater strength and flexibility, making it suitable for more demanding conditions. Stainless steel stands out in corrosive or high-performance settings.
Tip: Always consider the process media and operating conditions before choosing a valve material. The wrong choice can lead to premature failure or costly maintenance.
The table below highlights how different materials suit various industrial applications:
| Material Type | Suitability for Applications |
|---|---|
| Cast Iron | Suitable for general applications, less corrosive environments |
| Ductile Iron | Offers better strength and ductility for more demanding applications |
| Stainless Steel | Ideal for corrosive environments and high-performance needs |
NTGD Material Grades
NTGD follows strict industry standards to define and differentiate its material grades. These standards ensure that each valve meets the required specifications for safety, durability, and quality. NTGD references several well-known standards, including ANSI, ASME, API, DIN, and ISO 9001. These organizations set guidelines for valve design, mechanical properties, and quality management.
| Standard | Description |
|---|---|
| ANSI | American National Standards Institute, sets standards for valve design and performance. |
| ASME | American Society of Mechanical Engineers, provides guidelines for mechanical components. |
| API | American Petroleum Institute, establishes standards for the oil and gas industry. |
| DIN | Deutsches Institut für Normung, sets standards in Germany for various industries. |
| ISO 9001 | International standard for quality management systems, ensuring product quality. |
By adhering to these standards, NTGD ensures that every knife gate valve delivers reliable performance in its intended application.
Material Comparison
Strength & Pressure
Engineers select knife gate valves based on the mechanical strength required for each application. Cast iron provides good strength for oil, gas, and water systems. Ductile iron offers higher tensile strength and better elongation, making it suitable for demanding environments. Cast steel stands out with excellent yield strength and impact properties. Stainless steel delivers both strength and corrosion resistance, while exotic alloys perform well under extreme conditions.
| Material | Tensile Strength (psi) | Yield Strength (psi) | Elongation (%) | Impact Properties (J) |
|---|---|---|---|---|
| Ductile Iron | 40,000 | N/A | 18 | N/A |
| Cast Steel | N/A | 36,000 | 25 | 30 |
Note: Stainless steel and alloys maintain their strength even in harsh chemical environments, supporting high-pressure and low pressure drop operations.
Corrosion & Temperature
Knife gate valves must withstand varying temperatures and corrosive media. Stainless steel resists corrosion in chemical industries, while cast iron works best in less aggressive environments. Ductile iron and cast steel offer moderate corrosion resistance. Exotic alloys handle extreme temperatures and aggressive chemicals.
| Valve Type | Applicable Temperature Range |
|---|---|
| Wafer Type Knife Gate Valve | ≤ 300 ℃ |
| Manual Knife Gate Valve | –38 ~ +650 ℃ |
Tip: For processes involving aggressive chemicals or high temperatures, stainless steel or alloy knife gate valves provide the best performance.
Cost & Maintenance
Initial purchase costs for knife gate valves depend on material and size. Cast iron and ductile iron valves offer cost-effective solutions for general use. Stainless steel and alloys require a higher investment but reduce maintenance due to superior corrosion resistance.
| Size | Original Price | Special Price |
|---|---|---|
| 4″ | $1,059.86 | $525.23 |
| 6″ | $1,441.16 | $843.92 |
| 8″ | $2,093.41 | $1,208.88 |
| 10″ | $2,666.96 | $1,985.74 |
| 12″ | $3,423.73 | N/A |
- Cast iron: Lower cost, moderate maintenance
- Ductile iron: Slightly higher cost, improved durability
- Stainless steel/alloys: Higher cost, minimal maintenance
Choosing the right knife gate valve material balances upfront cost with long-term reliability and maintenance savings.
Quick Reference Table
| Material | Strength | Corrosion Resistance | Temperature Range | Cost |
|---|---|---|---|---|
| Cast Iron | Good | Low | Up to 300 ℃ | Low |
| Ductile Iron | High | Moderate | Up to 300 ℃ | Moderate |
| Cast Steel | High | Moderate | Up to 650 ℃ | Moderate |
| Stainless Steel | Excellent | Excellent | Up to 650 ℃ | High |
| Alloys | Superior | Superior | Up to 650 ℃ | Highest |
Knife Gate Valves Classified by Material
Knife gate valves classified by material allow engineers to select the best option for their specific process environment. Each material offers unique advantages and limitations, impacting strength, durability, corrosion resistance, and cost. Gates in these valves often use 304 or 316 stainless steel to ensure corrosion resistance and reliable sealing performance, even when the valve body uses a different material.
Cast Iron Knife Gate Valve
Cast iron knife gate valves provide a cost-effective solution for general industrial applications. NTGD typically uses GGG40 cast iron for both the body and gland, ensuring consistent mechanical properties.
| No. | Item | Material |
|---|---|---|
| 1 | Body | GGG40 Cast Iron |
| 5 | Gland | GGG40 Cast Iron |
Key Properties:
- Good mechanical strength for low to moderate pressure systems
- Moderate durability in non-corrosive environments
- Economical choice for large-scale installations
Strengths:
- Budget-friendly and space-saving
- Withstands abrasive and corrosive materials in many settings
- Designed for frequent operation and high-cycle environments
Weaknesses:
- Lower corrosion resistance compared to stainless steel or alloys
- Not suitable for highly corrosive or high-temperature applications
Ideal Applications:
- Chemical processing (handles aggressive chemicals)
- Power generation (isolates high-temperature pipelines)
- Automated systems (regulates material flow)
- Pulp and paper, mineral processing, oil and gas, mining, cement, food processing, agriculture, and water treatment industries
Cast iron knife gate valves classified by material deliver reliable sealing performance in cost-sensitive projects where corrosion is not a primary concern.
Ductile Iron Knife Gate Valve
Ductile iron knife gate valves offer enhanced strength and flexibility over cast iron. The graphite nodules in ductile iron improve resistance to shock, impact, and vibration, reducing the risk of breakage.
Key Properties:
- Superior tensile strength and yield strength
- Greater ductility allows deformation under stress without cracking
- Improved corrosion resistance extends service life
Strengths:
- Handles higher pressure ratings and demanding applications
- Endures high pressures and temperatures without significant degradation
- Flexibility and resistance to cracking under bending
Weaknesses:
- Slightly higher cost than cast iron
- Still less corrosion resistant than stainless steel
Typical Failure Modes:
| Failure Mode | Causes |
|---|---|
| Seal Leakage | Wear, misalignment, improper installation |
| Difficult Operation | Jamming, misalignment |
| Stem Failure | Wear, improper installation |
| Seat Erosion/Damage | Exposure to abrasive or corrosive media |
Ideal Applications:
- Systems requiring higher pressure and durability
- Environments with moderate corrosion or mechanical stress
Ductile iron knife gate valves classified by material provide reliable sealing performance and durability for challenging industrial processes.
Cast Steel Knife Gate Valve
Cast steel knife gate valves deliver high mechanical strength and excellent flow characteristics. These valves support high flow capacity and low pressure drop, making them suitable for demanding fluid control.
| Mechanical Property | Benefit |
|---|---|
| High flow capacity | Efficient fluid control in various applications |
| Low pressure drop | Minimizes energy loss in fully open position |
| Low maintenance | Reduces operational costs and downtime |
| Corrosive resistance | Extends lifespan in harsh environments |
Strengths:
- High strength and impact resistance
- Performs well in high-pressure and high-temperature systems
- Requires less maintenance due to robust construction
Weaknesses:
- Moderate corrosion resistance compared to stainless steel
- Higher cost than cast iron or ductile iron
Ideal Applications:
- Power plants, petrochemical facilities, and heavy industry
- Systems where high flow rates and quick fluid shutoff are essential
Cast steel knife gate valves classified by material excel in applications demanding strength, durability, and efficient flow control.
Stainless Steel Knife Gate Valve
Stainless steel knife gate valves stand out for their exceptional corrosion resistance and ability to withstand high temperatures. Grades such as 304, 304L, 316, and 316L provide excellent protection against aggressive chemicals and wear.
Key Properties:
- Outstanding corrosion resistance in harsh environments
- Maintains strength at elevated temperatures
- Long service life with minimal maintenance
Strengths:
- Suitable for corrosive and abrasive media
- Performs reliably in extreme conditions
- Supports a wide range of industrial applications
Weaknesses:
- Higher initial cost than iron or steel valves
Common Applications:
| Industry Sector | Application Description |
|---|---|
| Pulp and Paper | Controls pulp, slurry, and fibrous materials |
| Mining and Mineral Processing | Handles abrasive slurries and tailings |
| Wastewater Treatment | Regulates sewage, sludge, and waste materials |
| Chemical Manufacturing | Controls aggressive chemicals and acids |
| Food and Beverage Processing | Manages viscous materials, prevents clogs |
| Power Generation | Provides shutoff for coal, ash, and particulate systems |
Stainless steel knife gate valves classified by material ensure reliable operation and long-term performance in the most demanding environments.
Alloy & Exotic Knife Gate Valve
Alloy and exotic knife gate valves use advanced materials to meet specialized requirements. Options include nodular iron, carbon steel, and various stainless steel alloys, along with advanced sealing materials like EPDM, nitrile, graphite-filled Teflon, and Teflon-impregnated Kevlar.
| Alloy/Material | Unique Properties |
|---|---|
| Cast Iron | Modular design, epoxy coated, excellent flow characteristics |
| Nodular Iron | Customizable, good for various applications |
| Stainless Steel | Corrosion resistance, surface treatment options |
| Carbon Steel | Customizable body, suitable for industrial use |
| EPDM/Nitril Sealing | Tight sealing, prevents media leakage |
| Graphite-filled Teflon | Enhanced durability and sealing performance |
| Teflon-impregnated Kevlar | Reinforced packing, improved reliability and longevity |
Strengths:
- Superior corrosion resistance and mechanical strength
- Withstands extreme temperatures and aggressive chemicals
- Customizable for unique process requirements
Weaknesses:
- Highest cost among all materials
- Requires careful evaluation to match application needs
Ideal Applications:
- Chemical processing, marine, and high-temperature industries
- Situations where standard materials cannot provide adequate protection
The cost of alloy and exotic knife gate valves classified by material reflects their durability and ability to perform in extreme conditions. Larger sizes and complex manufacturing processes further increase the price, so careful selection ensures the best value for specialized applications.
Note: Gates in all NTGD knife gate valves, including bonneted knife gate valve, through conduit knife gate valve, and push-through knife gate valve, often use 304 or 316 stainless steel. This choice maximizes corrosion resistance and ensures reliable sealing performance across all valve types.

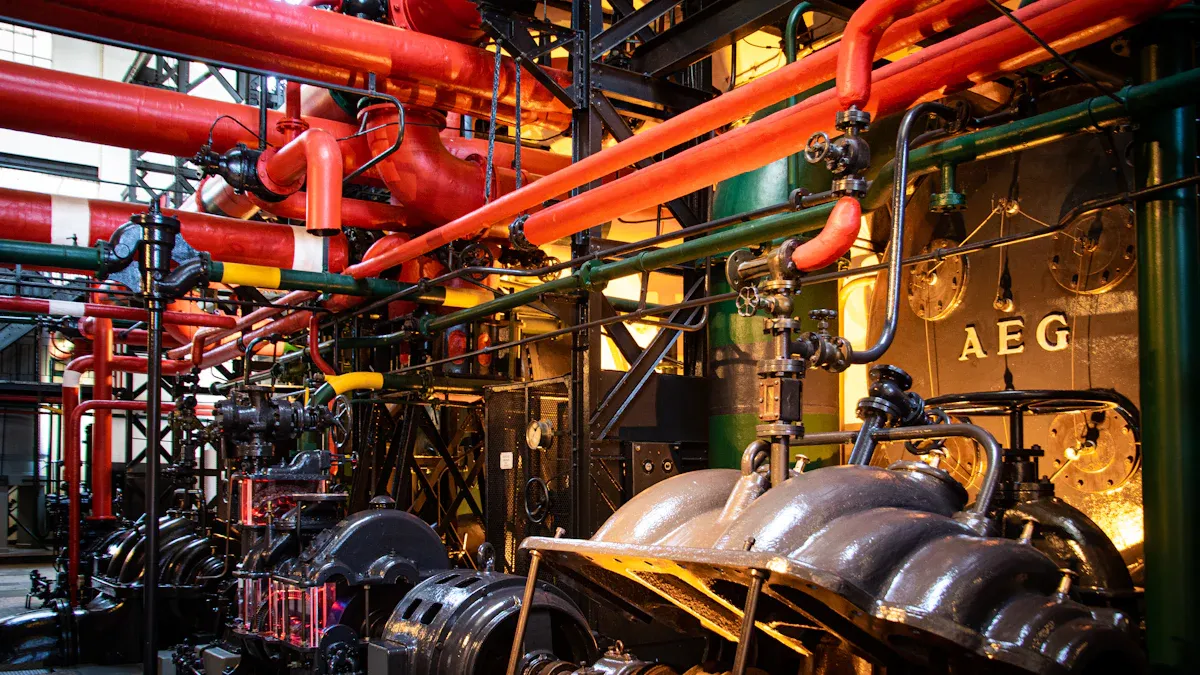

Applications
Chemical & Petrochemical
Knife gate valves play a vital role in chemical and petrochemical plants. Operators rely on these valves to manage the flow of chemicals safely and efficiently. The design of each knife gate valve allows it to handle corrosive materials, which makes it ideal for commercial applications where chemical resistance is critical. Facilities often select stainless steel or specialty alloys for these environments due to their superior corrosion resistance and durability.
- Knife gate valves control the movement of aggressive chemicals.
- They support commercial applications that demand high reliability and safety.
- Their robust construction ensures long service life in harsh process conditions.
Tip: Choosing the right material for knife gate valves in chemical processing reduces maintenance and prevents costly downtime.
Mining & Slurry
Mining operations and slurry transport systems present unique challenges. Knife gate valves are specifically engineered to handle thick and abrasive materials. Their sharp gates cut through slurries, ensuring consistent flow and minimizing blockages. This feature proves essential in commercial applications where the consistency of the slurry can change rapidly.
| Material Type | Key Properties | Application Context |
|---|---|---|
| Carbon Steel | High tensile strength, impact value, and hardness. | High-temperature and high-pressure plants. |
| Stainless Steel | Higher corrosion resistance, low-temperature resistance, mechanical strength. | Environments requiring durability and resistance to corrosion. |
| Lined Valves | Chemically resistant, thermally stable, strong mechanical properties. | Enhanced durability against corrosive slurries. |
- Designed to cut through thick fluids and solids.
- Robust construction withstands wear from abrasive materials.
Water & Municipal
Water treatment plants and municipal systems depend on knife gate valves for reliable flow control applications. These valves manage the movement of water, sewage, and sludge in both industrial and commercial applications. Cast iron and ductile iron models offer cost-effective solutions for non-corrosive environments, while stainless steel options provide added protection in systems exposed to chemicals or saltwater.
Note: Proper valve selection ensures uninterrupted service and reduces the risk of leaks in municipal infrastructure.
Power & Energy
Power generation facilities face demanding conditions. Knife gate valves must operate under high pressures and temperatures, often with abrasive flows. Every failure of a knife gate valve disrupts plant operations and lowers throughput. Cavitation, caused by high-velocity water downstream of the gate, can damage both the valve and surrounding equipment. Conventional valves may struggle with dewatered slurry, leading to seal damage and frequent repairs.
Operators in the power and energy sector choose robust materials and advanced designs to ensure reliable performance in these challenging commercial applications.
Choosing the Right Material
Media & Temperature
Selecting the right material for a valve starts with understanding the process media and temperature requirements. Each application presents unique challenges. Engineers must consider how the media will interact with the valve material. Some fluids cause corrosion or abrasion, which can shorten the valve’s lifespan. Others operate at high or low temperatures, affecting material integrity.
- Material compatibility remains essential. Stainless steel, brass, and alloyed metals resist corrosion and abrasion from aggressive media.
- Temperature range matters. The chosen material and seals must withstand the highest and lowest temperatures in the process without losing strength or sealing ability.
A careful review of these factors ensures the valve performs reliably and safely.
Cost vs. Performance
Balancing cost and performance is a key part of material selection. Not every application requires the most expensive option. However, using a lower-cost material in a harsh environment can lead to frequent repairs or replacements.
- Materials that resist corrosion and abrasion, such as stainless steel and alloyed metals, often cost more but provide longer service life.
- Knife gate valves feature robust designs that handle challenging media. This durability increases the initial price but delivers superior reliability and tight shut-off in demanding conditions.
- Slide gate valves offer a lower-cost alternative and easier maintenance. However, they do not perform well with abrasive or viscous materials, which can cause leaks or failures.
Choosing the right balance helps control both upfront and long-term costs.
NTGD Expert Support
NTGD offers expert guidance to help customers select the best material for their needs. The team reviews process details, including media type, temperature, and pressure. They recommend materials that match the application and budget. NTGD’s experience ensures each customer receives a solution that maximizes performance and minimizes risk. For complex or unique requirements, NTGD can provide custom material options and technical support.
Tip: Consult NTGD’s specialists early in the project to avoid costly mistakes and ensure the best valve performance.
Selecting the right material for knife gate valves directly impacts operational reliability and performance. The table below highlights how material choice ensures the valve withstands its environment:
| Aspect | Importance |
|---|---|
| Material Selection | Ensures the valve’s body and gate material can withstand the operating environment, enhancing reliability and performance. |
NTGD offers a wide range of material options to meet diverse industry needs. Their experts provide guidance for custom solutions. For technical support or a quote, readers can contact NTGD’s team.
FAQ
What factors determine the best material for a knife gate valve?
Engineers consider process media, temperature, pressure, and corrosion risk. They also review industry standards and maintenance requirements. NTGD experts recommend materials based on these factors to ensure optimal performance and longevity.
Can NTGD knife gate valves handle abrasive or corrosive media?
Yes. NTGD offers valves with stainless steel, alloys, and hardened seats. These materials resist abrasion and corrosion. Users should specify their process conditions for the best recommendation.
How does material choice affect valve maintenance?
Material selection impacts maintenance frequency. Stainless steel and alloys require less maintenance due to corrosion resistance. Cast iron and ductile iron may need more frequent inspections in harsh environments.
Are custom material options available for unique applications?
NTGD provides custom material solutions. The team evaluates process requirements and suggests suitable materials, including exotic alloys or specialized coatings, for challenging environments.
