NTGD Knife Gate Valves for Bulk Solids: Handling Powders deliver precise control for challenging bulk solids handling tasks. Powders, granulates, and dry media often cause valve clogging, abrasive wear, and leakage. Engineers rely on NTGD’s robust designs and material choices to minimize downtime in demanding environments. NTGD offers a wide range of powder knife gate valve solutions, with proven performance in applications requiring a reliable NTGD valve solid.
Key Takeaways
- NTGD Knife Gate Valves provide reliable flow control for bulk solids, minimizing clogging and downtime in challenging environments.
- Engineers should consider the medium type, pressure ratings, and sealing performance when selecting a valve for bulk solids handling.
- Self-cleaning features and abrasion-resistant materials enhance the longevity and efficiency of NTGD valves, reducing maintenance needs.
- Regular inspection and maintenance routines are essential to ensure optimal performance and extend the service life of the valves.
- NTGD offers customized solutions and engineering support to address specific challenges in bulk solids handling applications.

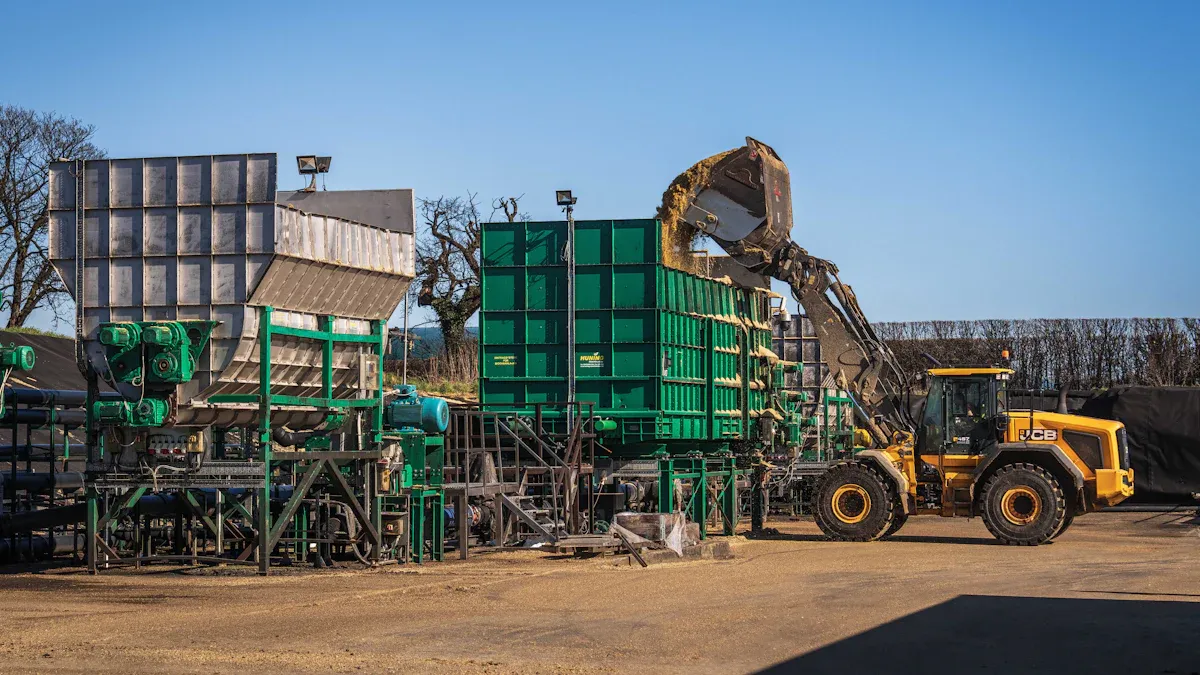

Bulk Solids Handling Challenges
Powders, Granulates, and Dry Media Issues
Engineers face unique challenges when handling powders, granulates, and dry media in bulk solids systems. The physical properties of these materials often cause unpredictable flow and operational problems. Flowability depends on particle size, shape, moisture content, and interparticle forces. Fine powders tend to stick together due to van der Waals and electrostatic forces, which can lead to cohesive masses that resist movement. Larger granulates flow more easily, but segregation can occur when particles differ in size or density.
Common operational issues include:
- Segregation: Particles separate by size or density, leading to inconsistent product quality.
- Flooding: Excessive flow causes materials to behave like liquids, risking spills and loss of control.
- Bridging: Stable arches form over outlets, blocking discharge.
- Insufficient discharge rate: Fine powders may discharge too slowly, reducing process efficiency.
- Particle degradation: Stagnant material compacts into solid masses, causing stoppages.
Additional risks include dust explosions, which can occur when fine particles become airborne and ignite. Contamination from chemicals or microorganisms also poses health and safety concerns. Changes in process requirements or regulations may force equipment upgrades, resulting in costly downtime.
Common Failure Modes in Bulk Solids
Valve performance in bulk solids handling depends on resistance to abrasion, clogging, and chemical attack. The most frequent failure modes include seat wear from friction, abrasive damage to internal surfaces, and blockages caused by material buildup. Corrosion from harsh chemicals further degrades valve components.
| Common Issues | Causes | Solutions |
|---|---|---|
| Leakage | Worn seats, improper sealing, corrosive exposure | Corrosion-resistant materials, regular inspection |
| Jamming | Solids stuck in valve, thick or sticky media | Proper sizing, routine maintenance |
| Wear | Abrasive particles damaging valve surfaces | Abrasion-resistant materials, frequent checks |
| Corrosion | Chemical attack on valve body and seals | Protective coatings, alloy upgrades |
NTGD Knife Gate Valves for Bulk Solids: Handling Powders address these challenges with robust designs, abrasion-resistant materials, and tight sealing mechanisms. These features help prevent common failure modes and ensure reliable operation in demanding environments.
NTGD Knife Gate Valves for Bulk Solids: Handling Powders
Full-Bore Flow and Clog Prevention
NTGD Knife Gate Valves for Bulk Solids: Handling Powders feature a full-bore design that allows unrestricted passage of powders, granulates, and dry media. This design minimizes the risk of bridging and clogging, which often disrupt bulk solids handling. Engineers select these valves for their ability to maintain consistent flow rates, even when processing fine or cohesive materials. The full-bore opening reduces pressure drop and prevents material hang-up, which is critical in gravity-fed systems and pneumatic conveying lines.
NTGD offers several actuation options, including manual, pneumatic, and electric. Manual models provide reliable operation in low-frequency applications. Pneumatic and electric actuators enable rapid cycling and remote control, which improves process efficiency. Wafer-style bodies fit compact installations, while V-notch designs offer precise flow control for metering applications. These features make NTGD valve solid solutions suitable for a wide range of powder knife gate valve requirements.
Traditional gate valves often struggle with bulk solids. Their cavities and sharp corners trap material, leading to blockages and increased maintenance. NTGD’s streamlined flow path and minimal dead zones set them apart, reducing downtime and cleaning frequency.
Knife Edge and Tight Sealing
The knife edge of NTGD Knife Gate Valves for Bulk Solids: Handling Powders slices through compacted or sticky media. This sharp edge ensures reliable closure, even when abrasive or fibrous particles are present. Engineers value this feature for its ability to prevent jamming and maintain process integrity.
Tight sealing is essential in bulk solids handling to prevent leakage and contamination. NTGD uses resilient seats and precision-machined gates to achieve a bubble-tight seal. Moveable seat technology compensates for wear and maintains sealing performance, even with abrasive or viscous powders. This approach extends service life and reduces the risk of product loss.
Compared to traditional alternatives, NTGD valves deliver superior sealing under challenging conditions. Standard gate valves often fail to seal against fine powders or granulates, resulting in dust emissions and safety hazards. NTGD’s robust sealing mechanisms address these issues directly.
Self-Cleaning and Minimal Dead Space
Self-cleaning features play a vital role in minimizing product build-up and maintaining valve performance. NTGD Knife Gate Valves for Bulk Solids: Handling Powders incorporate self-cleaning scrapers that actively remove debris from the gate plate during each cycle. This mechanism prevents accumulation of material, which can otherwise lead to jamming or inconsistent operation.
The following table summarizes key self-cleaning features and their benefits:
| Feature | Benefit |
|---|---|
| Self-cleaning scrapers | Actively remove debris from the gate plate during operation. |
| Moveable seat | Ensures consistent sealing even with abrasive or viscous fluids. |
| High flow rate cleaning | Significantly improves cleaning effectiveness compared to lower flow rates. |
Minimal dead space in the valve body further reduces the risk of material build-up. Engineers appreciate this design because it limits areas where powders or granulates can stagnate. High flow rate cleaning cycles enhance the removal of residual material, supporting hygienic operation and reducing maintenance intervals.
NTGD’s approach to self-cleaning and dead space management offers clear advantages over conventional gate valves. Standard designs often trap material in cavities, leading to frequent cleaning and increased downtime. NTGD’s engineering solutions address these pain points, making them a preferred choice for demanding powder knife gate valve applications.
NTGD Design Features for Dry Media
Wear-Resistant Materials and Coatings
Engineers select NTGD Knife Gate Valves for Bulk Solids: Handling Powders to address the abrasive nature of dry media. The valve body and gate use materials such as stainless steel, brass, and alloyed metals. These choices provide high resistance to wear and extend service life in bulk solids handling. Specialized coatings protect against chemical attack and physical erosion. The following table summarizes the advantages of each material:
| Material | Advantages in Abrasive Environments | Advantages in Corrosive Environments |
|---|---|---|
| Stainless Steel | High resistance to wear and tear | Excellent corrosion resistance |
| Brass | Good durability | Moderate corrosion resistance |
| Alloyed Metals | Enhanced strength and durability | Tailored corrosion resistance |
NTGD slurry knife gate valves feature advanced abrasion resistance. This design minimizes unexpected failures and reduces downtime in powder knife gate valve applications.
Optimized Gate and Actuation
The gate design in NTGD valve solid solutions uses a sharp edge to slice through compacted dry media. This feature minimizes clogging and pressure build-up. Robust sealing mechanisms ensure bubble-tight shutoff, which enhances reliability in bulk solids handling. Electric actuation allows precise control and reduces manual intervention. Proprietary elastomers and high-quality materials extend the lifespan of the valve. Specialist slurry valves have demonstrated lifespans of over 10 years in demanding systems. The electric actuated knife gate valve reduces maintenance needs by using fewer moving parts and effective sealing.
| Feature | Contribution to Performance |
|---|---|
| Sharp-edged gate | Minimizes clogging and pressure build-up |
| Robust sealing | Ensures bubble-tight shutoff, enhancing reliability |
| Electric actuation | Allows precise control, reduces manual intervention |
| High-quality materials | Extends lifespan, reduces maintenance needs |
Surface Treatments to Reduce Build-Up
Surface treatments play a critical role in preventing material build-up on valve components. Engineers apply specialized coatings and surface finishes to reduce adhesion of powders and granulates. These treatments maintain smooth flow paths and limit dead zones where dry media can accumulate. Self-cleaning scrapers and moveable seats further support hygienic operation. Regular cleaning cycles and purging procedures help maintain optimal performance in bulk solids handling systems. These design features ensure consistent operation and reduce the frequency of maintenance.
Tip: Selecting valves with advanced surface treatments and abrasion-resistant materials increases reliability and reduces operational costs in bulk solids applications.
Maintenance and Reliability
Inspection and Wear Part Replacement
Routine inspection ensures reliable operation of NTGD valve solid solutions in bulk solids handling. Engineers follow a structured schedule to maintain performance and extend service life. The following inspection intervals and replacement guidelines apply to powder knife gate valve installations:
- Adjust the packing once a month to prevent leakage.
- Lubricate the stem and stem nut every three months for smooth actuation.
- Lubricate the gear operator annually to reduce friction.
- Cycle the valve at least every six months if not in regular use.
- Tighten the packing gland as needed, using the cross torque method for even pressure.
When replacing wear parts, engineers isolate the valve from the process and release all pressure. The replacement procedure includes:
- Shut off all operating lines to the valve.
- Isolate the valve completely from the process.
- Release process pressure.
- Drain the process fluid from the valve.
- Remove packing gland nuts and bolts.
- Raise gate to full open position.
- Remove old packing and clean the packing box.
- Insert new packing and tighten the packing gland.
The average service life for DSS Severe Service Knife Gate Valves in abrasive bulk solids environments reaches two years.
| Valve Type | Average Valve Life |
|---|---|
| DSS Severe Service Knife Gate Valve | 2 years |
Cleaning and Purging Procedures
Effective cleaning and purging prevent clogging and maintain optimal flow in powder knife gate valve systems. Engineers use high flow rate cleaning cycles to remove residual powders and granulates. Self-cleaning scrapers and minimal dead space designs reduce build-up. Regular purging with compressed air or inert gas clears fine particles from the valve body. Scheduled cleaning intervals depend on material abrasiveness and process frequency. Consistent cleaning and inspection routines minimize downtime and extend the operational life of NTGD valve solid installations.
Tip: Engineers should document all maintenance activities and monitor valve performance trends to anticipate wear and schedule timely replacements.
Applications and Case Examples
Chemical and Polymer Plants
Engineers in chemical and polymer plants rely on NTGD Knife Gate Valves for Bulk Solids: Handling Powders to control the flow of dry chemical powders and plastic granules. These facilities often process materials with varying particle sizes and moisture levels. NTGD valve solid designs maintain consistent discharge rates and prevent bridging at hopper outlets. For example, a polymer extrusion line uses powder knife gate valves to meter plastic pellets into mixing chambers. The tight sealing and self-cleaning features reduce contamination risks and minimize downtime during batch changes.
Note: Operators report improved product quality and reduced maintenance frequency when using NTGD valves in bulk solids handling systems for chemical powders.
Mining, Cement, and Wastewater
Mining operations require robust valves to handle abrasive mineral particles and corrosive slurries. NTGD knife gate valves operate in coal washing pipelines, slag slurry lines, and ash discharge systems. In cement plants, these valves control the flow of dry cement, fly ash, and feed water mixtures. Wastewater treatment facilities use NTGD valve solid solutions for purification devices that process mud, dirt, and water with suspended solids.
- NTGD valves provide an exceptionally tight seal, preventing leaks of hazardous materials.
- They improve operational efficiency by keeping valuable slurry or process water inside the pipeline.
- The linear motion design allows for definitive blockage, enhancing safety during maintenance.
A mining plant reported reduced downtime and safer maintenance procedures after installing NTGD powder knife gate valves in their slurry pipelines.
Gravity-Fed Systems and Discharge Points
Gravity-fed systems in bulk solids handling require reliable valve performance at discharge points. NTGD knife gate valves control the release of mineral particles, chemical powders, and granulates from silos and bins. Engineers select these valves for their full-bore flow and minimal dead space, which prevent clogging and ensure smooth operation. In a fertilizer production facility, NTGD valve solid models manage the discharge of dry media with high flow rates, supporting efficient packaging and transport.
| Application Area | Typical Dry Solid Handled | NTGD Valve Benefit |
|---|---|---|
| Polymer Plant | Plastic granules | Consistent metering |
| Mining | Mineral particles | Abrasion resistance |
| Wastewater Treatment | Suspended solids | Leak prevention |
| Fertilizer Production | Chemical powders | Clog-free discharge |
NTGD Knife Gate Valves for Bulk Solids: Handling Powders demonstrate versatility and reliability across diverse industries, supporting safe and efficient bulk solids handling.
Selection and Specification Tips
Key Parameters for Bulk Solids Valves
Engineers must evaluate several critical parameters when selecting a powder knife gate valve for bulk solids handling. The following ordered list outlines essential considerations:
- Medium Type: Identify the material flowing through the valve. Slurry, wastewater, or highly abrasive media each require specific design features.
- Pressure & Temperature Ratings: Confirm that the NTGD valve solid matches the pipeline’s maximum operating pressure and temperature.
- Sealing & Zero-Leakage Performance: Decide between unidirectional or bidirectional sealing based on the flow direction and process requirements.
- Actuation Method: Choose manual, electric, or pneumatic actuation to suit operational frequency and control needs.
- Body & Seat Materials: Select materials such as cast iron for wastewater or stainless steel for abrasive bulk solids. Material choice impacts durability and corrosion resistance.
Tip: Matching valve specifications to process conditions ensures reliable operation and minimizes maintenance in bulk solids handling systems.
Custom Solutions and Engineering Support
NTGD provides extensive engineering support for unique bulk solids handling challenges. The company offers tailored solutions that address specific material behaviors and process requirements. Engineers can request:
- Hopper & Bin Design: NTGD optimizes wall angles, applies special liners, and recommends flow aids to promote consistent discharge.
- Feeders & Conveyors: The team customizes screw feeders, vibratory conveyors, and pneumatic systems for precise material transport.
- Dust Control Features: NTGD integrates dust suppression technologies for flood-prone powders, maintaining clean and safe operations.
- Customization for Material Behavior: The company conducts material testing and adapts valve geometry, seat design, and actuation to real-world conditions.
NTGD’s approach goes beyond standard products. The engineering team collaborates with plant designers to develop powder knife gate valve solutions that fit each application’s demands.
Testing and Validation for Solids Service
Testing and validation play a vital role in ensuring NTGD valve solid performance in bulk solids handling. Engineers conduct flow simulations, abrasion resistance tests, and leak detection trials before installation. NTGD validates each custom solution under simulated process conditions. The company documents test results and provides recommendations for ongoing monitoring. This rigorous approach guarantees that every powder knife gate valve meets operational standards and delivers reliable service in demanding environments.
Note: Comprehensive testing and validation reduce risk and support long-term reliability in bulk solids handling systems.
NTGD Knife Gate Valves deliver reliable solutions for bulk solids handling. Engineers select these valves for powder knife gate valve applications due to robust construction and dependable flow control. The following table highlights key advantages:
| Advantage | Description |
|---|---|
| Reliable Flow Control | Ensures efficient operation with minimal restrictions. |
| Ease of Maintenance | In-line service reduces downtime. |
| Cost Efficiency | Lower purchase and operational costs. |
| Robust Construction | Handles abrasive media in harsh environments. |
Operators report consistent performance and precise media control with NTGD valve solid designs. The self-cleaning action and extended service life minimize maintenance and replacement costs. For technical support or custom solutions, engineers consult NTGD to optimize bulk solids handling systems.
FAQ
What makes NTGD knife gate valves suitable for bulk solids handling?
Engineers select NTGD valve solid designs for their full-bore flow, abrasion-resistant materials, and self-cleaning features. These valves prevent clogging and reduce downtime in powder knife gate valve applications.
How do NTGD valves minimize maintenance in powder handling systems?
Self-cleaning scrapers and minimal dead space reduce material build-up. Routine inspection and easy wear part replacement extend service life. Operators report fewer shutdowns in bulk solids handling systems.
Can NTGD knife gate valves handle highly abrasive media?
NTGD valve solid models use stainless steel and alloyed metals with protective coatings. These materials resist wear from abrasive powders and granulates, ensuring reliable operation in harsh environments.
What actuation options are available for NTGD powder knife gate valves?
Manual, pneumatic, and electric actuators provide flexible control. Engineers choose actuation based on process frequency and automation needs in bulk solids handling.
How does NTGD ensure tight sealing in dry media applications?
Precision-machined gates and resilient seats deliver bubble-tight shutoff. Moveable seat technology compensates for wear, maintaining sealing performance in powder knife gate valve installations.
