Engineers often select NTGD knife gate valves for abrasive services. The robust structure and wear-resistant design make this gate valve ideal for handling slurry, dust, and high-solids media. Knife gate valve vs slide gate valve: Which One for Abrasive Services? The knife gate valve cuts through tough media, while slide gate valves use a sliding plate for isolation. NTGD specializes in gate valve solutions that withstand severe abrasion and extend service life in demanding environments.
Key Takeaways
- NTGD knife gate valves excel in handling abrasive slurries and high-solids media, making them ideal for mining and chemical processing.
- Regular inspection and timely replacement of valve linings enhance performance and extend the lifespan of NTGD knife gate valves.
- Slide gate valves are best for dry, low-abrasion applications, while knife gate valves provide superior sealing and durability in harsh environments.
- Engineers should assess media properties, such as particle size and hardness, to select the right valve for abrasive services.
- Modular construction in NTGD valves allows for quick maintenance, reducing downtime and ensuring reliable operation.
Quick Comparison: Knife Gate vs Slide Gate Valves
Key Features for Abrasive Services
Engineers often compare knife gate valve vs slide gate valve when selecting an abrasive service valve. NTGD valve design focuses on durability and reliability in harsh environments. The following table outlines the most significant differences between these two valve types for abrasive applications:
| Feature | NTGD Knife Gate Valve | Slide Gate Valve |
|---|---|---|
| Design Purpose | Handles wet bulk and abrasive slurries | Suited for dry bulk powders and granules |
| Sealing Mechanism | Hard seal, wear-resistant gate, replaceable lining | Hard polymer seals, self-cleaning, resist wear |
| Operational Characteristics | Excels in slurry and high-solids media | Performs best with dry materials |
| Maintenance | Robust construction, replaceable parts | Lightweight, modular, easier to maintain |
| Liquid Handling | Effective for liquids and abrasive slurries | Not recommended for liquids, risk of leakage |
NTGD knife gate valves feature a hardened gate and replaceable seat lining. These components extend operational lifespan in abrasive media. The hard seal design resists wear from slurry, dust, and chemical particles. Engineers select this valve for mining, metallurgy, and fluid control in high-solids pipelines.
Tip: NTGD knife gate valves offer superior wear resistance and sealing for abrasive services. Regular inspection and timely replacement of linings help maintain peak performance.
Application Suitability
NTGD knife gate valves excel in applications involving abrasive slurries, hot ash, and chemical particles. Their robust structure withstands continuous exposure to harsh media. Slide gate valves, while effective for dry powders, may experience accelerated wear in abrasive environments.
- Knife gate valves deliver longer operational lifespan in abrasive conditions. They require more maintenance but provide reliable isolation for challenging media.
- Slide gate valves suit clean, dry bulk applications. They may wear out faster when exposed to abrasive slurries or high-solids content.
Engineers choose NTGD knife gate valves for mining, metallurgy, and chemical processing where abrasive service valve reliability is critical. Slide gate valves remain a practical choice for dry material handling but lack the durability needed for severe abrasion.
What Are Abrasive Services?
Definition and Typical Media
Abrasive services refer to industrial processes where fluids or gases carry solid particles that can cause mechanical wear on equipment. These particles often include sand, minerals, ash, or chemical granules. Industries such as mining, power generation, and wastewater treatment frequently encounter abrasive media. In these environments, valves must withstand constant exposure to solids that erode internal surfaces.
Typical abrasive media includes:
- Slurries containing sand, silt, or mineral fines
- Fly ash and hot ash in power plants
- Metallurgical slag and dust
- Chemical particles in process streams
- Grit and debris in wastewater
Engineers often see abrasive service valve applications in slurry pipelines, ash handling, and chemical processing. Wastewater systems also present challenges when grit or solids enter the flow. The presence of abrasive particles increases the risk of valve wear, leakage, and operational failure.
Impact on Valve Selection
Selecting the right valve for abrasive services requires careful evaluation of the media’s properties. Engineers consider several factors that influence valve performance and longevity:
- Particle size: Larger particles can accelerate wear and reduce valve efficiency. They may also clog or damage sealing surfaces.
- Particle strength: Harder particles increase abrasion, demanding tougher materials and coatings in the valve design.
- Particle shape: Angular or sub-angular particles cut and erode surfaces more aggressively than rounded ones.
NTGD valve design addresses these challenges by using hardened gates, wear-resistant linings, and robust sealing mechanisms. Knife gate valve vs slide gate valve comparisons often focus on how each design handles abrasive media. Engineers select knife gate valves for their ability to cut through solids and maintain tight shutoff. Slide gate valves may suit dry, less abrasive applications.
In wastewater applications, abrasive solids can quickly degrade standard valves. NTGD’s solutions extend service life and reduce maintenance in these demanding environments.

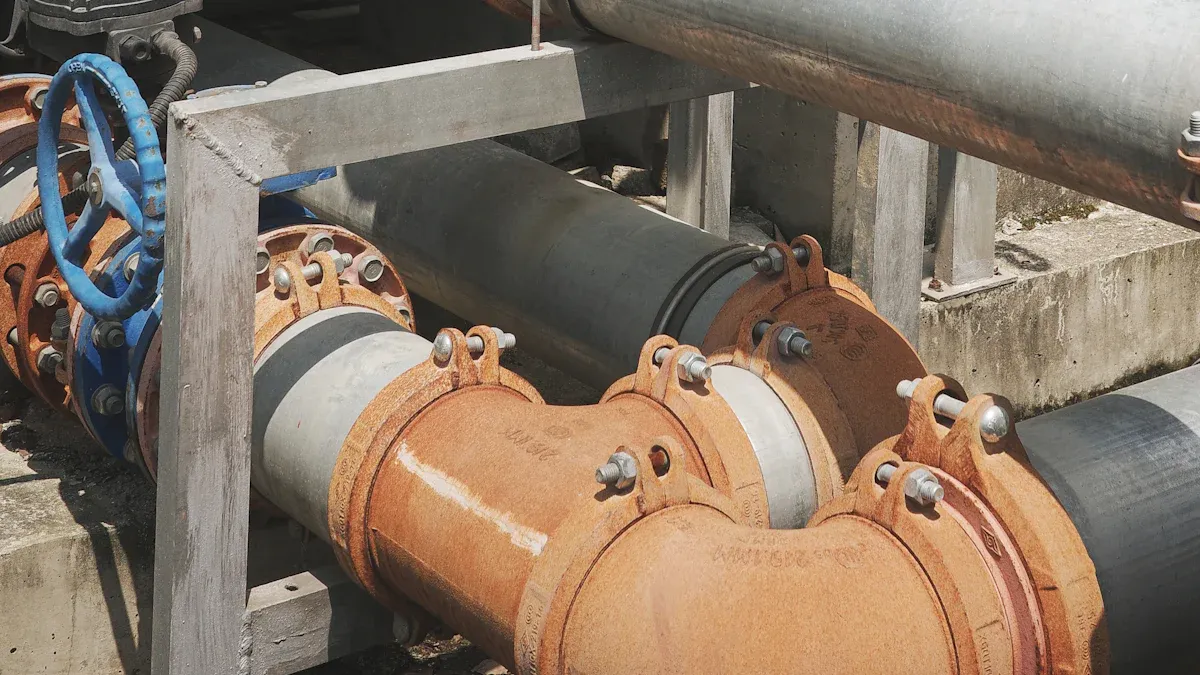

Knife Gate Valve Design for Abrasive Media
NTGD Knife Gate Valve Structure
NTGD engineers design each knife gate valve with a focus on durability in abrasive service environments. The valve body uses high-strength material, often stainless steel or alloy, to resist impact and corrosion. The gate itself features a hardened material surface, which extends the operational life when exposed to slurry, dust, or chemical particles. Modular construction allows for easy replacement of worn parts, such as the seat lining or gate. This modularity supports rapid maintenance and reduces downtime. NTGD valve design also includes options for custom material selection, enabling engineers to match the valve to specific abrasive media. The seat and gate interface uses a hard seal, which maintains tight shutoff even as abrasive particles pass through the valve.
Strengths in Abrasive Applications
A knife gate valve excels in abrasive service due to its robust material selection and engineered sealing surfaces. The hard-faced gate cuts through solids and prevents buildup, while the replaceable seat lining absorbs wear from continuous particle flow. Engineers can specify different material grades for the body, gate, and seat, optimizing the valve for unique process conditions. NTGD valve design supports high-solids pipelines, metallurgy slag, and chemical particle systems. The knife gate valve vs slide gate valve comparison shows that the knife gate valve provides superior isolation and longer service life in abrasive environments. Customization options, such as coatings or reinforced linings, further enhance resistance to erosion and corrosion.
Common Failure Modes
Even with advanced material choices, a gate valve in abrasive service faces several common failure modes:
- Seal leakage may occur when abrasive particles erode the sealing surfaces.
- Gate jamming can result from debris accumulation within the valve body.
- Seat erosion or damage often develops after prolonged exposure to high-velocity solids.
- Corrosion may affect internal material surfaces, especially in harsh chemical environments.
Routine inspection and timely replacement of modular parts help minimize these risks. Engineers rely on NTGD valve design to address these challenges and maintain reliable operation in demanding abrasive service applications.
Slide Gate Valve in Abrasive Applications
NTGD Slide-Type Valve Overview
NTGD engineers design slide-type valves for precise control and isolation in bulk material handling. The slide gate valve uses a flat plate that moves across the flow path to start or stop material movement. This design works well for dry powders, granules, and some fine particles. The NTGD valve design focuses on smooth operation and minimal leakage. Engineers often select these valves for applications where fast actuation and compact installation matter. The construction uses robust materials to handle moderate abrasion, but the main strength lies in handling dry, free-flowing solids.
Advantages and Limitations
The slide gate valve offers several advantages in specific abrasive service valve scenarios. It provides quick shutoff and reliable isolation for dry bulk materials. The compact structure allows installation in tight spaces. Maintenance is straightforward due to the simple mechanism. However, the valve faces limitations in severe abrasive environments. High-velocity slurries or large, sharp particles can erode the sliding plate and seat. The sealing surfaces may wear faster compared to knife gate valve designs. Engineers must consider the media type and particle characteristics before selecting this valve for abrasive service.
Note: For applications with fine, dry powders and moderate abrasion, the slide gate valve delivers efficient performance. In high-solids slurries or aggressive particle flows, engineers often prefer knife gate valve vs slide gate valve options for better durability.
Wear and Maintenance Issues
Wear remains a primary concern for slide-type valves in abrasive service. The sliding plate and seat experience direct contact with moving particles. Over time, this contact can cause surface scoring, seal degradation, and reduced shutoff capability. Engineers recommend regular inspection of the plate and seat for signs of wear. NTGD valve design allows for easy replacement of worn components, which helps extend service life. Preventive maintenance, such as cleaning and timely part replacement, ensures reliable operation. Proper selection and routine care reduce the risk of unexpected downtime in abrasive applications.
Knife Gate Valve vs Slide Gate Valve: Which One for Abrasive Services?
Performance in Slurry and High Solids
Engineers often face the question: knife gate valve vs slide gate valve: which one for abrasive services? In slurry pipelines, metallurgy slag, dust, hot ash, and chemical particle systems, the choice of valve directly affects system reliability and maintenance intervals. NTGD’s T Series knife gate valve demonstrates strong performance in these environments. It handles feed lines with 6-10% solids and moderate line pressures, offering pressure ratings up to 10 bar for smaller sizes. The low friction and simple sealing design allow for easy isolation and cleaning, making it effective for sludge lines and thickened flows.
The following table summarizes the comparative performance metrics:
| Valve Type | Performance Metrics | Suitability for Slurry and High Solids Applications |
|---|---|---|
| T Series Knife Gate Valve | – Pressure Ratings: Up to 10 bar for smaller sizes, limited for larger sizes. | – Ideal for feed lines with 6-10% solids, moderate line pressures. |
| – Low friction and simple sealing for easy isolation and cleaning. | – Can handle moderate levels of abrasive particles. | |
| – Cost-effective for less demanding lines. | – Effective for sludge lines and thickened flows. | |
| Slide Gate Valve | N/A | N/A |
NTGD knife gate valves provide reliable fluid control in abrasive service valve applications. Slide gate valves do not match this performance in high-solids or slurry environments. The knife gate valve vs slide gate valve: which one for abrasive services? The answer remains clear for engineers working with abrasive slurries and solids.
Sealing and Wear Resistance
Sealing and wear resistance are critical in abrasive service valve selection. NTGD knife gate valves use a hard seal and wear-resistant gate, with replaceable linings to extend operational life. The design prevents leakage even as abrasive particles pass through the valve. Engineers can select from a range of materials to enhance durability. NTGD offers customization options such as stainless steel for corrosion and abrasion resistance, high strength nylon for improved wear, polyester fabrics for operational strength, and Kevlar for added tensile strength.
| Material | Benefit |
|---|---|
| Stainless Steel | Provides durability and protection against rust and abrasion. |
| High Strength Nylon | Improves wear resistance and valve longevity. |
| Polyester Fabrics | Maintains strength under operational stress. |
| Kevlar | Adds tensile strength and enhances durability. |
In metallurgy slag, dust, and hot ash applications, the knife gate valve vs slide gate valve: which one for abrasive services? The knife gate valve’s robust sealing and wear-resistant features make it the preferred choice. Slide gate valves, while suitable for dry powders, do not offer the same level of protection against abrasive wear.
Maintenance and Cost
Maintenance and cost considerations play a significant role in valve selection. NTGD knife gate valves feature modular construction, allowing for easy replacement of worn parts such as seat linings and gates. This design reduces downtime and simplifies preventive maintenance. The following table outlines cost considerations:
| Valve Type | Cost Considerations |
|---|---|
| Gate Valves | More expensive in large sizes due to heavier body and thicker walls. |
| Knife Gate Valves | Generally cheaper for larger diameters and easier to maintain in slurry services. |
Engineers find that knife gate valves offer lower long-term maintenance costs in abrasive service valve scenarios. The replaceable components and robust construction minimize the need for frequent repairs. Slide gate valves, while lightweight and easy to maintain in dry bulk applications, do not provide the same cost efficiency in abrasive environments.
NTGD Abrasive Valve Design
Hardened Materials and Coatings
Engineers at NTGD select hardened alloys and advanced coatings to combat abrasion in severe service. They often specify stainless steel or high-chromium materials for gates and seats. These materials resist gouging and surface loss from mineral slurries or ash. NTGD valve design incorporates hard-facing techniques, such as tungsten carbide overlays, to further extend service life. Coatings reduce friction and shield critical surfaces from chemical attack. This approach ensures the knife gate valve vs slide gate valve comparison favors the knife gate type in abrasive environments.
Note: Proper material selection directly impacts the longevity of any abrasive service valve.
Replaceable Seats and Linings
NTGD engineers design valves with modular seats and linings. They use replaceable liners made from wear-resistant polymers or elastomers. This feature allows maintenance teams to swap out worn components without removing the entire valve from the pipeline. The modular approach reduces downtime and lowers long-term maintenance costs. In abrasive service valve applications, replaceable linings absorb the brunt of particle impact and erosion. This design philosophy supports both operational efficiency and safety.
- Key benefits of replaceable seats and linings:
- Quick maintenance turnaround
- Lower spare parts inventory
- Consistent sealing performance
Reliable Actuation for Harsh Media
NTGD valve design addresses actuation challenges in abrasive and high-solids environments. Engineers select actuators with high thrust and corrosion-resistant components. Pneumatic, hydraulic, or electric actuators must deliver consistent force to overcome media buildup and ensure full gate closure. NTGD integrates stem protection and dust covers to prevent ingress of solids. This attention to actuation reliability ensures the valve operates smoothly, even when exposed to slurry, dust, or chemical particles.
Tip: Regular actuator inspection and lubrication help maintain reliable performance in abrasive service valve installations.
Application Scenarios
Slurry, High Solids, and Mining
Engineers encounter abrasive service valve challenges in mining and mineral processing. NTGD valve design supports demanding environments where solids content remains high. Knife gate valve vs slide gate valve comparisons often arise in these settings. Knife gate valves perform reliably in slurry transport and high-solids pipelines. Common applications include:
- Cyclone feed lines
- Flotation circuits
- Concentrate handling
- Tailings discharge
These applications require valves that resist wear and maintain tight shutoff. NTGD knife gate valves provide robust solutions for abrasive slurries and mineral fines. Operators benefit from modular construction and replaceable linings, which reduce downtime and extend service life.
Metallurgy, Dust, and Hot Ash
Metallurgical processes generate dust, slag, and hot ash. These media present significant abrasion risks. NTGD valve design incorporates hardened gates and seats to withstand these harsh conditions. Knife gate valves excel in isolating flows of hot ash and dust-laden gases. Engineers select these valves for slag discharge and dust collection systems. The design prevents leakage and minimizes maintenance in high-temperature environments. Knife gate valve vs slide gate valve selection favors knife gate valves for their durability and sealing performance.
Tip: Regular inspection of the valve seat and gate ensures reliable operation in metallurgy and ash handling applications.
Chemical and Particle Systems
Chemical processing plants often handle abrasive particles and corrosive fluids. NTGD valve design addresses these challenges with advanced materials and coatings. Knife gate valves operate effectively in pipelines carrying chemical granules and aggressive slurries. Engineers use these valves in particle separation, reactor feed, and waste stream isolation. Dry bulk material handling also benefits from slide gate valves in less abrasive scenarios. The choice between knife gate valve vs slide gate valve depends on media properties and abrasion levels. NTGD solutions provide flexibility for a wide range of chemical and particle system applications.
Maintenance Tips for Abrasive Valves
Inspection and Wear Monitoring
Engineers working with abrasive service valves understand the importance of regular inspection. Visual checks for erosion, pitting, and seal integrity help identify early signs of wear. In high-solids applications, operators should monitor the gate and seat surfaces for scoring or material loss. NTGD valve design allows for easy disassembly, making it possible to inspect internal components without removing the valve from the line. In wastewater systems, abrasive particles can accelerate wear, so frequent monitoring ensures reliable operation and prevents unexpected failures.
Spare Parts Planning
Effective spare parts planning reduces downtime and maintains system reliability. Engineers recommend keeping critical components such as gates, seats, and linings in inventory. NTGD valve design features modular parts, which simplifies replacement and minimizes the need for specialized tools. A well-organized spare parts program ensures that maintenance teams can address wear quickly, especially in demanding environments where knife gate valve vs slide gate valve performance is critical. Tracking usage patterns and wear rates helps optimize inventory levels and supports proactive maintenance.
Preventive Maintenance
Preventive maintenance strategies extend the life of abrasive service valves and reduce operational costs. The most effective approaches include:
- Optimizing maintenance intervals based on actual valve condition, not just fixed schedules.
- Addressing minor issues early to prevent major breakdowns and increase equipment longevity.
- Storing valves in clean, dry environments to avoid corrosion and protect seats and seals from contaminants.
NTGD valve design supports these strategies by enabling quick access to wear components and facilitating condition-based maintenance. Regular lubrication of moving parts and inspection of actuators further enhances reliability. By following these practices, engineers ensure that abrasive service valves deliver consistent performance in challenging applications.
Selection Guide: Choosing the Right Valve
Step-by-Step Checklist
Engineers often face the decision of selecting the right valve for abrasive service. The following checklist provides a structured approach for evaluating knife gate valve vs slide gate valve options:
- Identify the Media
Determine if the process involves slurry, high solids, dust, hot ash, or chemical particles. Knife gate valves handle wet, abrasive slurries and high-solids content. Slide gate valves suit dry powders and granules. - Assess Abrasion Severity
Evaluate particle size, hardness, and flow velocity. Severe abrasion requires NTGD valve design with hardened gates and replaceable linings. - Check Sealing Requirements
For tight shutoff in abrasive service, select a knife gate valve with a hard seal. Slide gate valves may not provide reliable sealing in wet or high-solids conditions. - Consider Maintenance Needs
Review access for inspection and part replacement. NTGD knife gate valves offer modular construction for quick maintenance in harsh environments. - Review Actuation and Space Constraints
Confirm if the installation allows for the required actuator type and if space is limited. Slide gate valves offer compactness for dry bulk systems.
Tip: Always match the valve type to the specific abrasive service conditions for optimal performance and longevity.
Flowchart for Valve Selection
Start
↓
Is the media wet, abrasive, or high in solids?
├─ Yes → Select knife gate valve (NTGD valve design with wear-resistant features)
└─ No
↓
Is the media dry powder or granules with low abrasion?
├─ Yes → Select slide gate valve
└─ No → Consult NTGD for custom abrasive service valve solution
This flowchart helps engineers quickly determine the best valve for each abrasive service scenario. Knife gate valves remain the preferred choice for most abrasive and high-solids applications, while slide gate valves fit dry, low-abrasion duties.
NTGD knife gate valves usually offer the best performance for abrasive service valve applications. Engineers value their robust NTGD valve design and wear resistance. Slide gate valves may suit dry, low-abrasion duties. Selection depends on media and system needs. NTGD provides tailored solutions for unique requirements:
| Customization Aspect | Description |
|---|---|
| Tailored Dimensions | Valves fit unique system requirements. |
| Specialized Coatings | Options for anti-corrosion and high-temperature resistance. |
| Application-Specific Designs | Designs for specialized uses, such as precision irrigation. |
Consult NTGD for expert advice on knife gate valve vs slide gate valve selection.
FAQ
What makes NTGD knife gate valves suitable for abrasive service valve applications?
NTGD valve design uses hardened gates and replaceable linings. These features resist wear from slurries, dust, and chemical particles. Engineers prefer this design for reliable isolation and long service life in abrasive environments.
How does a knife gate valve vs slide gate valve perform in slurry pipelines?
Knife gate valves cut through thick slurries and high solids. Slide gate valves handle dry powders better. For abrasive service valve needs in slurry pipelines, engineers select knife gate valves for superior sealing and durability.
Can NTGD knife gate valves be customized for specific abrasive media?
Yes. NTGD valve design offers material and coating options. Engineers can specify stainless steel, high-chromium alloys, or special linings. This customization matches the valve to the exact abrasive media and process conditions.
What maintenance steps extend the life of abrasive service valves?
Engineers recommend regular inspection of gates and seats. They replace worn linings and lubricate actuators. NTGD valve design allows quick part replacement, which reduces downtime and keeps abrasive service valves operating reliably.
When should engineers choose a slide gate valve over a knife gate valve?
Engineers select slide gate valves for dry, free-flowing powders or granules with low abrasion. Knife gate valve vs slide gate valve comparisons show slide gates work best where liquid or high-solids slurries are not present.
