The NTGD unidirectional knife gate valve delivers precise flow control for demanding industrial environments. Its robust, uni-directional design ensures reliable shutoff and resists common issues like clogging and leakage. Industries worldwide choose this solution to minimize maintenance and downtime. The global market for these valves continues to expand, with projections reaching $3.5 billion by 2029 and a steady 6% CAGR. Operators benefit from a valve that tackles fugitive emissions and seal failures, outperforming conventional options in both safety and efficiency.

Key Features

• The NTGD unidirectional knife gate valve provides precise flow control, making it ideal for tough industrial environments.
• Its robust design minimizes clogging and leakage, reducing maintenance needs and downtime for operators.
• Operators can choose from various materials and actuation options to match their specific process requirements.
• The valve’s sharp-edged gate effectively handles thick and abrasive materials, ensuring reliable shutoff.
• Regular maintenance and proper installation are crucial for optimal performance and longevity of the valve.

Unidirectional Knife Gate Valve

Design Overview

A unidirectional knife gate valve features a single-seat, one-way shutoff design that sets it apart from other valve types. This configuration allows the valve to control flow in only one direction, making it essential to install the valve in alignment with the intended flow path. The uni-directional knife gate valve uses a wedge block mechanism to achieve tight sealing, which provides effective isolation for pipelines carrying challenging media.

Manufacturers offer several body designs to suit different installation requirements:

• Wafer design: Compact and lightweight, ideal for systems with limited space.
• Semi-lug design: Offers additional strength and easier alignment during installation.
• Monoblock design: Provides robust construction for high-demand applications.

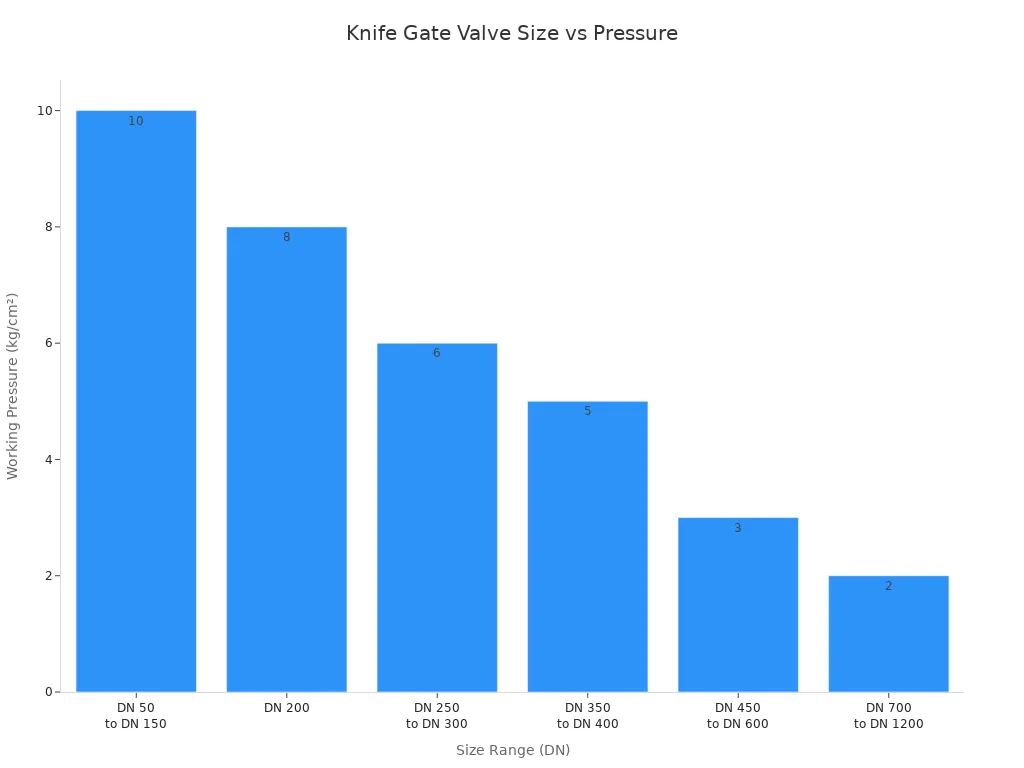

Operators can select from a wide range of sizes and pressure ratings to match their process needs. The following table summarizes typical size and pressure ranges available for industrial applications:

This range ensures that the knife gate valve can handle both low and high-pressure systems, making it suitable for a variety of industries.

How It Works

The uni-directional knife gate valve operates by moving a sharp-edged gate through the flow path to cut through solids and provide a reliable shutoff. The single-seat design ensures that the valve seals tightly when closed, preventing backflow and minimizing leakage. This mechanism is especially effective for applications where isolation of abrasive or solid-laden fluids is critical.

Note: Proper installation is crucial for optimal performance. The valve must face the correct flow direction to ensure effective sealing and avoid premature wear.

The functional differences between a unidirectional and a bi-directional knife gate valve include:

• Unidirectional knife gate valves allow flow in only one direction, requiring careful installation to align with the flow direction.
• They utilize a wedge block mechanism for sealing, which can lead to sealing failures when solid particles are present.
• Bi-directional knife gate valves can accommodate flow in both directions, providing greater flexibility in installation and operation.
• They employ two movable valve seats and elastic sealing strips, ensuring reliable sealing under higher pressures.

The uni-directional design offers a streamlined solution for processes that demand precise flow control and robust isolation. Its construction minimizes the risk of clogging and reduces maintenance needs, making it a preferred choice for challenging industrial environments.

Uni-directional Knife Gate Valve Features

Construction Materials

Manufacturers design the uni-directional knife gate valve with durability and performance in mind. The valve body often uses a single-piece cast construction, which enhances structural integrity and minimizes potential leak paths. This robust design supports reliable operation in harsh industrial environments.

Operators can select from a range of materials to match process requirements. Common options include stainless steel, carbon steel, and ductile iron. These materials resist corrosion and abrasion, extending the service life of the knife gate valve. For applications involving aggressive chemicals or high temperatures, specialty alloys provide additional protection.

The valve seat can be customized to suit the media. Resilient seats, such as EPDM or PTFE, offer excellent sealing for slurry and corrosive fluids. Metal seats withstand high temperatures and abrasive conditions. Many uni-directional knife gate valves feature a self-draining design, which prevents media buildup and reduces the risk of contamination. Some models include a lubricant port, allowing for easy maintenance and smoother gate movement.

Temperature and pressure ratings reflect the valve’s robust construction. The following table highlights typical values for heavy industry:

High-performance models operate at temperatures from -29°C (-20°F) to 260°C (500°F). Metal seated versions handle pressures up to PN 40 (600 psi) and temperatures as high as 450°C (842°F).

Tip: Selecting the right construction material and seat type ensures optimal performance and longevity for your knife gate valve.

Sealing Technology

Reliable sealing stands at the core of every unidirectional knife gate valve. Engineers employ several advanced technologies to achieve leak-tight performance, even under high pressure:

• Elastomer seats attach to the valve body on the flow-out side. When the gate lowers, it compresses the seat, forming a tight seal.
• The gate edge features a rounded or beveled design. This minimizes seat damage and reduces friction, which extends the life of both the gate and seat.
• A packing gland at the top of the valve body compresses materials like PTFE or graphite around the gate or stem. This prevents leakage along the stem, even during frequent cycling.
• Metal or resilient material gaskets further enhance sealing, preventing media leakage and improving operational efficiency.

The uni-directional knife gate valve uses a sharply beveled blade to slice through thick and abrasive materials. This design minimizes turbulence and flow restrictions, which often cause blockages in traditional valves. By providing a clear, unobstructed pathway when open, the valve ensures reliable shutoff in systems handling slurry or solid-laden fluids. This non-clogging shutoff capability sets it apart from a bi-directional knife gate valve, especially in applications where isolation of challenging media is critical.

Actuation Options

Operators can choose from several actuation options to match their process needs and improve operational efficiency. The table below summarizes the main choices:

Manual actuation provides straightforward control for smaller valves or less frequent operation. Pneumatic and hydraulic actuators deliver rapid, powerful movement, ideal for large or high-pressure installations. Electric actuators enable seamless integration into automated process control systems, reducing manual intervention and supporting remote operation.

Note: Choosing the right actuation method can significantly boost productivity and reduce maintenance costs.

The unidirectional knife gate valve combines robust construction, advanced sealing technology, and flexible actuation options. These features ensure precise flow control, reliable isolation, and minimal downtime in the most demanding industrial applications.

Flow Control

Precision Regulation

A knife gate valve delivers accurate and reliable flow control, even in the most challenging process conditions. The unidirectional design ensures that operators can regulate flow with confidence, minimizing the risk of process interruptions. Engineers select this valve for its ability to handle suspended solids and viscous media without compromising performance. The uni-directional knife gate valve features a sharp-edged gate that moves smoothly through the flow path, providing precise modulation and reducing turbulence.

Key engineering features contribute to this precision. Proper gate alignment prevents uneven wear and ensures consistent operation. A polished gate surface reduces friction, allowing for smoother movement and less risk of jamming. The valve’s construction materials, such as carbon steel and stainless steel, offer durability and resistance to corrosion. These attributes enable the knife gate valve to maintain stable performance across variable temperatures and pressures.

Operators rely on the uni-directional knife gate valve for applications where precise regulation and dependable isolation are essential.

Shutoff Performance

The knife gate valve stands out for its shutoff capabilities. The unidirectional seat design creates a tight seal, minimizing leakage and ensuring process integrity. In comparison to a bi-directional knife gate valve, the uni-directional model excels in applications where flow direction remains constant and reliable isolation is critical.

Leakage rates for knife gate valves typically remain moderate, with small leakage possible under certain conditions. However, the advanced sealing technology in the unidirectional knife gate valve reduces this risk. The table below compares sealing capabilities:

A resilient seat and optimized packing gland further enhance shutoff performance. These features help maintain minimal leakage, even during frequent cycling or exposure to abrasive media. The uni-directional knife gate valve provides operators with the confidence to maintain process safety and efficiency, supporting demanding industrial environments.

Advantages

Durability

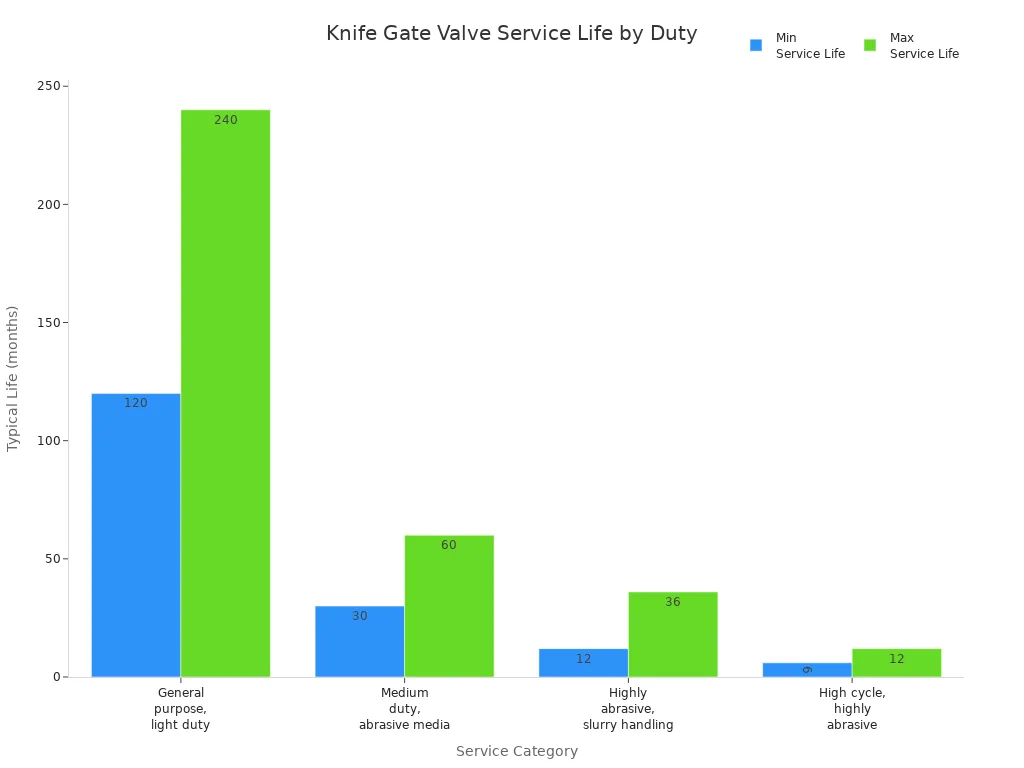

NTGD engineers the knife gate valve for exceptional durability in harsh industrial environments. The single-piece cast body and robust seat materials withstand abrasive and corrosive media, ensuring long-term reliability. Operators in mining, wastewater, and chemical processing benefit from extended service life, even under severe conditions. The following table highlights typical service life across various applications:

This durability translates to fewer replacements and lower total cost of ownership. The unidirectional knife gate valve consistently outperforms a bi-directional knife gate valve in applications where flow direction remains constant.

Clog Resistance

The uni-directional knife gate valve excels in handling fluids with high solid content. Its sharp-edged gate slices through thick media, while the smooth flow path minimizes material buildup. This design prevents clogging and ensures reliable isolation, even in challenging conditions.

• Designed for on-off isolation of fluids with high solid content, such as sludge or sewage.
• Offers reliable isolation even in challenging conditions.
• Used in applications where other valves might fail due to clogging.

The structure of body and seat eliminates clogging shutoff for flow with fine particles. Additionally, beveled knife edge helps the gate cut through thick media easily.

Maintenance

NTGD knife gate valves simplify maintenance, reducing downtime and operational costs. The uni-directional design allows for in-line servicing, which can cut downtime by up to 95%. Annual maintenance costs may decrease by as much as 60%, with some procedures completed in just 12 minutes.

• Scheduled maintenance plans maximize uptime.
• Lubricate moving parts every three months.
• Clean the valve after use to prevent residue damage.
• Replace seals annually if leakage is detected.

The unidirectional knife gate valve stands out for its resistance to abrasive and solid media, ease of maintenance, and suitability for harsh environments. Operators experience extended service life and reliable performance in demanding applications.

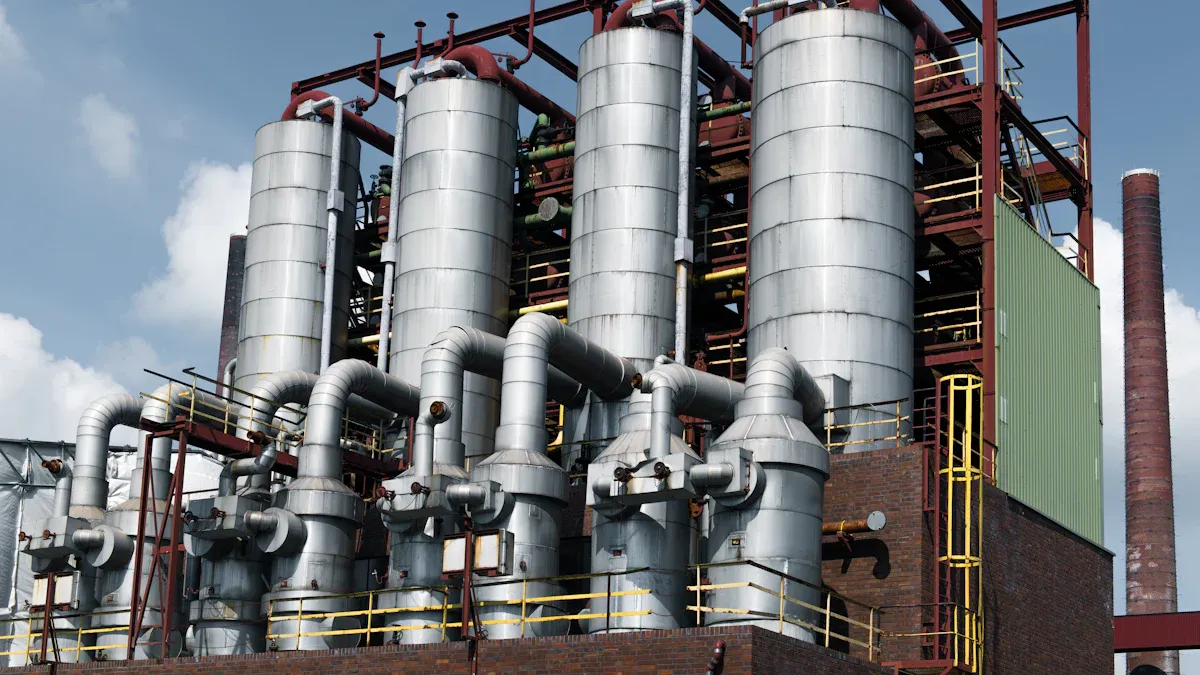

Knife Gate Valve Applications

Mining

Mining operations demand robust solutions for abrasive slurries and high-solid content fluids. The knife gate valve stands out in these environments, providing reliable isolation and minimizing downtime. Operators in potash, salt, and phosphate mines use these valves for loading, discharge, and hydrocyclone applications. The following table highlights real-world mining uses:

These applications show how the unidirectional knife gate valve delivers consistent performance in harsh mining conditions.

Wastewater

Wastewater treatment plants rely on the knife gate valve for managing sludge, grit, and other challenging media. The sharp-edged gate ensures a clean shutoff, preventing leaks and clogs that disrupt operations. This design minimizes downtime and enhances process reliability. Operators in wastewater facilities trust these valves to maintain efficient flow control, even when handling high-solid content or corrosive fluids. The knife gate valve supports high flow rates and recycling processes, making it essential for modern wastewater management.

The knife gate valve provides reliable isolation and leak prevention in wastewater treatment plants, supporting uninterrupted operations and reducing maintenance needs.

Pulp & Paper

The pulp and paper industry faces unique challenges with fibrous slurries and abrasive particles. The knife gate valve features a rugged, single-piece cast body and a beveled gate edge, ensuring positive closure even with settled solids. The table below outlines key features for pulp and paper applications:

This design ensures the knife gate valve maintains consistent flow and reduces leakage, outperforming a bi-directional knife gate valve in these demanding settings.

Other Industries

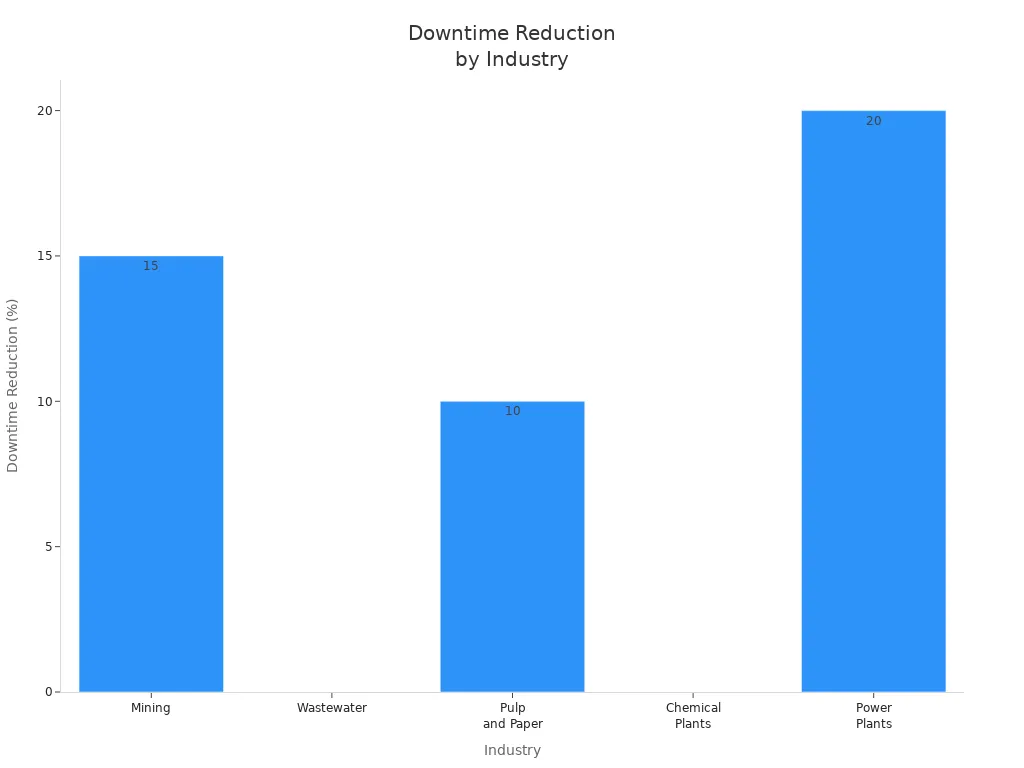

Many industries benefit from the knife gate valve, including chemical plants and power generation. The table below summarizes key applications and benefits:

The knife gate valve adapts to a wide range of fluids, including those with solids, high flow rates, and recycling requirements. Operators can select pneumatic knife gate valve or slurry knife gate valve options for specialized needs. Wastewater treatment plants, mining, and pulp and paper facilities all benefit from the unidirectional design, which ensures reliable isolation and process efficiency.

Why NTGD?

Quality Assurance

NTGD stands at the forefront of the knife gate valve industry by prioritizing quality at every stage of production. The company implements rigorous quality control measures, ensuring each knife gate valve meets demanding industrial standards. NTGD holds several internationally recognized certifications, which demonstrate its commitment to excellence:

These certifications guarantee that every high performance knife gate valve delivers consistent reliability, safety, and environmental responsibility. Customers trust NTGD to provide valves that maintain process integrity and deliver dependable isolation in critical applications.

Customization

NTGD understands that every process presents unique challenges. The company offers a wide range of customization options for its knife gate valve lineup. Customers can select from various body materials, seat types, and actuation methods to match their specific requirements. Whether the application demands a pneumatic knife gate valve for automated systems or a slurry knife gate valve for abrasive media, NTGD provides tailored solutions. Engineers work closely with clients to design valves that optimize flow control, minimize downtime, and ensure seamless integration into existing systems.

NTGD’s customization capabilities help operators achieve peak efficiency and adapt to changing process needs.

Support

NTGD delivers comprehensive support throughout the product lifecycle. The technical team assists with valve selection, installation, and ongoing maintenance. Customers receive prompt responses to inquiries and benefit from expert guidance on troubleshooting and optimization. NTGD’s commitment to after-sales service ensures that each knife gate valve continues to perform at the highest level. Operators experience reduced maintenance costs and improved uptime, knowing that support is always available.

NTGD’s dedication to quality, customization, and support positions the company as a trusted partner for industries seeking reliable knife gate valve solutions.

NTGD’s Unidirectional Knife Gate Valve delivers reliable performance in the most demanding environments. Key benefits include:

• Enhanced durability for tough industrial use
• Versatility across many applications
• Tight seal to prevent leakage
• Easy maintenance with replaceable seats and seals
• Custom solutions in various sizes and materials

NTGD helps operators achieve precise flow control and long-term efficiency.

For technical consultation or product inquiries, contact NTGD through the following channels:

FAQ

What makes the Unidirectional Knife Gate Valve ideal for abrasive media?

The Unidirectional Knife Gate Valve uses a sharp-edged gate and robust seat materials. This design resists wear from abrasive slurries and solids. Operators experience fewer failures and longer service life in tough environments.

Can the Unidirectional Knife Gate Valve handle high-pressure applications?

Yes. NTGD engineers the Unidirectional Knife Gate Valve for high-pressure systems. The single-seat construction and advanced sealing technology maintain tight shutoff, even under demanding pressure conditions.

How does the Unidirectional Knife Gate Valve reduce maintenance costs?

The valve features a single-piece cast body and replaceable seats. These elements simplify maintenance. In-line servicing and easy access to components minimize downtime and lower operational expenses.

What actuation options are available for the Unidirectional Knife Gate Valve?

NTGD offers manual, pneumatic, hydraulic, and electric actuation. Each option supports different process needs. Automated actuation improves productivity and integrates with modern control systems.

How can operators request a custom Unidirectional Knife Gate Valve solution?

Operators can contact NTGD’s technical team by phone or email. The team provides expert consultation and tailors the Unidirectional Knife Gate Valve to specific process requirements.
